Front Fender Replacement (Equinox)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

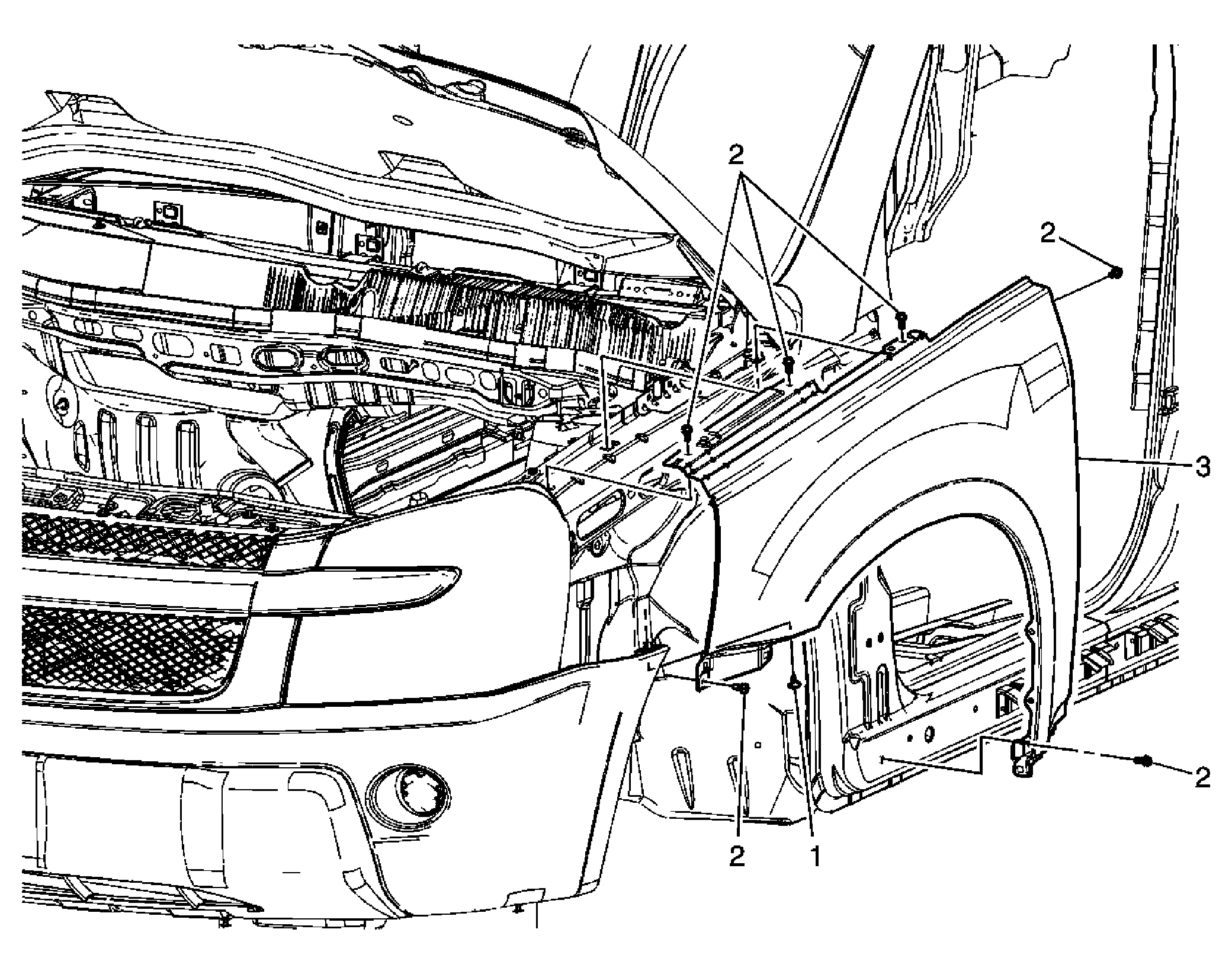

Fig 1: View Of Front Fender (Equinox)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Loosen the front of the rocker molding enough to gain access to the front fender bolt. Loosen the front fascia assembly in order to gain access to and remove the lower front bolt.
1	Front Fender Screw CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Front Fender Bolt (Qty: 6) Tighten: 10 N.m (89 lb in)
3	Front Fender Assembly
