Radio Front Side Door Upper Speaker Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

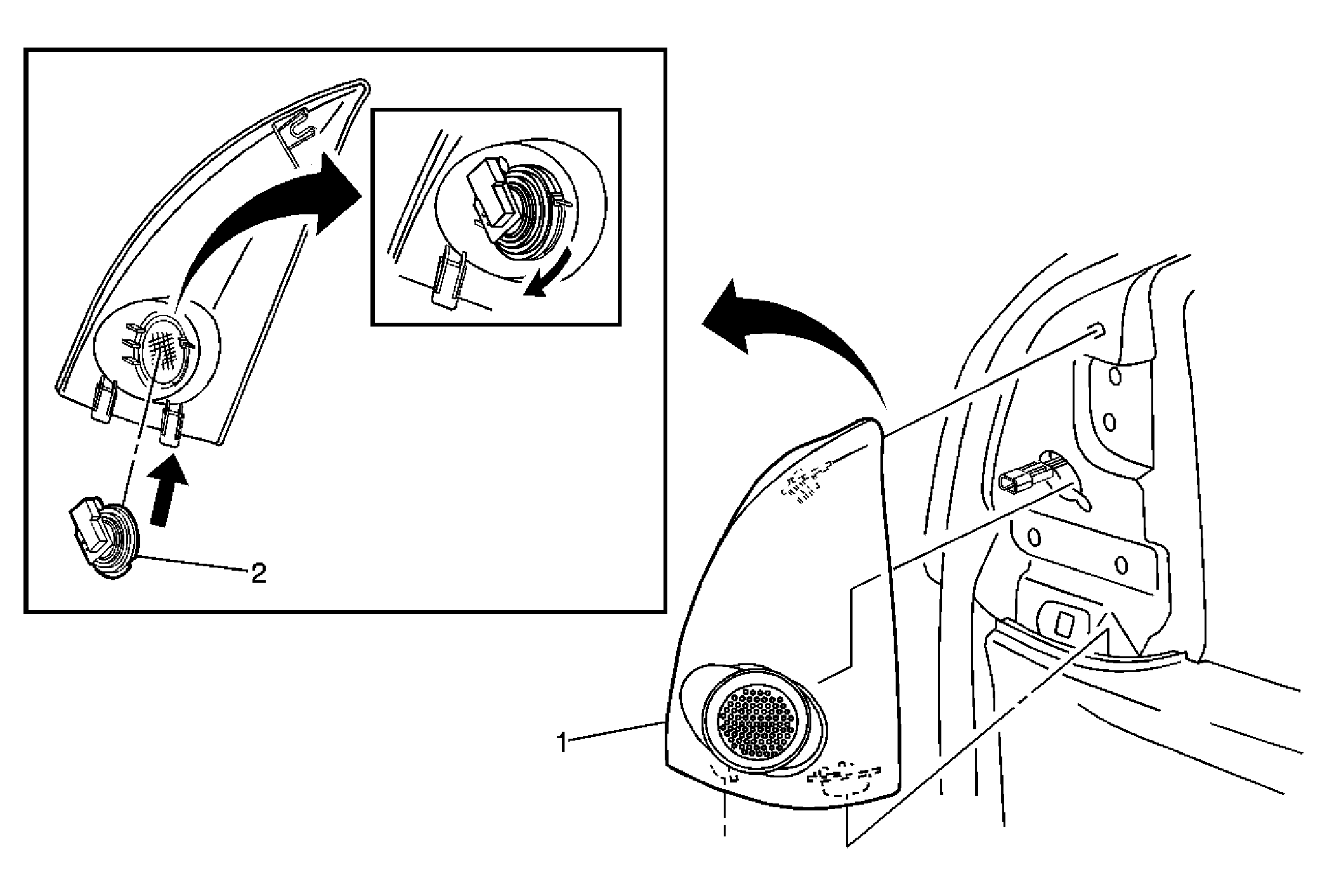

Fig 1: View Of Radio Front Side Door Upper Speaker

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Door Trim Panel Upper Extension Procedure Pull at the top of the trim panel to disengage the trim clip. Lift up to remove the lower tabs from behind the door trim. Disconnect the speaker wiring harness.
2	Front Door Upper Speaker Procedure: Rotate and remove the tweeter from the trim panel.

Callout

Component Name

Front Door Trim Panel Upper Extension

Procedure

Pull at the top of the trim panel to disengage the trim clip.
Lift up to remove the lower tabs from behind the door trim.
Disconnect the speaker wiring harness.

Front Door Upper Speaker
Procedure:
Rotate and remove the tweeter from the trim panel.
