Digital Radio Antenna Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

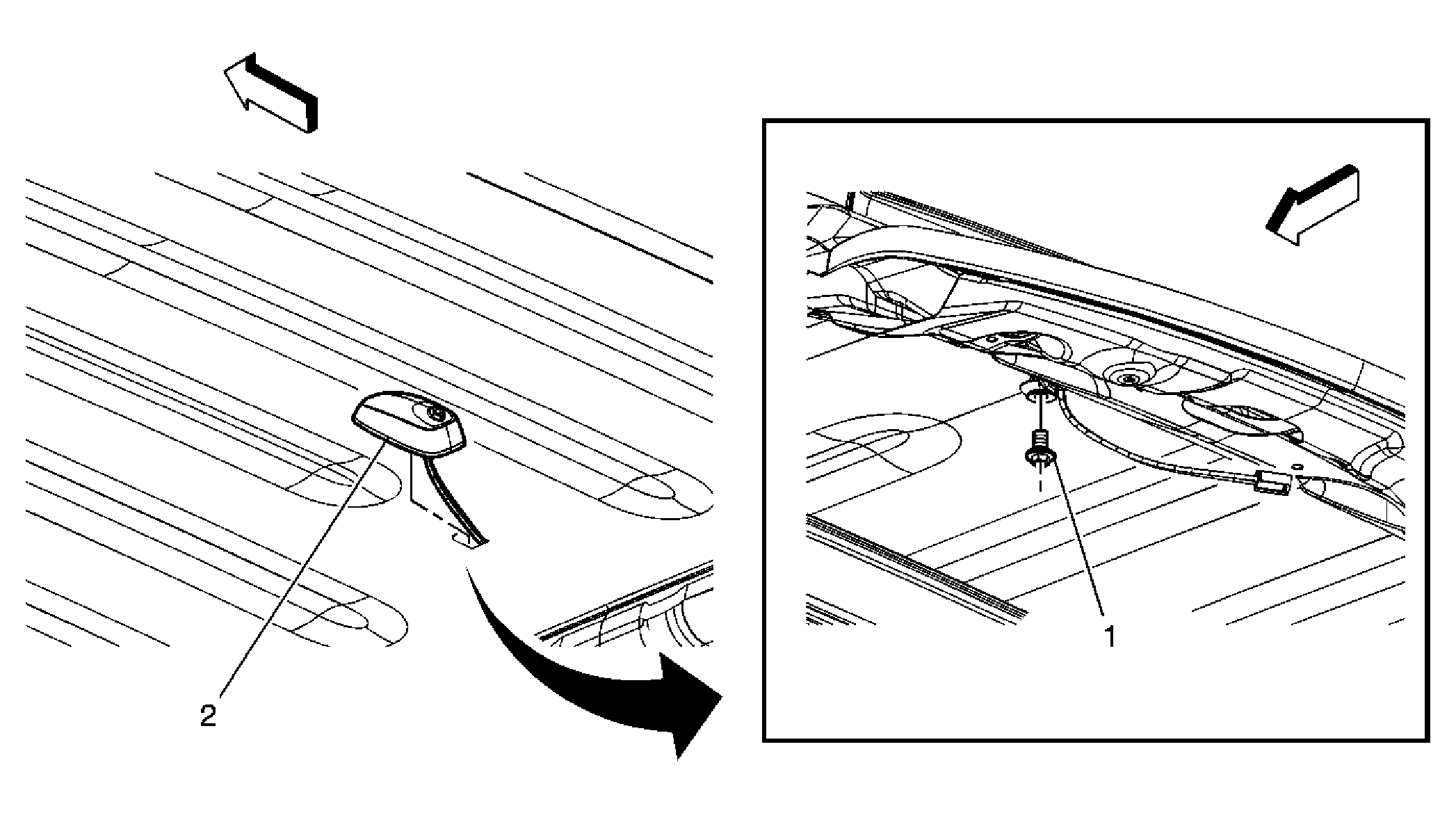

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Lower the rear of the headliner. Refer to Headlining Trim Panel Replacement . |
|
| 1 | Digital Radio Antenna Base Bolt
CAUTION:
Refer to Fastener Caution
.
Tighten: 5 N.m (44 lb in) |
| 2 | Digital Radio Antenna Base Assembly Tip: Disconnect the electrical connections. |
