Digital Radio Antenna Cable Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

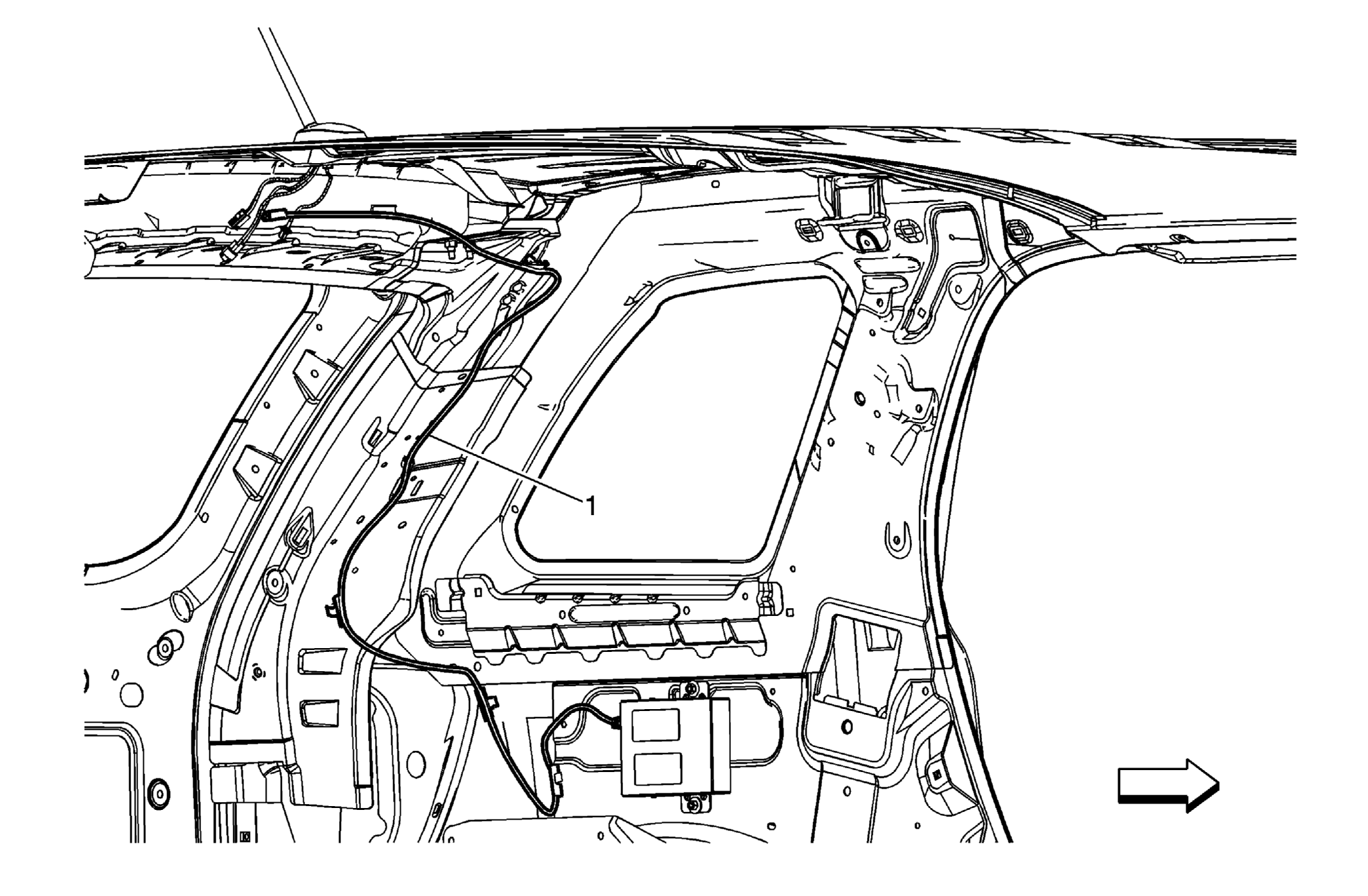

Fig 1: Identifying Digital Radio Antenna Cable

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Lower the rear of the headliner. Refer to Headlining Trim Panel Replacement .
1	Digital Radio Coaxial Cable Procedure Disconnect all electrical/antenna connections. If the old antenna is wrapped in the wiring harness, just cut the ends off and route the new harness next to the old one and secure it with tie straps.

Callout

Component Name

Preliminary Procedure:
Lower the rear of the headliner. Refer to Headlining Trim Panel Replacement .

Digital Radio Coaxial Cable

Procedure

Disconnect all electrical/antenna connections.
If the old antenna is wrapped in the wiring harness, just cut the ends off and route the new harness next to the old one and secure it with tie straps.
