Removal Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

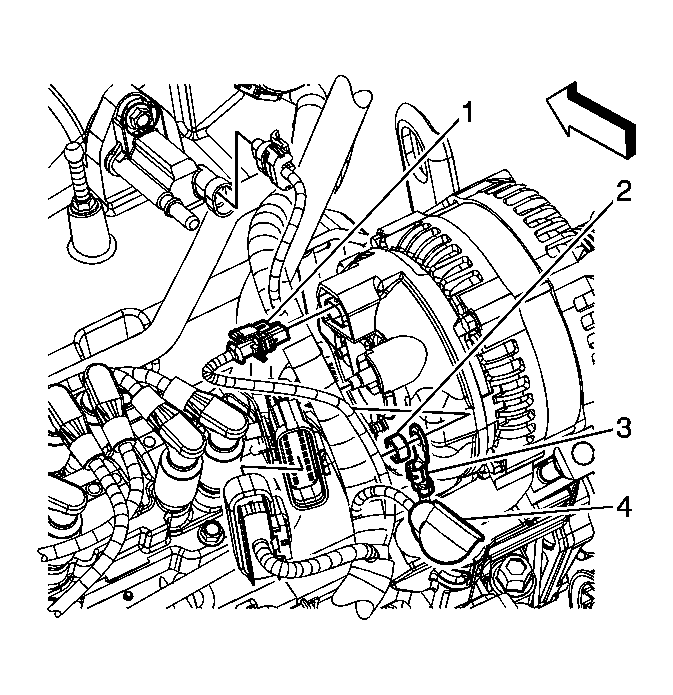

    Fig 1: Identifying Engine Wiring Harness Electrical Connector, Terminal Lead & Harness Boot
    GM1916762Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the drive belt. Refer to Drive Belt Replacement .
  3. Disconnect the engine wiring harness electrical connector (1) from the generator.
  4. Reposition the engine wiring harness boot (4).
  5. Remove the generator terminal nut (2).
  6. Remove the engine wiring harness terminal lead (3) from the generator.

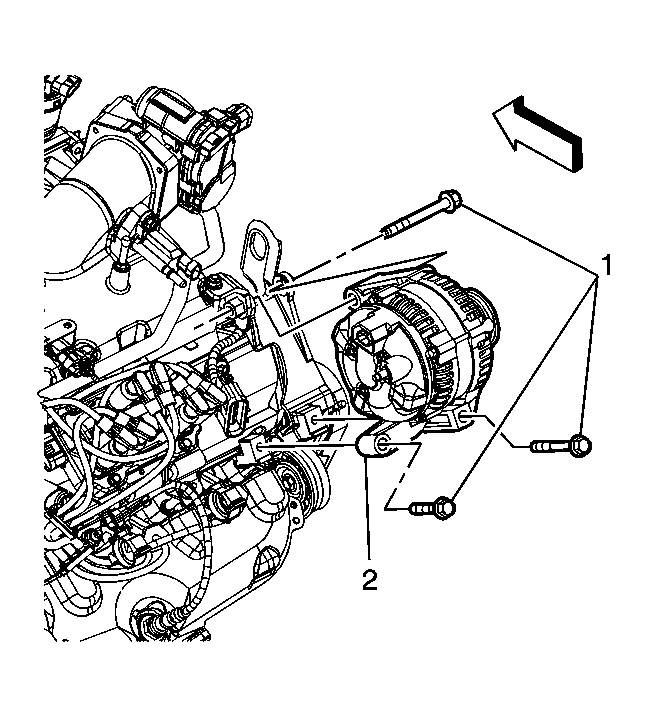

    7. Fig 2: Identifying Generator & Bolts
    GM1916766Courtesy of GENERAL MOTORS CORP.
  7. Remove the generator bolts (1).
  8. Remove the generator (2).
