Removal Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

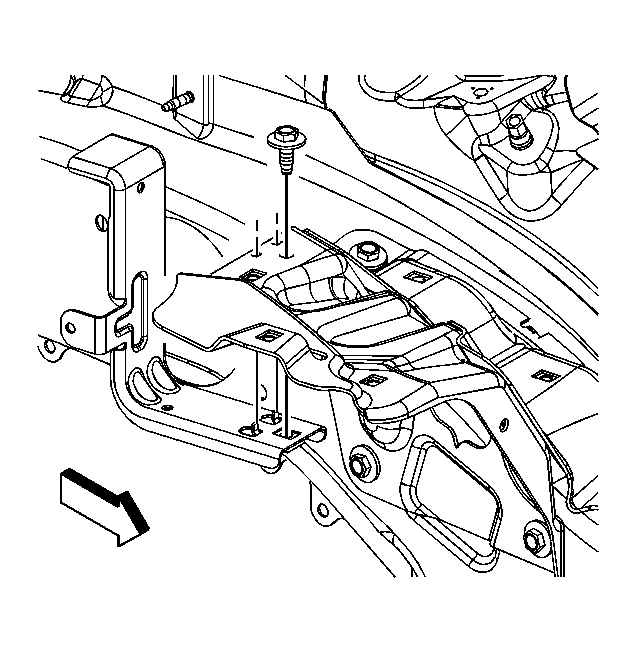

    Fig 1: View Of Battery Tray Support Bracket Bolt
    GM1822642Courtesy of GENERAL MOTORS CORP.
  1. Remove the battery box. Refer to Battery Box Replacement .
  2. Remove the battery tray support bracket bolt at the multiuse relay and fuse bracket.

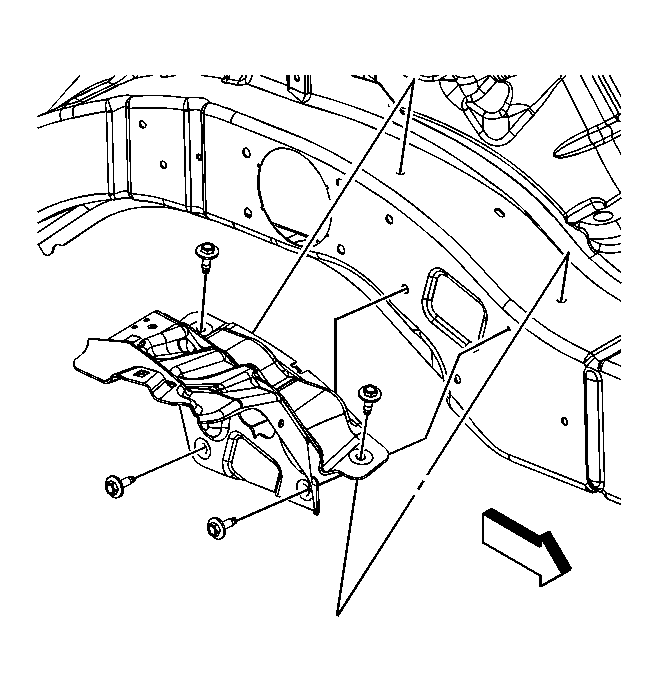

    3. Fig 2: View Of Battery Tray Support Bracket
    GM1822646Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery tray support bracket bolts.
  4. Remove the battery tray support bracket.
