Instrument Panel Center Air Outlet Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

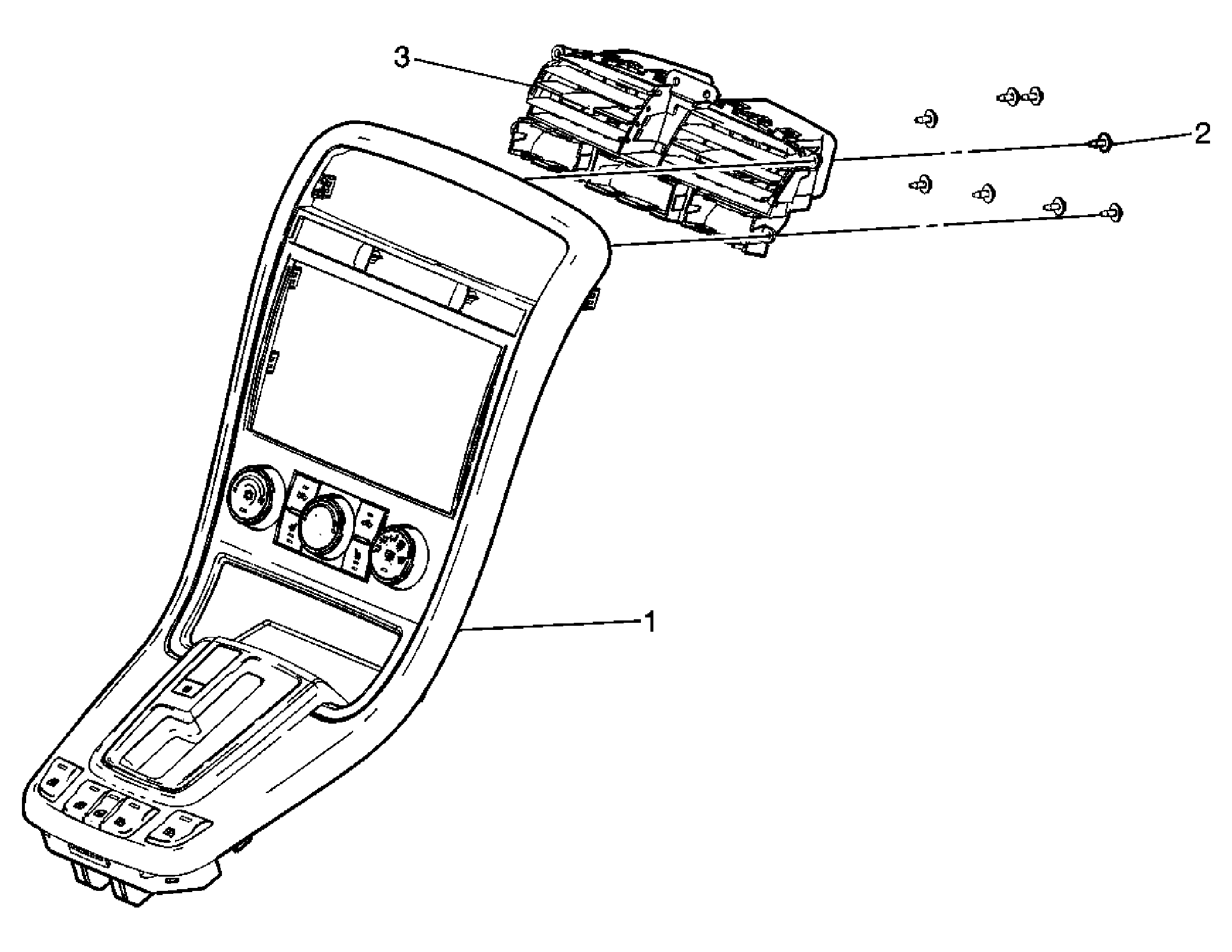

Fig 1: View Of Center Instrument Panel Center Air Outlet
GM1726227Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Accessory Trim Bezel
Refer to Instrument Panel Accessory Bezel Replacement .
2 Instrument Panel Center Air Outlet Screw (Qty: 8)
CAUTION: Refer to Fastener Caution .

Tighten:  2 N.m (18 lb in)
3 Instrument Panel Center Air Outlet
