Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (LY7)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

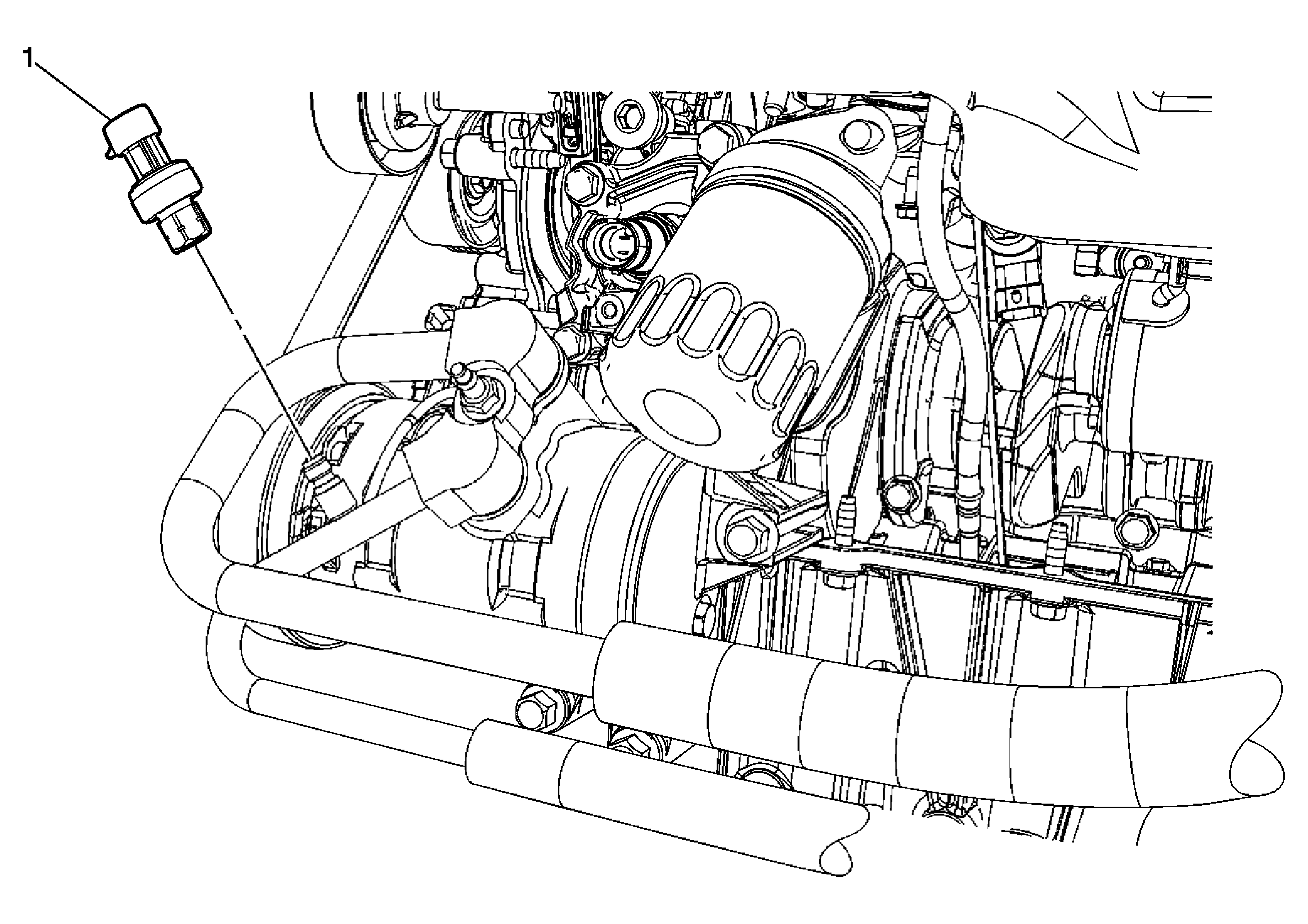

Fig 1: Identifying A/C Refrigerant Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Disconnect the electrical connector from the refrigerant pressure sensor.
1	A/C Refrigerant Pressure Sensor CAUTION: Refer to Fastener Caution . Procedure Remove the refrigerant pressure sensor from the compressor hose. Hand start the refrigerant pressure sensor to the compressor hose, taking care not to pinch the O-ring and tighten. Tip: Lubricate the refrigerant pressure sensor O-ring with mineral oil. Refer to O-Ring Replacement . Tighten: 4 N.m (35 lb in)

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Disconnect the electrical connector from the refrigerant pressure sensor.

A/C Refrigerant Pressure Sensor

CAUTION: Refer to Fastener Caution .

Procedure

Remove the refrigerant pressure sensor from the compressor hose.
Hand start the refrigerant pressure sensor to the compressor hose, taking care not to pinch the O-ring and tighten.

Tip: Lubricate the refrigerant pressure sensor O-ring with mineral oil. Refer to O-Ring Replacement .

Tighten: 4 N.m (35 lb in)
