Exterior Lights Schematics

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

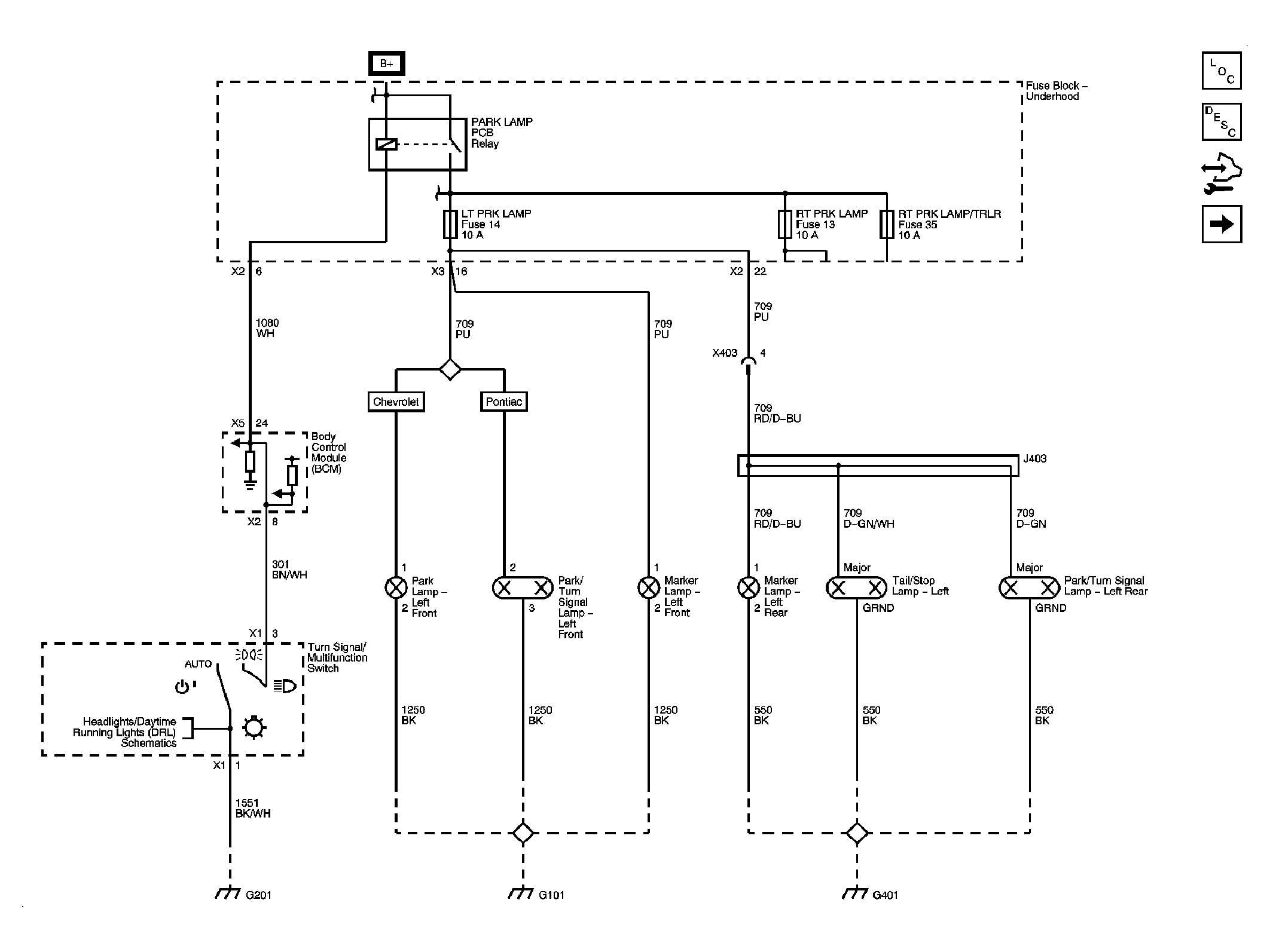

Fig 1: Left Park Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

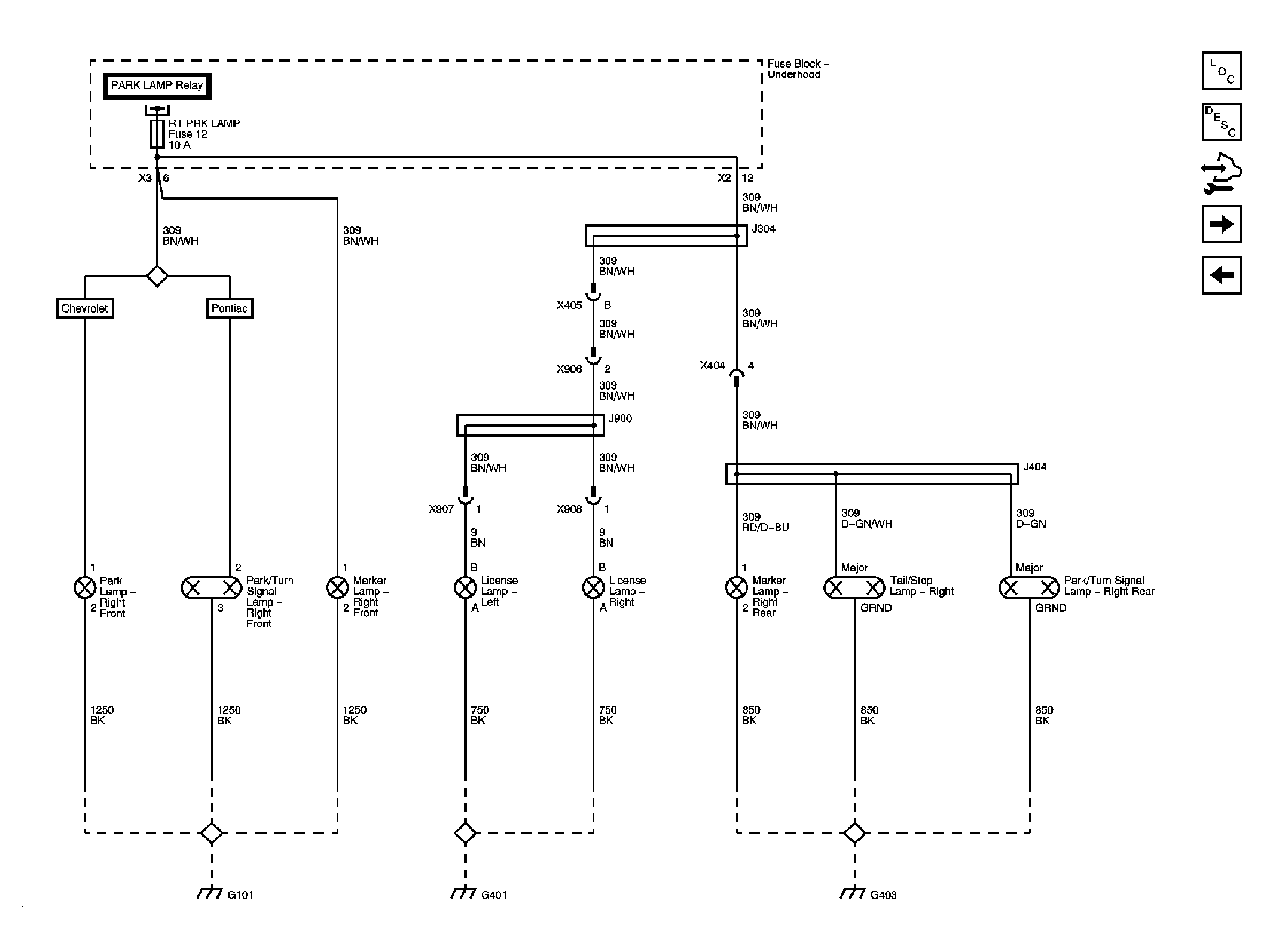

Fig 2: License Lamps, Right Park Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

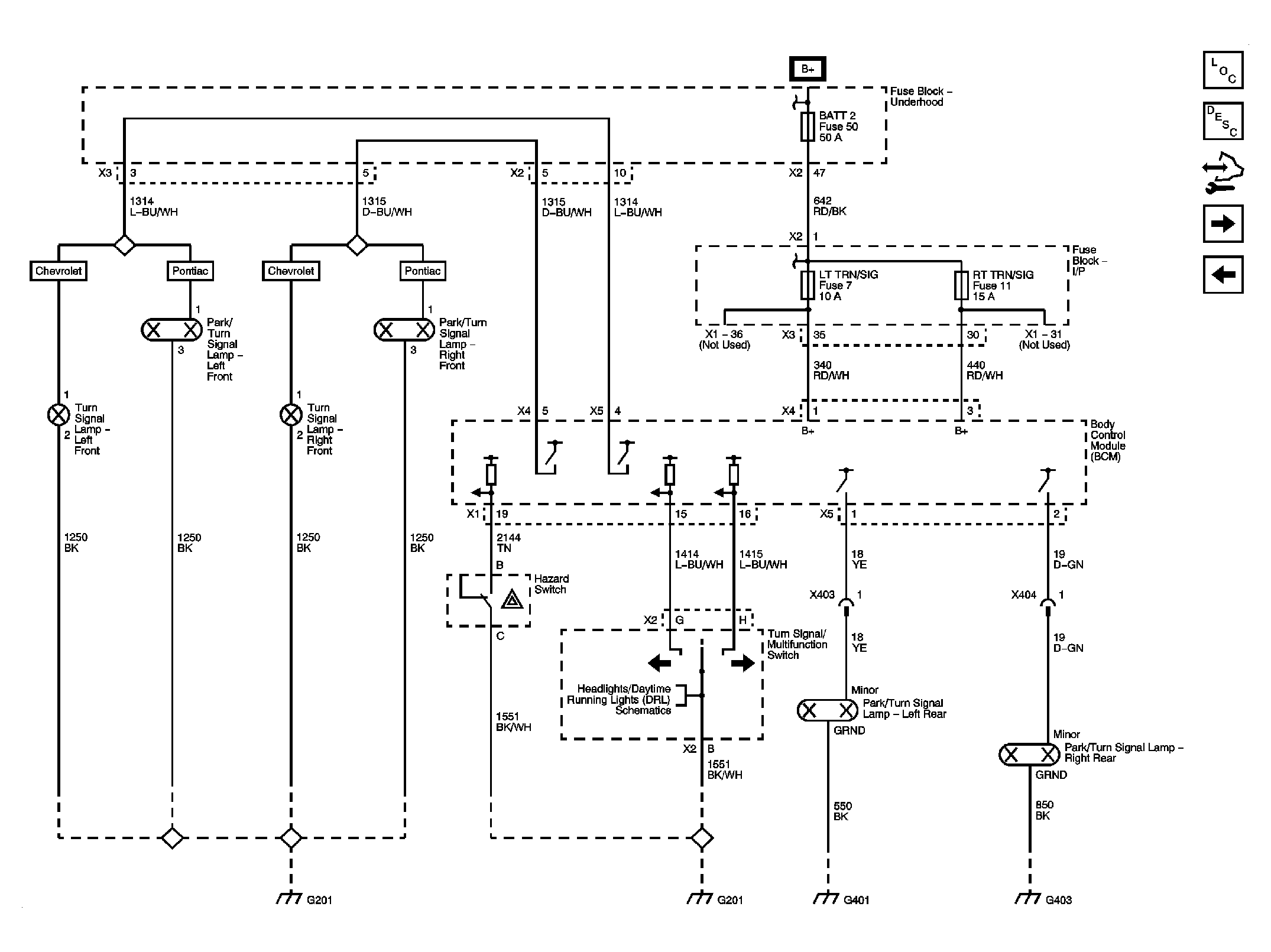

Fig 3: Turn Signal Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

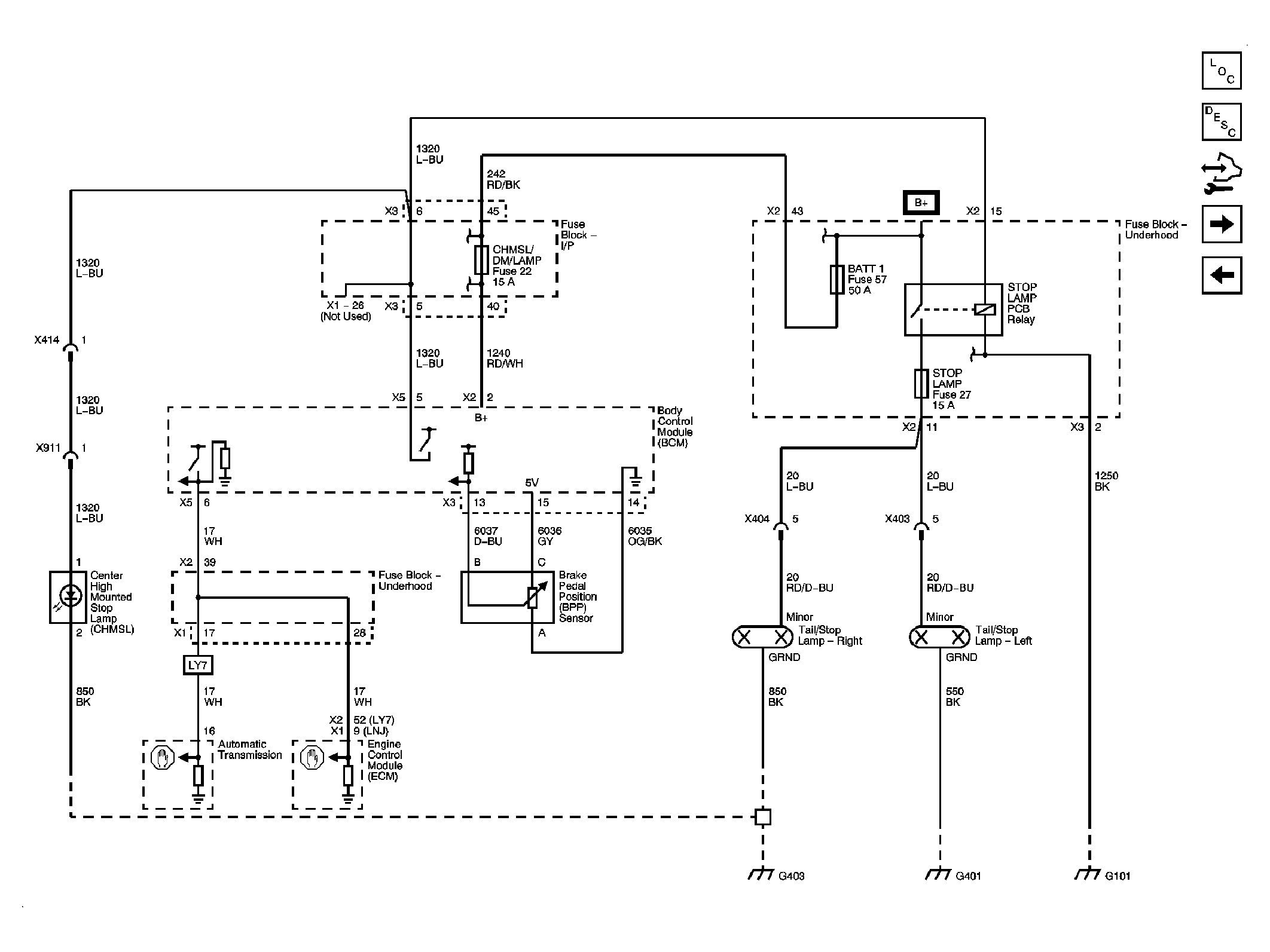

Fig 4: Stop Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 5: Backup Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Trailer Tow Connector Schematic

Courtesy of GENERAL MOTORS CORP.
