Rear License Plate Lamp Bulb Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

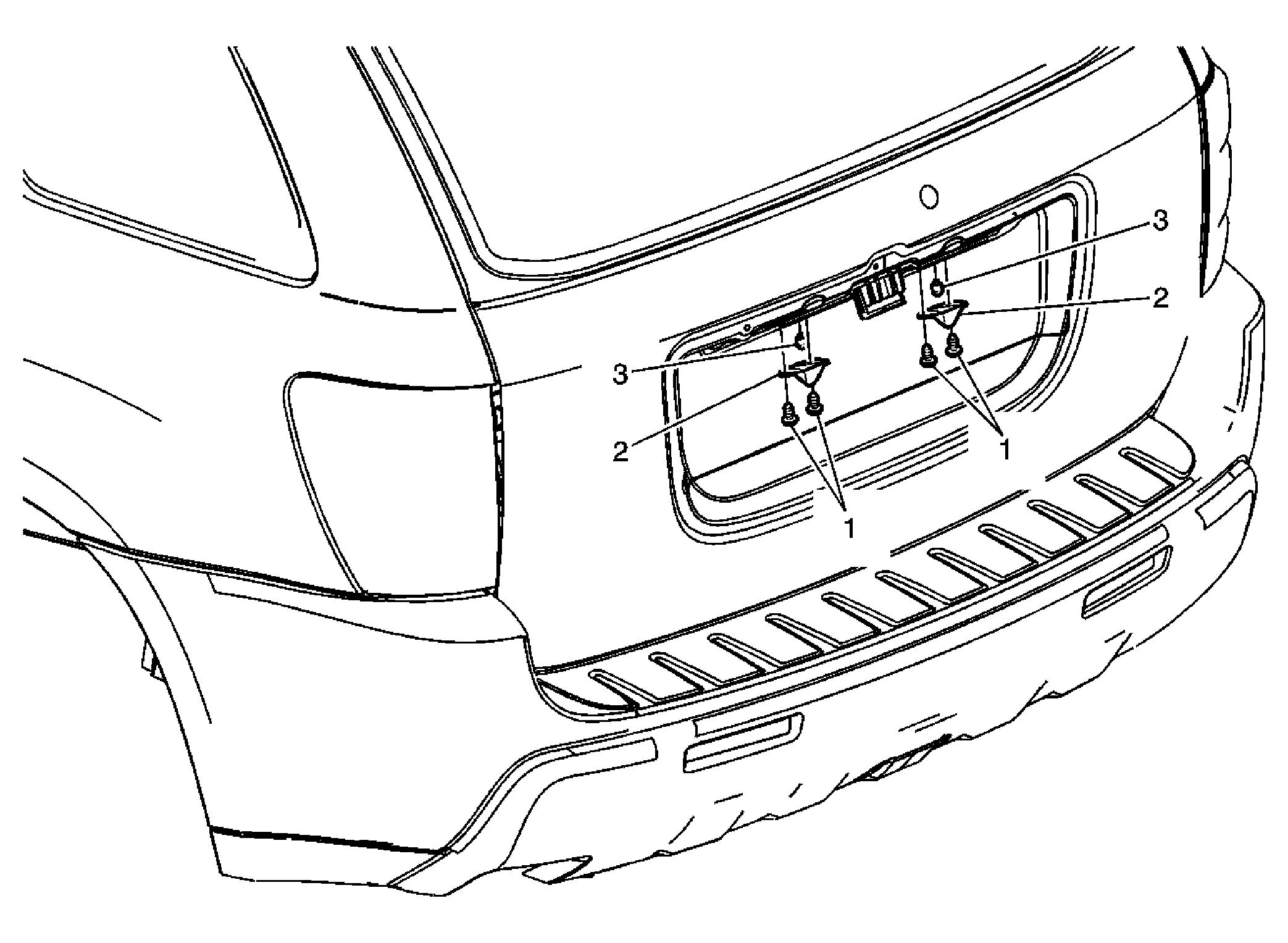

| Callout | Component Name |
|---|---|
| 1 | License Lamp Lens Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | License Lamp Lens (Qty: 2) |
| 3 | License Lamp Bulb |
