Parking and Turn Signal Lamp Bulb Replacement (Equinox Park Lamp)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

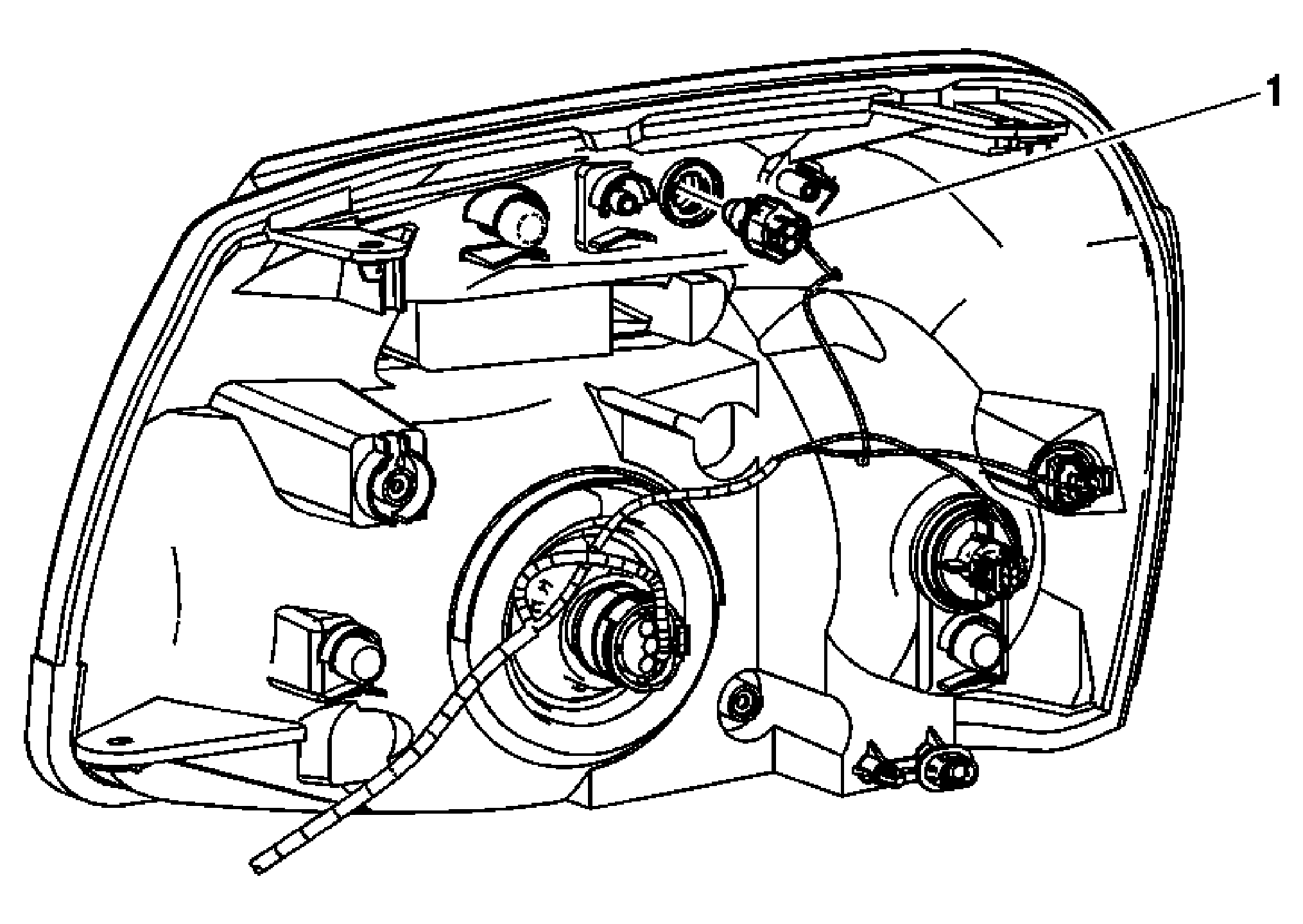

Fig 1: Identifying Park/Turn Signal Lamp Bulb Replacement (Equinox Park Lamp)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove headlamp assembly. Refer to Headlamp Replacement (Torrent) or Headlamp Replacement (Equinox) .
1	Front Parking Lamp Socket Bulb Tip: Turn the socket counterclockwise in order to remove. Remove the bulb by pulling the bulb straight out of the socket.
