Instrument Panel Lamp Dimmer Switch Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

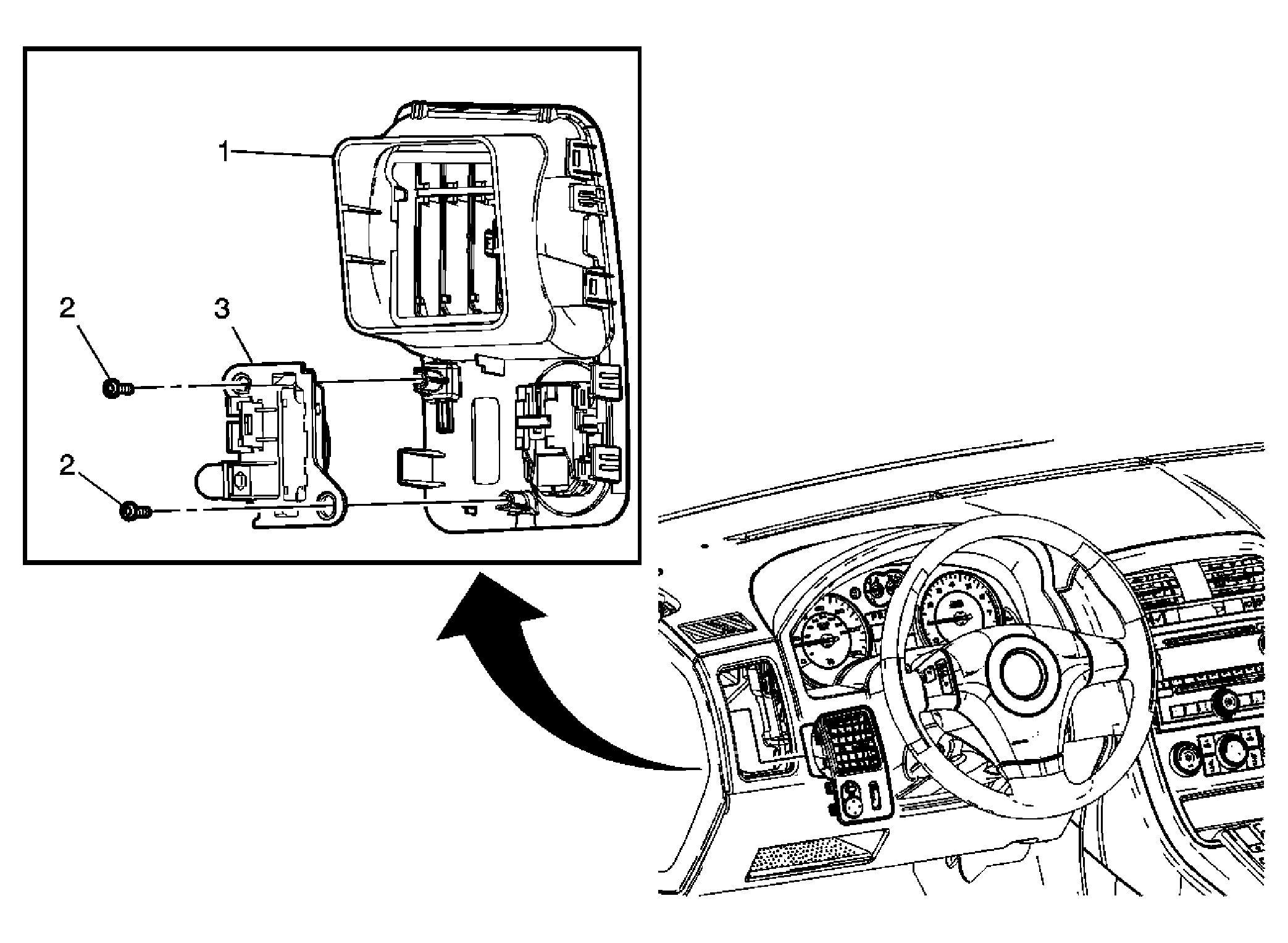

Fig 1: Locating Instrument Panel Dimmer Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Air Outlet Assembly Procedure Carefully pry out the outlet assembly using a nylon flat bladed tool. Disconnect the electrical connectors.
2	Instrument Panel Dimmer Switch Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
3	Instrument Panel Dimmer Switch

Callout

Component Name

Instrument Panel Air Outlet Assembly

Procedure

Carefully pry out the outlet assembly using a nylon flat bladed tool.
Disconnect the electrical connectors.

Instrument Panel Dimmer Switch Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

Instrument Panel Dimmer Switch
