Headlamp Bulb Replacement (Torrent)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

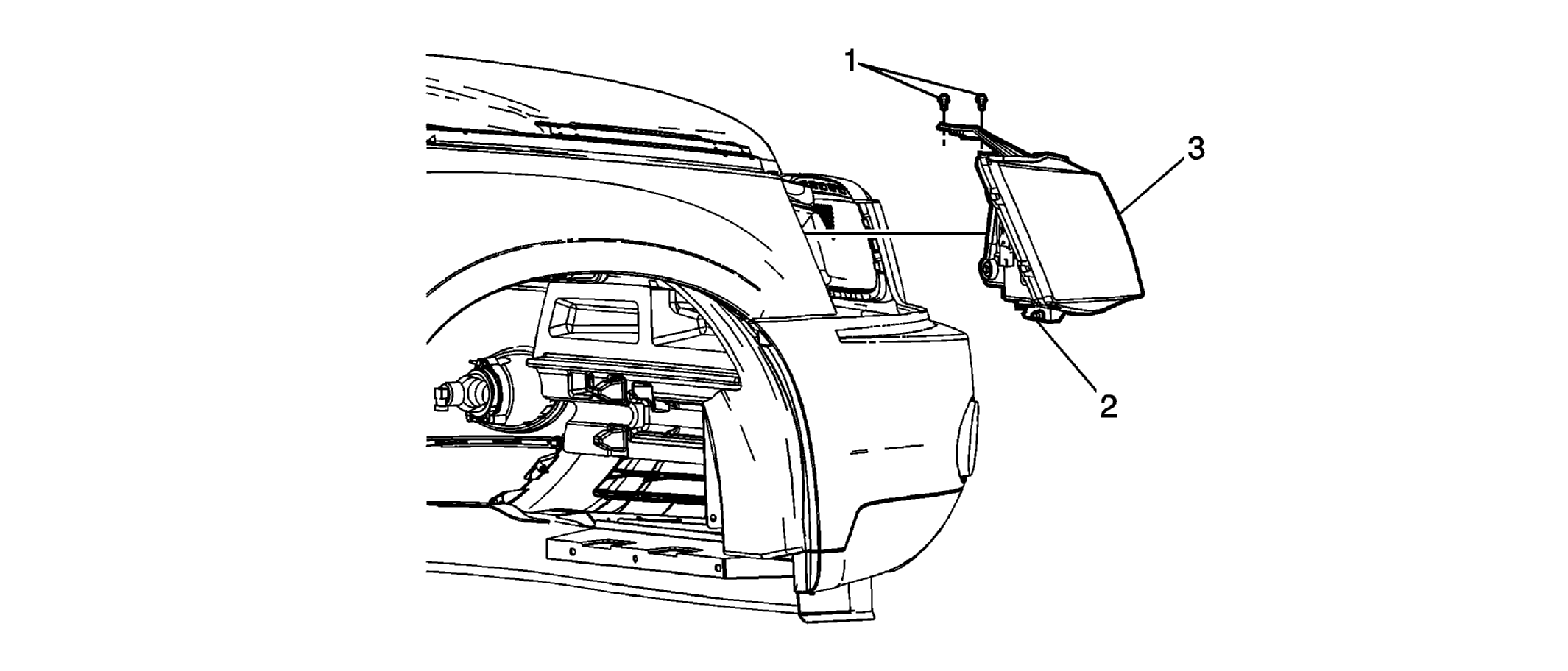

Fig 1: View Of Headlamp Assembly (Torrent)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Open the hood. Lower the corner of the front fascia which the headlamp will be removed from. Refer to Front Bumper Fascia Replacement (SS) or Front Bumper Fascia Replacement (Torrent) or Front Bumper Fascia Replacement (Equinox) .
1	Headlamp Mounting Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 4 N.m (56 lb in)
2	Headlamp Ball Socket Locator Pin Procedure Pull from the bottom of the headlamp forward in order to release the headlamp locator pin from the front outer corner of the body rail. Disconnect the forward lamp harness electrical connector to the headlamp being serviced.
3	Headlamp Assembly Procedure: Check and adjust the front headlamp aim after the headlamp has been reinstalled. Refer to Headlamp Aiming .
