Home >> Pontiac >> 2008 >> Torrent GXP, AWD >> Repair and Diagnosis >> External Pages >> Different car >> Section 87 (Lighting Systems) >> Repair Instructions >> Headlamp Bulb Replacement (Equinox) >> Removal Procedure

Removal Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.

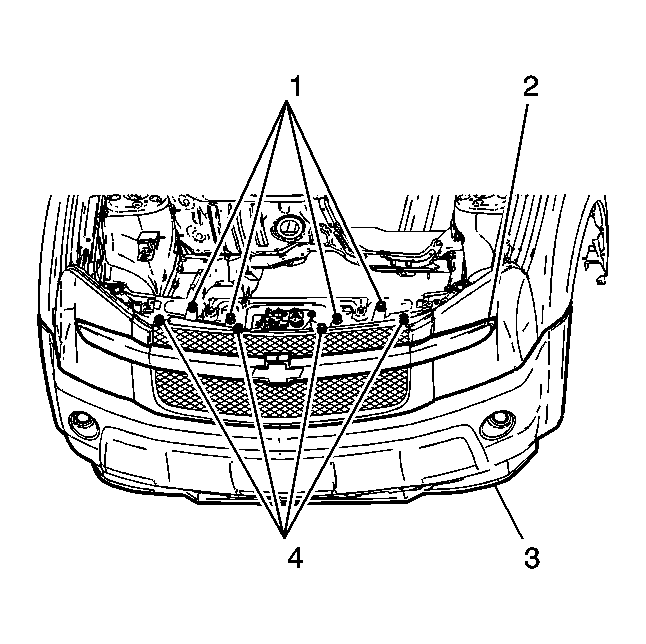

    2. Fig 1: View Of Fascia To Tie Bar Push-In Retainers, Radiator Grille Strap & Front Fascia Assembly
    GM1344377Courtesy of GENERAL MOTORS CORP.
  2. Remove the fascia to tie bar push-in retainers (1).
    3. Fig 2: View Of Fascia At Headlamps
    GM1344341Courtesy of GENERAL MOTORS CORP.
  3. Gently pull the top of the fascia assembly several inches away from the vehicle to release the radiator grille strap from the headlamp.
  4. Place a piece of tape over the radiator grille strap to headlamp retaining clip to prevent scratching of the headlamp lens.

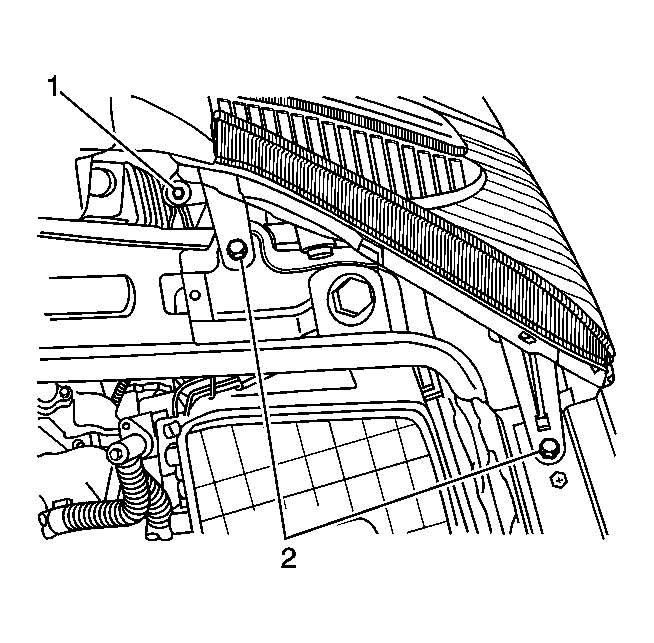

    5. Fig 3: View Of Headlamp Bolts
    GM1344345Courtesy of GENERAL MOTORS CORP.
  5. Remove the headlamp bolts (1, 2).
    6. Fig 4: View Of Lower Rear Headlamp Retainer
    GM1344346Courtesy of GENERAL MOTORS CORP.
  6. Pull gently on the bottom outboard corner of the headlamp to disengage the lower rear headlamp retainer.
  7. Remove the headlamp from the vehicle.
