Front Side Marker Lamp Bulb Replacement (Torrent)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

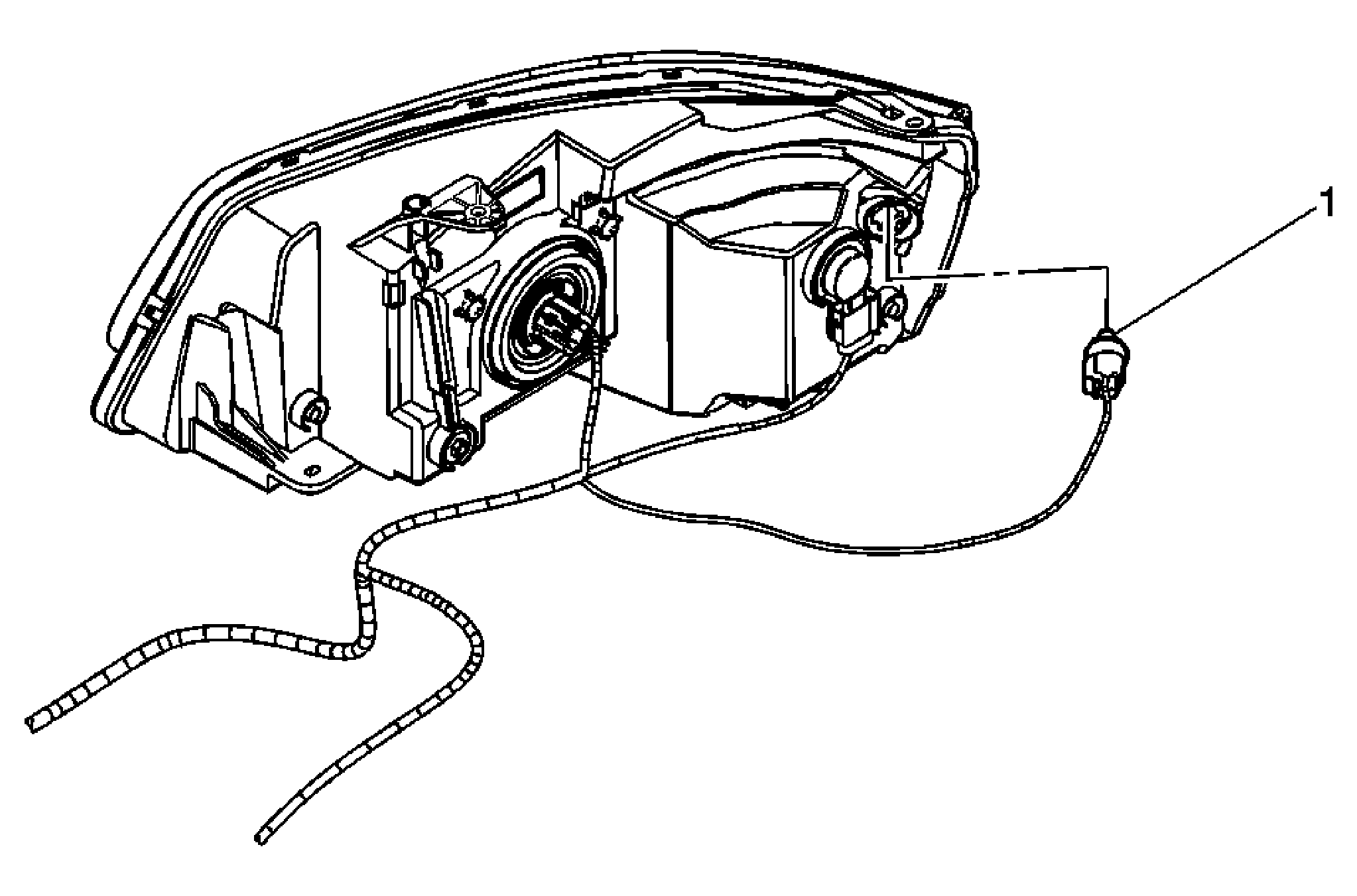

Fig 1: Identifying Front Side Marker Lamp Bulb (Torrent)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove either the LF or RF side of the front bumper fascia. Refer to Front Bumper Fascia Replacement (SS) or Front Bumper Fascia Replacement (Torrent) or Front Bumper Fascia Replacement (Equinox) . Remove headlamp assembly. Refer to Headlamp Replacement (Torrent) or Headlamp Replacement (Equinox) .
1	Side Marker Lamp Socket Bulb Tip: Turn the socket counterclockwise in order to remove. Pull the bulb straight from the lamp socket.

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove either the LF or RF side of the front bumper fascia. Refer to Front Bumper Fascia Replacement (SS) or Front Bumper Fascia Replacement (Torrent) or Front Bumper Fascia Replacement (Equinox) .
Remove headlamp assembly. Refer to Headlamp Replacement (Torrent) or Headlamp Replacement (Equinox) .

Side Marker Lamp Socket Bulb
Tip:

Turn the socket counterclockwise in order to remove.
Pull the bulb straight from the lamp socket.
