Front Fog Lamp Replacement (Torrent)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

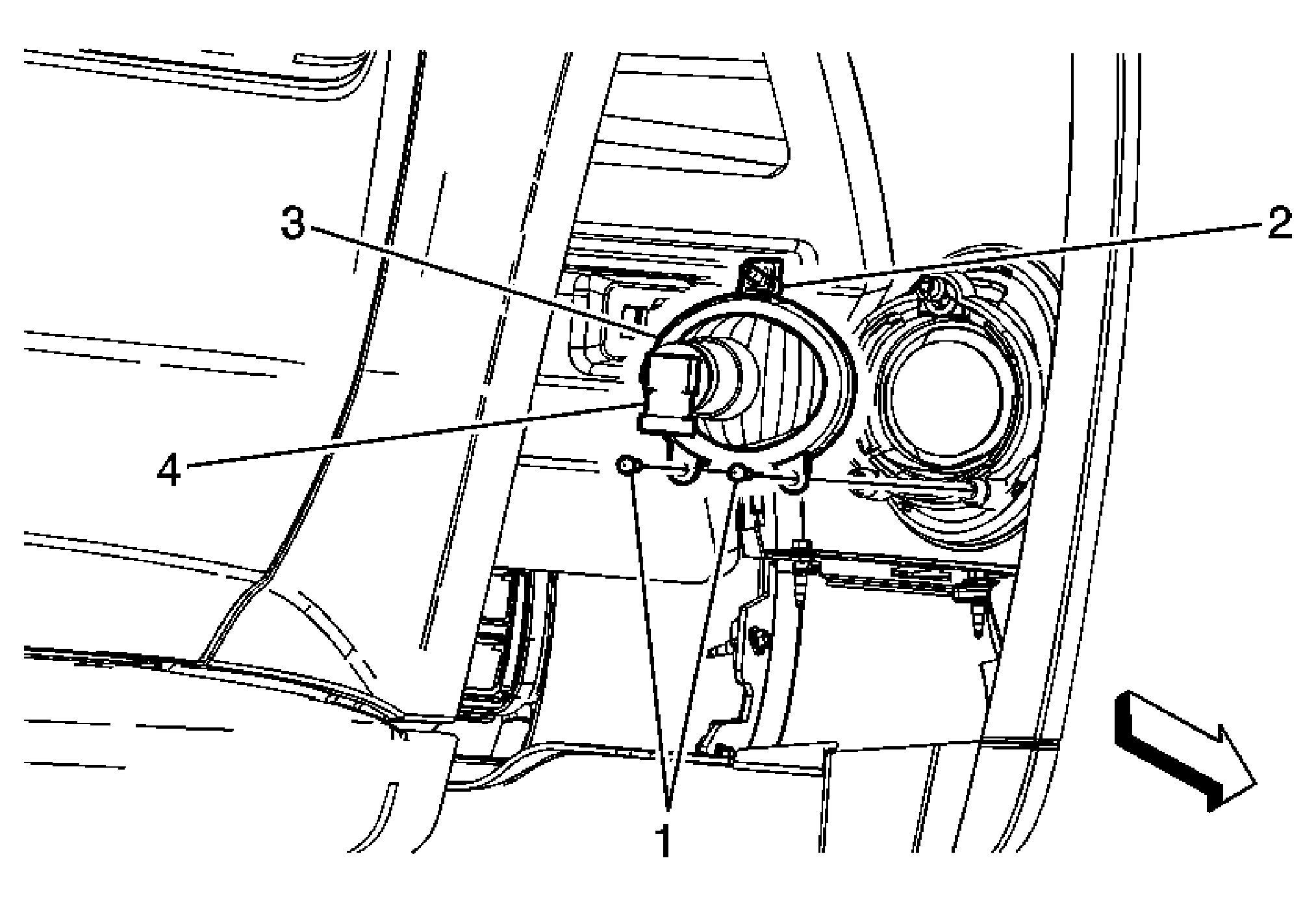

Fig 1: View Of Fog Lamp Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove either the LF or RF front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Disconnect the fog lamp bulb socket electrical connector.
1	Front Fog Lamp Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Front Fog Lamp Adjuster Screw Procedure Remove the adjuster screw from the fog lamp bracket and lamp assembly. Count the number of turns when removing the adjuster screw for a reference upon installation. Aim the fog lamps after installation. Refer to Fog Lamp Aiming .
3	Front Fog Lamp Assembly Procedure: Remove the lamp assembly from the fog lamp bracket.
4	Front Fog Lamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure: Turn the bulb socket counterclockwise and remove from lamp assembly.
