Front Fog Lamp Replacement (Equinox)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

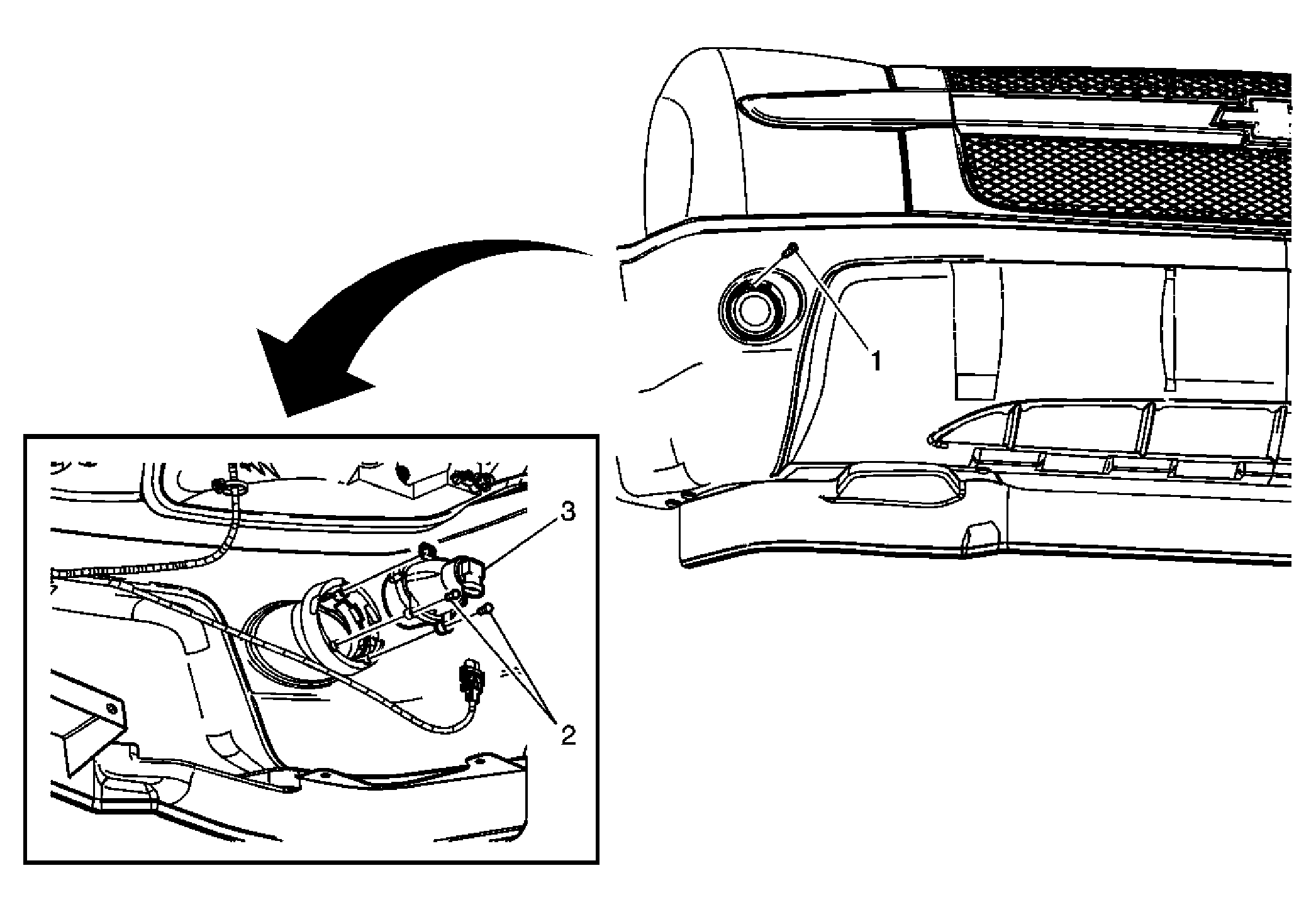

Fig 1: Identifying Front Fog Lamp (Equinox)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Fog Lamp Adjuster Screw Tip: Count the number of turns outward when removing the screw to install the screw close to the same position as removed.
2	Front Fog Lamp Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
3	Front Fog Lamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Remove the push-in retainers that hold the front flap of the front wheelhouse liner to the fascia. Move the front flap of the wheelhouse liner out of the way in order to gain access to the fog lamp. Disconnect the electrical connector to the fog lamp bulb. Rotate counter-clockwise the bulb and remove from the fog lamp assembly. Remove the lamp assembly from the fog lamp locking ring. Adjust and aim the fog lamps when completed. Refer to Fog Lamp Aiming .

Callout

Component Name

Front Fog Lamp Adjuster Screw
Tip: Count the number of turns outward when removing the screw to install the screw close to the same position as removed.

Front Fog Lamp Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 2.5 N.m (22 lb in)

Front Fog Lamp Bulb

WARNING: Refer to Halogen Bulb Warning .

Procedure

Remove the push-in retainers that hold the front flap of the front wheelhouse liner to the fascia.
Move the front flap of the wheelhouse liner out of the way in order to gain access to the fog lamp.
Disconnect the electrical connector to the fog lamp bulb.
Rotate counter-clockwise the bulb and remove from the fog lamp assembly.
Remove the lamp assembly from the fog lamp locking ring.
Adjust and aim the fog lamps when completed. Refer to Fog Lamp Aiming .
