Front Fog Lamp Bulb Replacement (Torrent)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

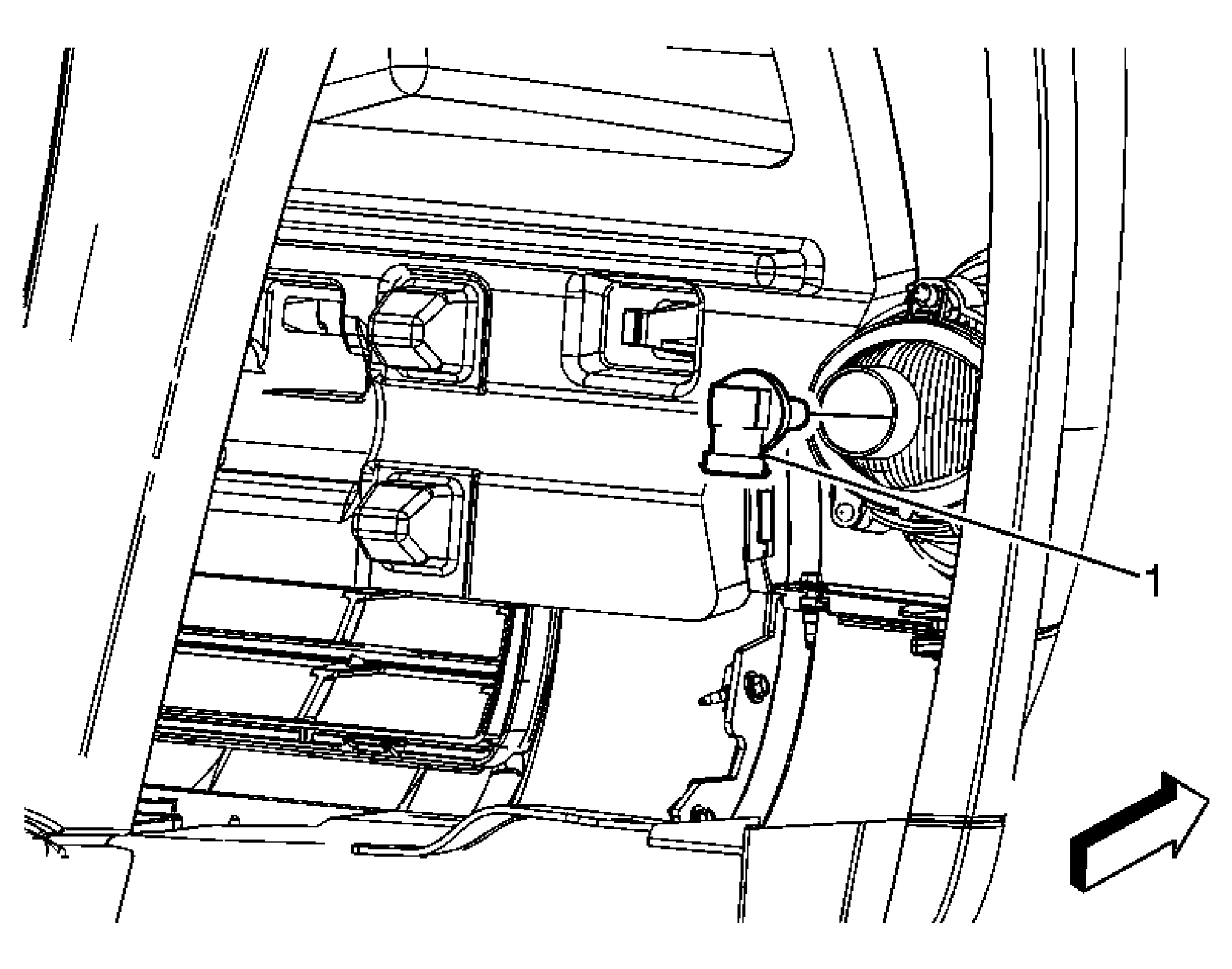

Fig 1: Identifying Fog Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Disconnect the electrical connector from the fog lamp bulb socket.
1	Front Fog Lamp Bulb WARNING: Refer to Halogen Bulb Warning . Tip: Turn the bulb socket counterclockwise in order to remove.

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
Disconnect the electrical connector from the fog lamp bulb socket.

Front Fog Lamp Bulb

WARNING: Refer to Halogen Bulb Warning .

Tip: Turn the bulb socket counterclockwise in order to remove.
