Front Fog Lamp Bulb Replacement (Equinox)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

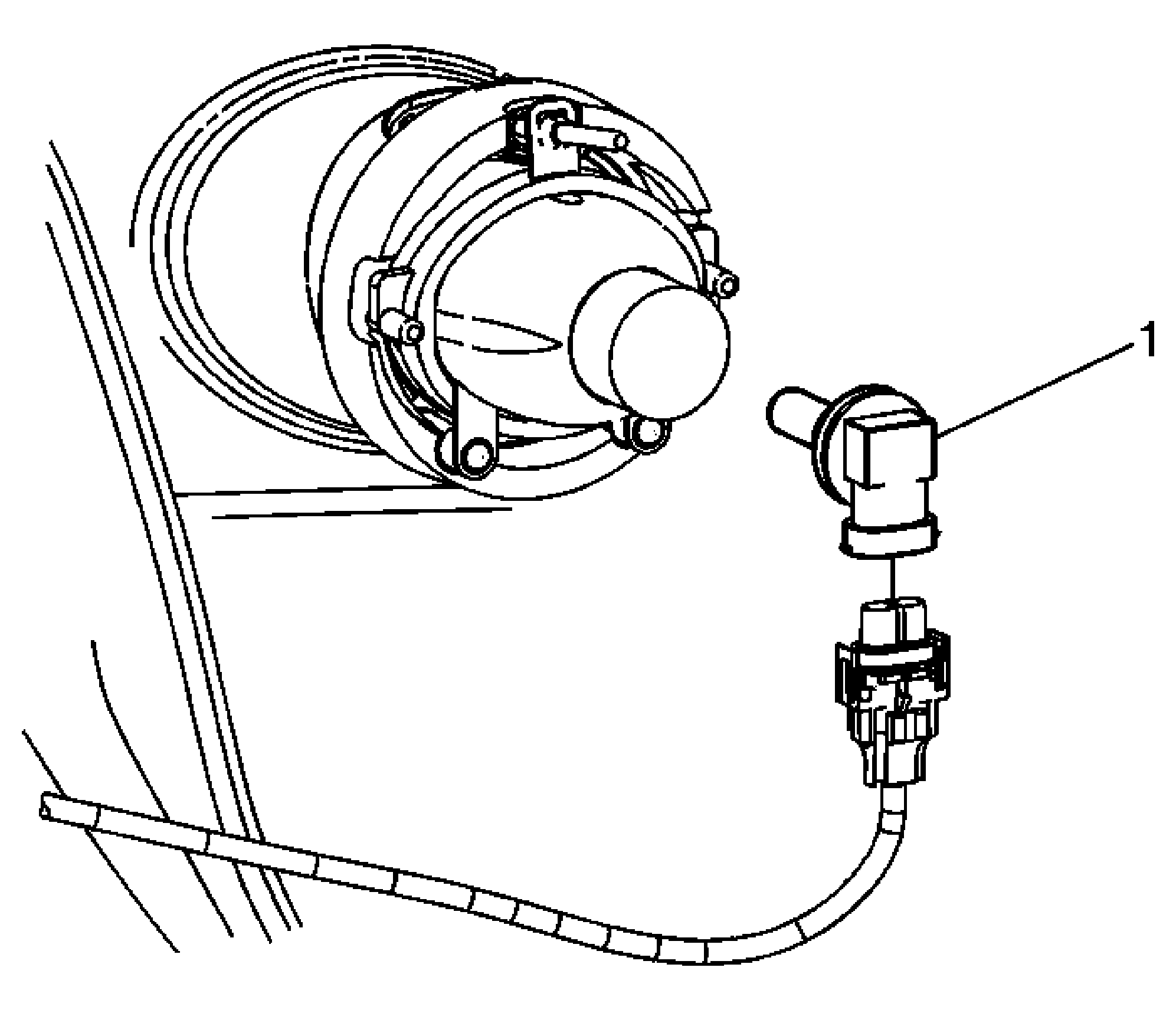

Fig 1: View Of Front Fog Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Fog Lamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Remove the push-in retainers that hold the front flap of the front wheelhouse liner to the fascia. Bend the front flap of the wheelhouse liner out of the way in order to gain access to the fog lamp. Turn the fog lamp socket counterclockwise to release the fog lamp socket from the fog lamp housing. Disconnect the electrical connector.

Callout

Component Name

Front Fog Lamp Bulb

WARNING: Refer to Halogen Bulb Warning .

Procedure

Remove the push-in retainers that hold the front flap of the front wheelhouse liner to the fascia.
Bend the front flap of the wheelhouse liner out of the way in order to gain access to the fog lamp.
Turn the fog lamp socket counterclockwise to release the fog lamp socket from the fog lamp housing.
Disconnect the electrical connector.
