Dome Lamp Replacement (Without DVD)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

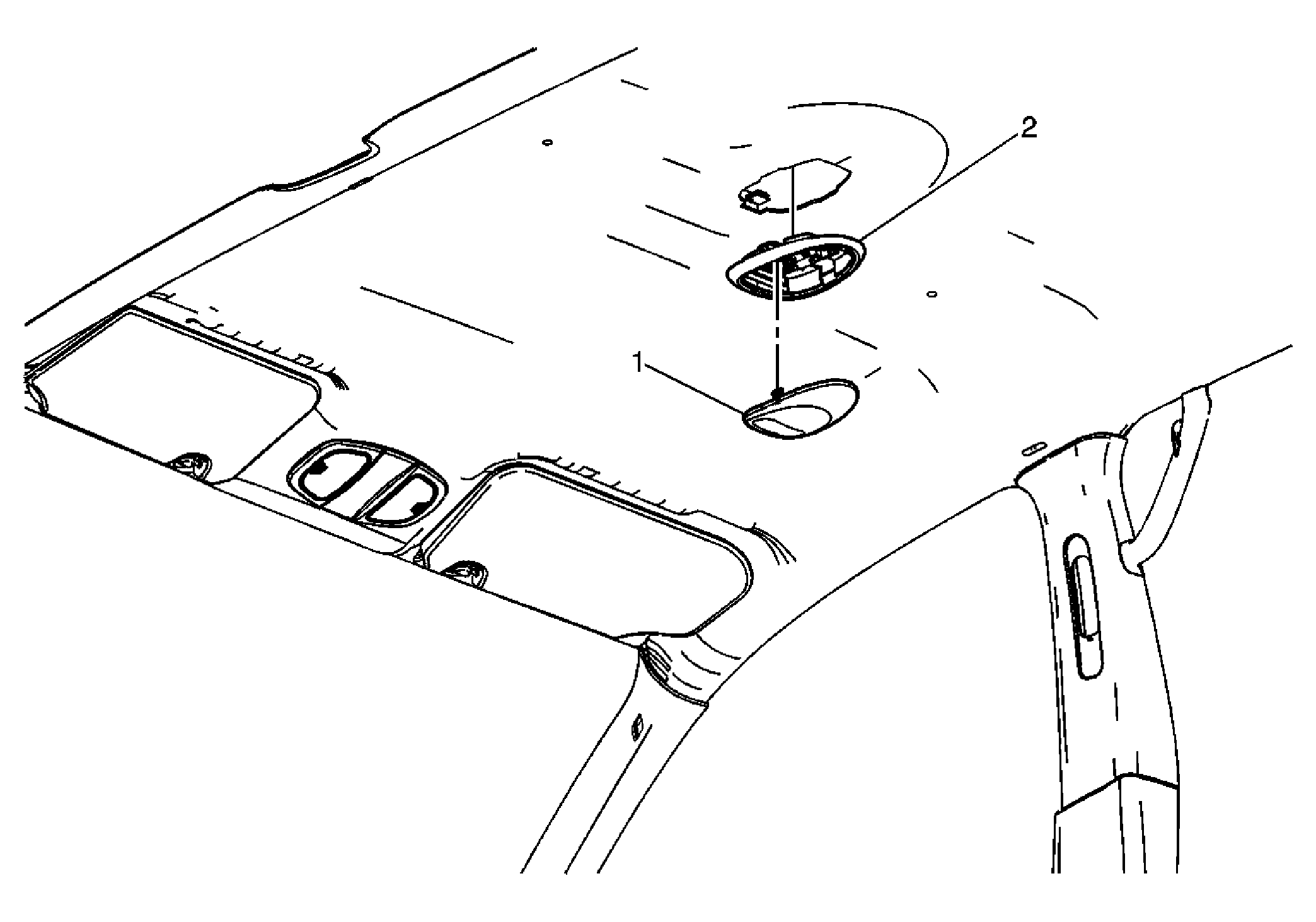

Fig 1: Identifying Dome Lamp (Without DVD)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dome Lamp Lens Tip: Use a small flat bladed tool to aid in the removal of the lens.
2	Dome Lamp Assembly Procedure Using a small flat-bladed tool, disengage the dome lamp attaching clips by gently prying at each side of the retaining tab while pulling the tab off of the headliner. Pull the forward edge of the dome lamp downward and rearward to disengage the lamp from the headliner. Disconnect the electrical connector.

Callout

Component Name

Dome Lamp Lens
Tip: Use a small flat bladed tool to aid in the removal of the lens.

Dome Lamp Assembly

Procedure

Using a small flat-bladed tool, disengage the dome lamp attaching clips by gently prying at each side of the retaining tab while pulling the tab off of the headliner.
Pull the forward edge of the dome lamp downward and rearward to disengage the lamp from the headliner.
Disconnect the electrical connector.
