Daytime Running Lamps (DRL) Resistor Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

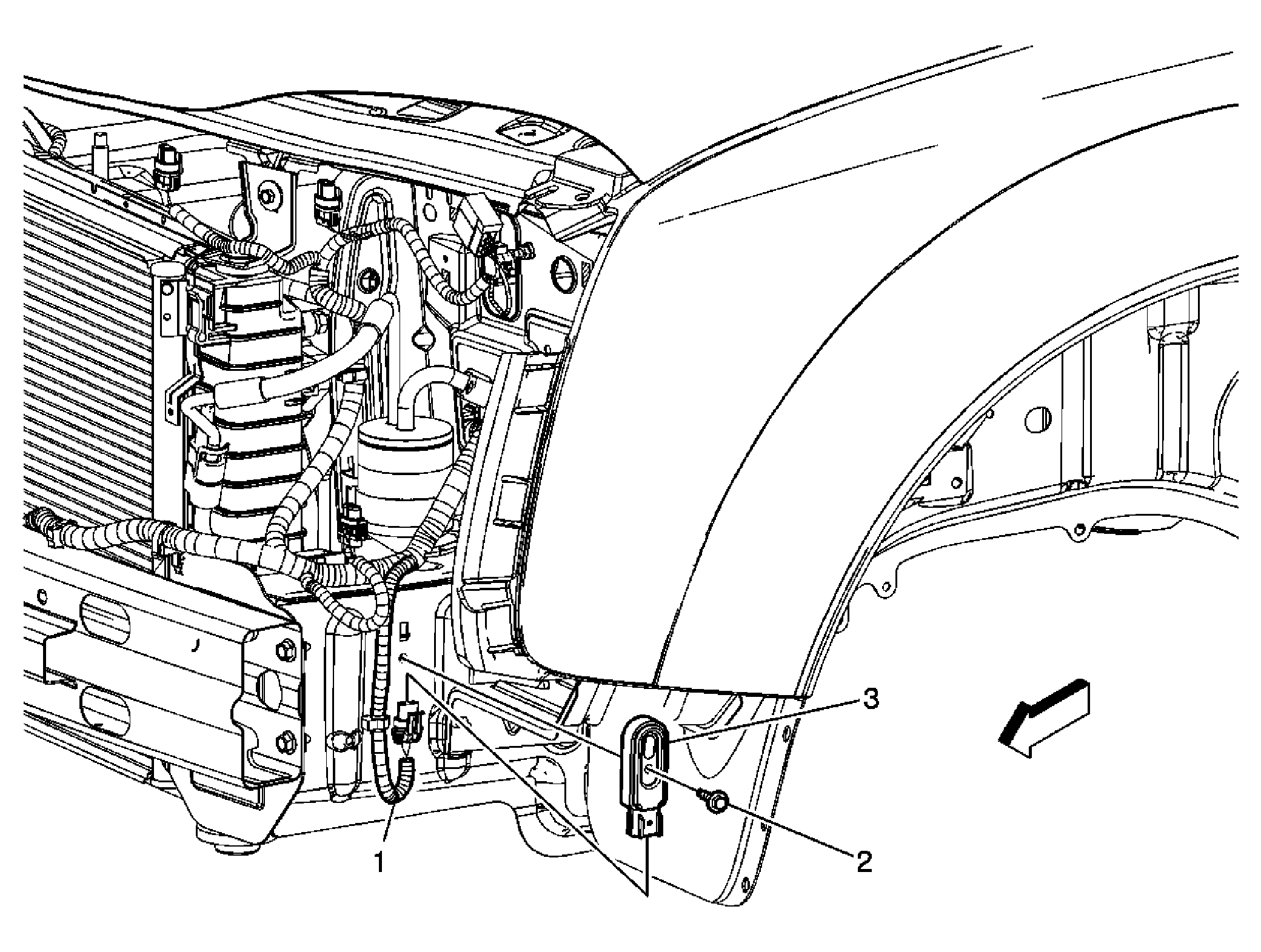

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front bumper fascia. Refer to Front Wheelhouse Liner Replacement . |
|
| 1 | Forward Lamp Wiring Harness Assembly |
| 2 | Daytime Running Lamp Resistor Assembly Bolt
CAUTION:
Refer to Fastener Caution
.
Tighten: 6 N.m (53 lb in) |
| 3 | Daytime Running Lamp Resistor Assembly Procedure: Disconnect the electrical connector. |
