Roof Console Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

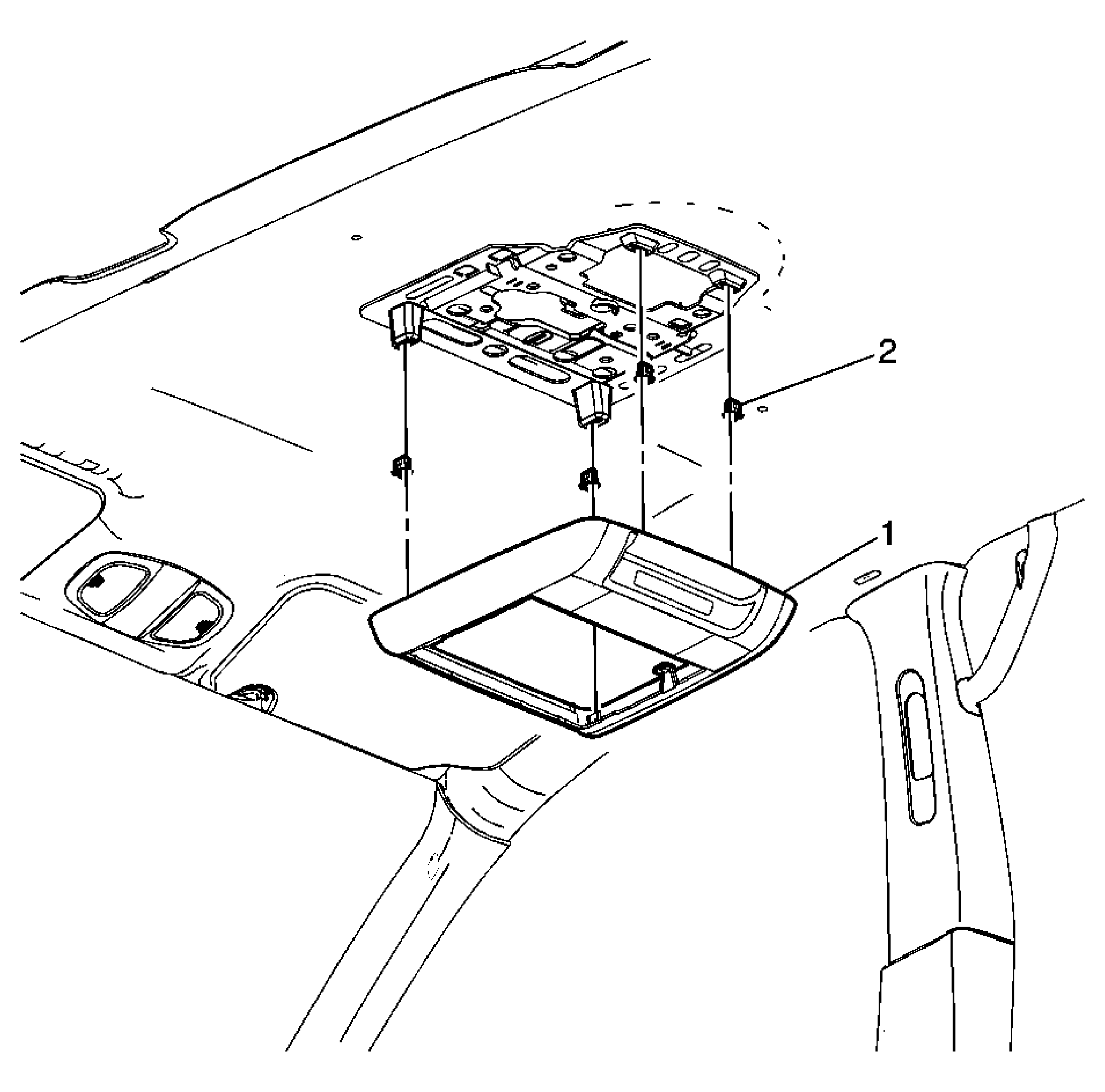

Fig 1: View Of Roof Console
GM1714805Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Roof Console with DVD Display
Tip:
  1. Pull down to disengage the retainer clips.
  2. Disconnect the electrical connectors.
2 Roof Console Retainer Clip (Qty: 4)
