Front Floor Console Rear Cover Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

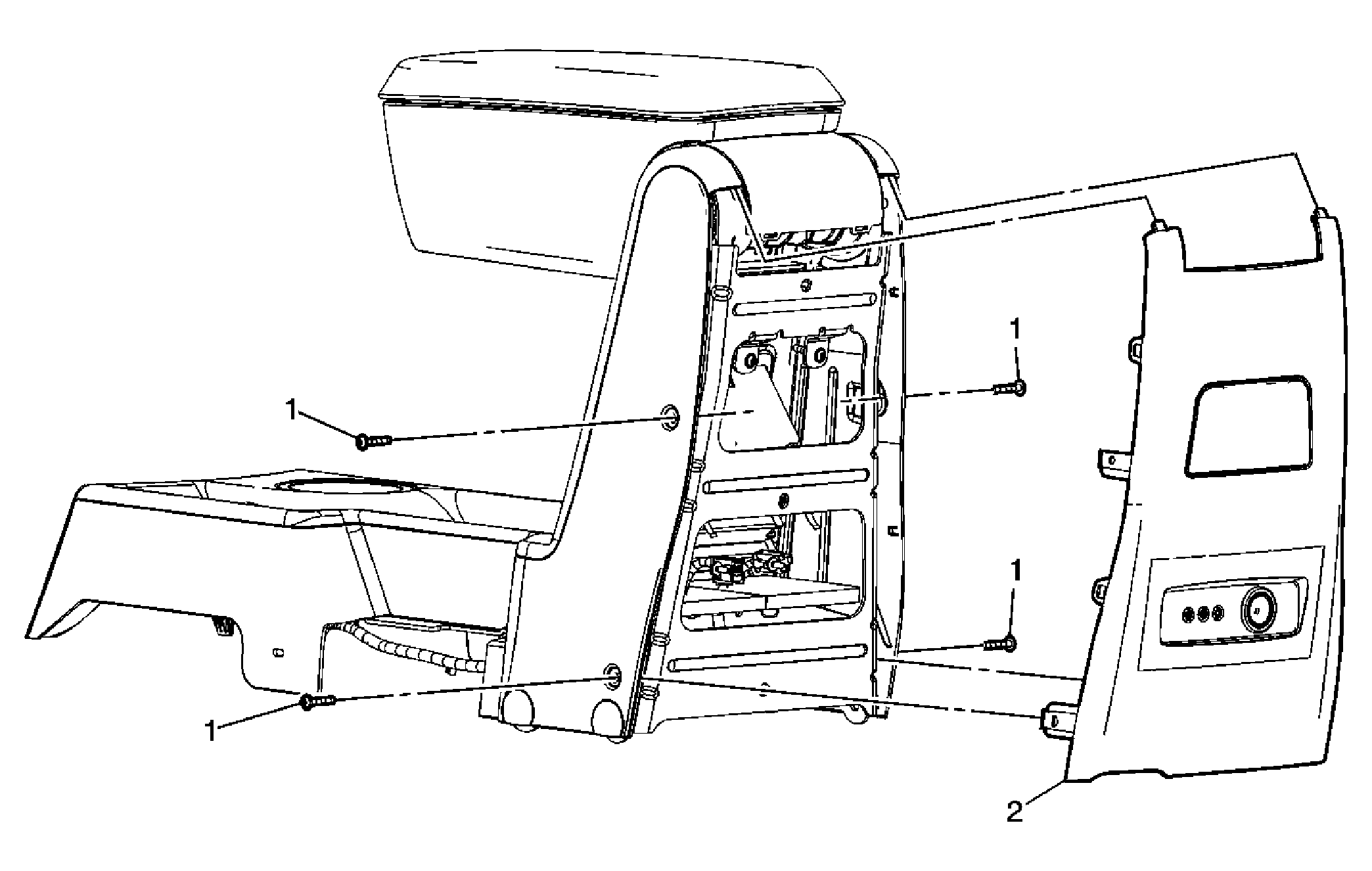

Fig 1: View Of Front Floor Console Rear Cover

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Floor Console Rear Cover Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten:: 2 N.m(18 in lb)
2	Front Floor Console Rear Cover Screw Procedure Disconnect electrical connections. When replacing the front floor console rear cover, transfer all necessary components.

Callout

Component Name

Front Floor Console Rear Cover Screw (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten:: 2 N.m(18 in lb)

Front Floor Console Rear Cover Screw

Procedure

Disconnect electrical connections.
When replacing the front floor console rear cover, transfer all necessary components.
