Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Locating Cable In Seat Back Assembly
    GM986695Courtesy of GENERAL MOTORS CORP.
  1. If you are replacing the cable, route the cable through the rear seat back.
    2. Fig 2: Disconnecting/Connecting Seat Recliner Cable
    GM987263Courtesy of GENERAL MOTORS CORP.
  2. Connect the latch cable to the recliner mechanism.
    3. Fig 3: View Of Seat Back Recliner Handle & Cable
    GM986676Courtesy of GENERAL MOTORS CORP.
  3. Connect the J-strip at the bottom of the seat cover.
  4. Connect the latch cable to the latch assembly.

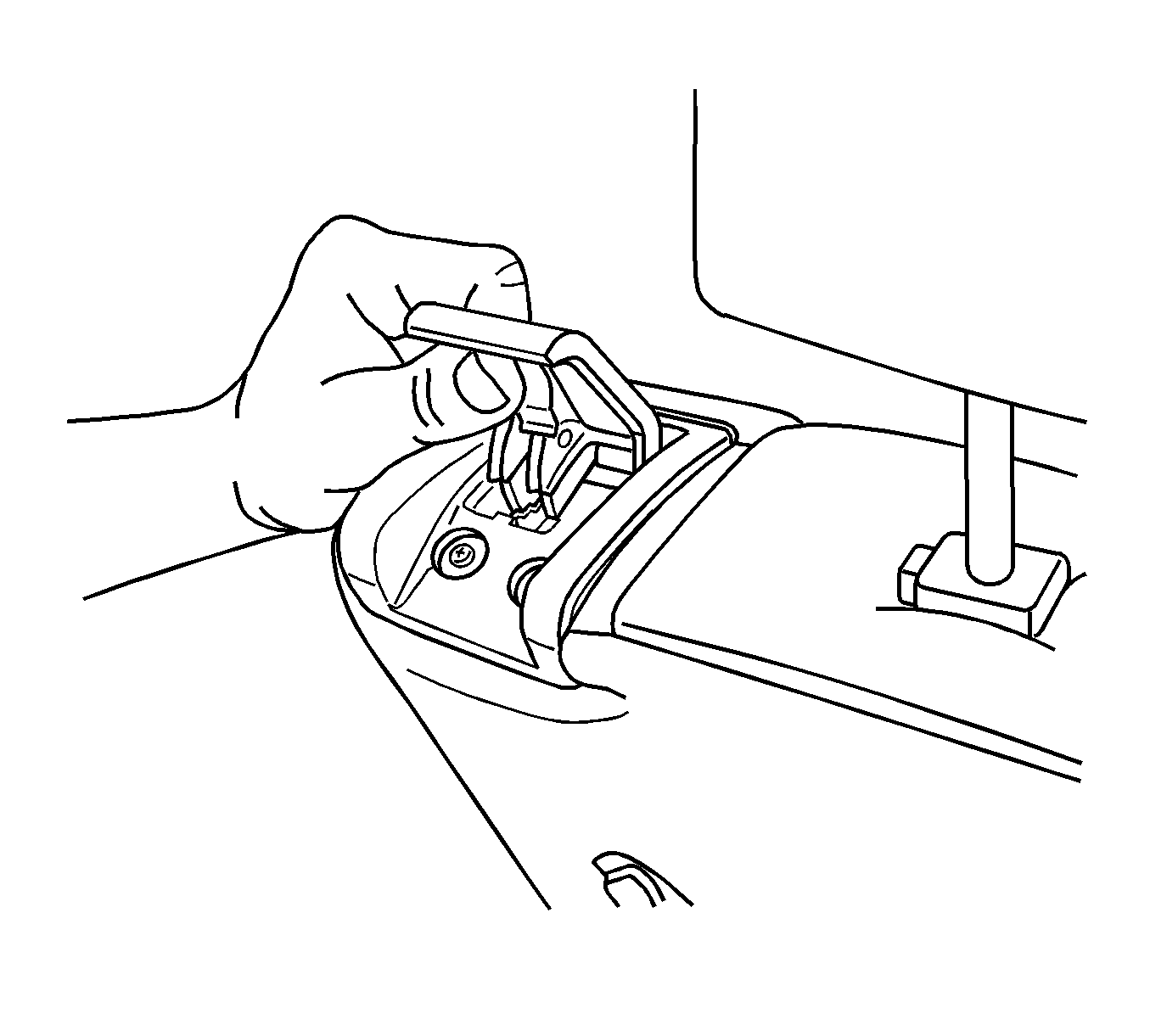

    5. Fig 4: Identifying Rear Seat Back Latch
    GM1349136Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  5. Install the latch to the seat back with a fastener and tighten to 2.5 N.m (22 lb in).
  6. Install the rear seat. Refer to Rear Seat Replacement .
