Front Seat Recliner Mechanism Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

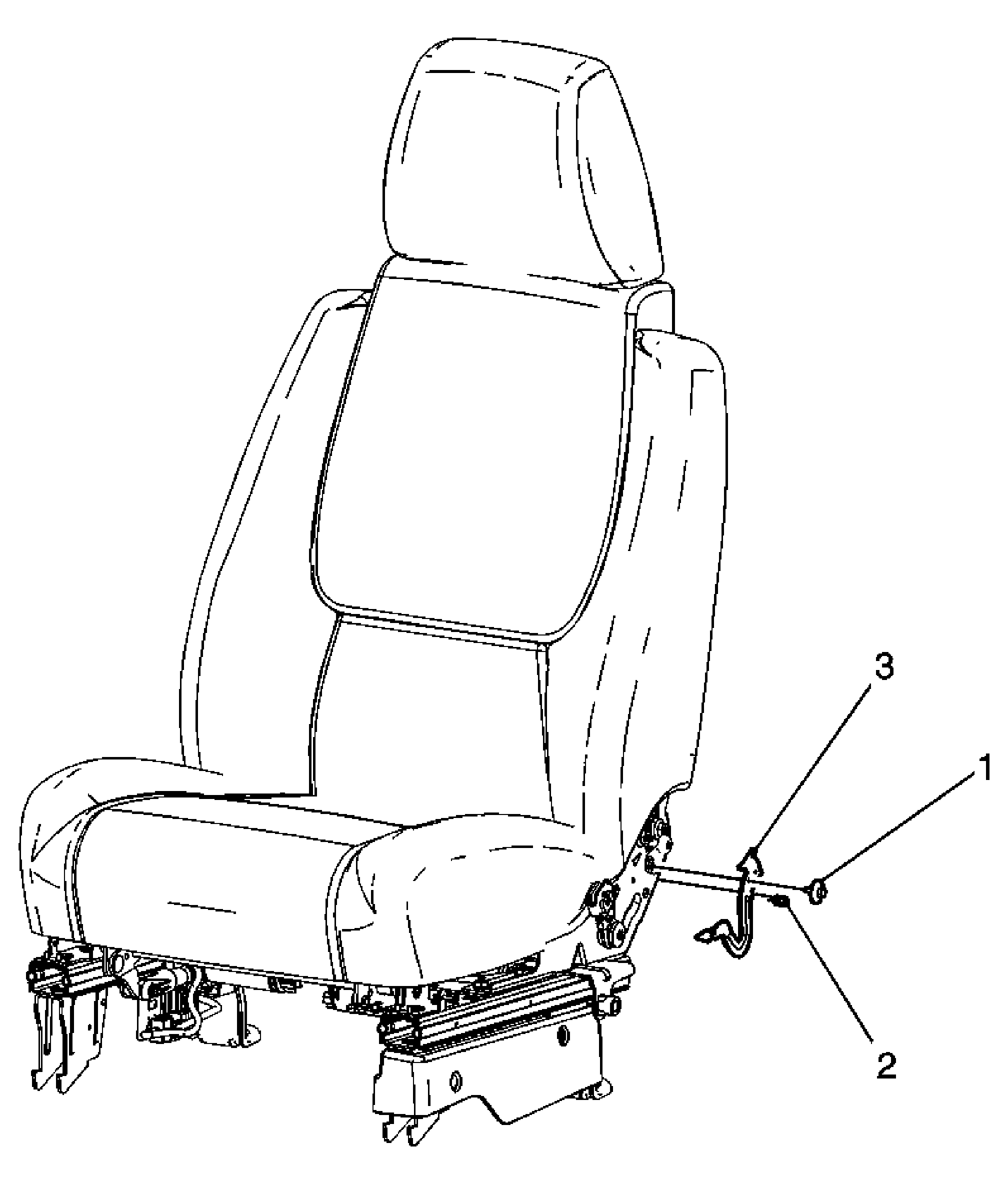

Fig 1: Identifying Front Seat Recliner Mechanism

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front seat. Refer to Front Seat Replacement - Bucket . Remove the recliner handle by pulling firmly forward. Remove the front seat outer adjuster finish cover. Refer to Front Seat Cushion Outer Trim Panel Replacement (Non-Fold Flat) or Front Seat Cushion Outer Trim Panel Replacement (Fold Flat) .
1	Front Seat Recliner Lever Bolt CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Front Seat Recliner Spring
3	Front Seat Recliner Lever
