Front Seat Head Restraint Guide Replacement (Non-Fold Flat)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

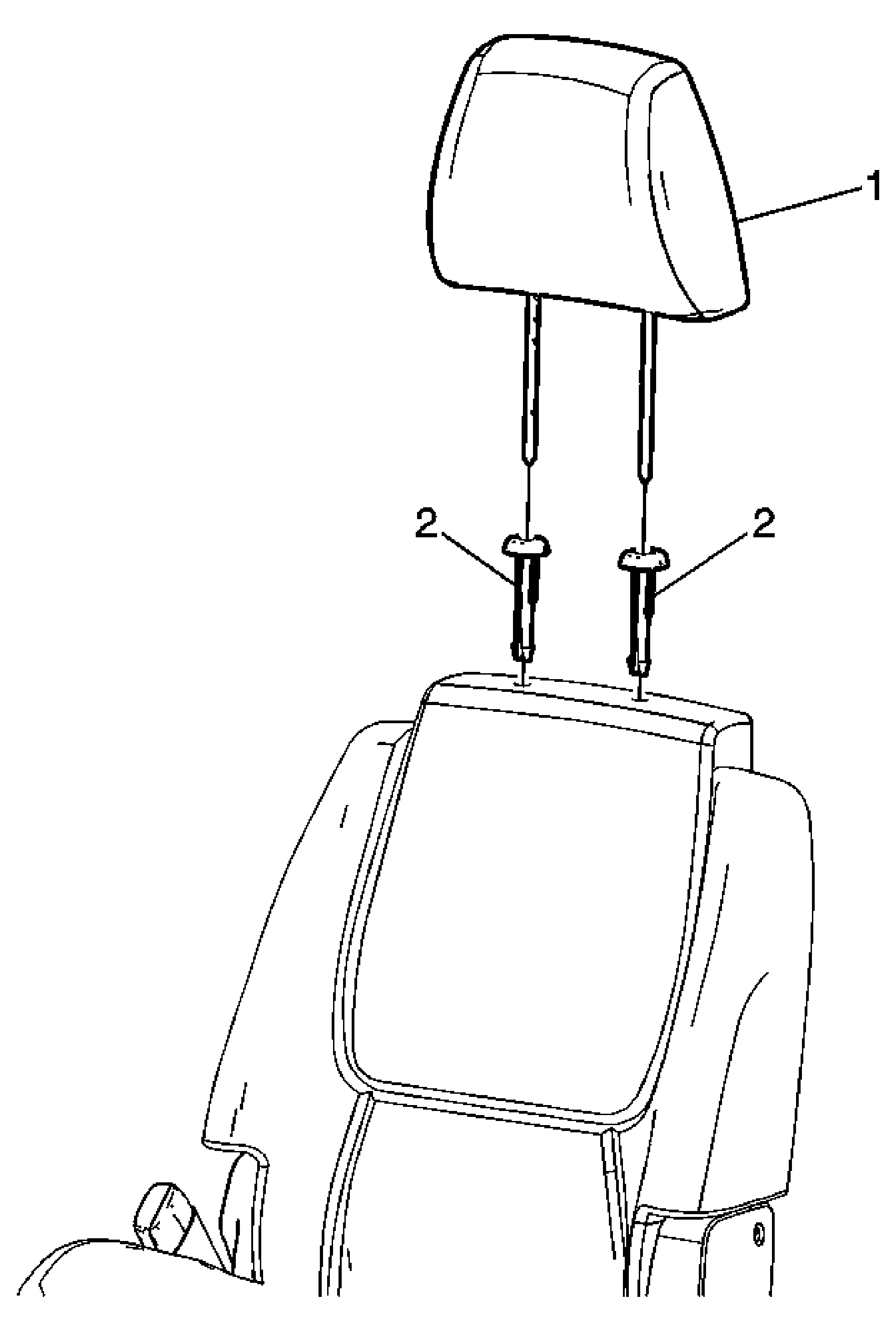

Fig 1: View Of Front Seat Head Restraint Guide (Non-Fold Flat)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Front Seat Head Restraint Refer to Driver or Passenger Seat Head Restraint Replacement .
2	Front Seat Head Restraint Guides Tip: Disconnect the lower J-hook retainer from the seat back trim cover. Carefully pull up the trim cover, disengaging the hoop and loop retainers, until the headrest guides are exposed. Squeeze the locking tabs on the headrest guide and pull the guides up and out of the seat back pad.
