Front Seat Head Restraint Guide Replacement (Fold Flat)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

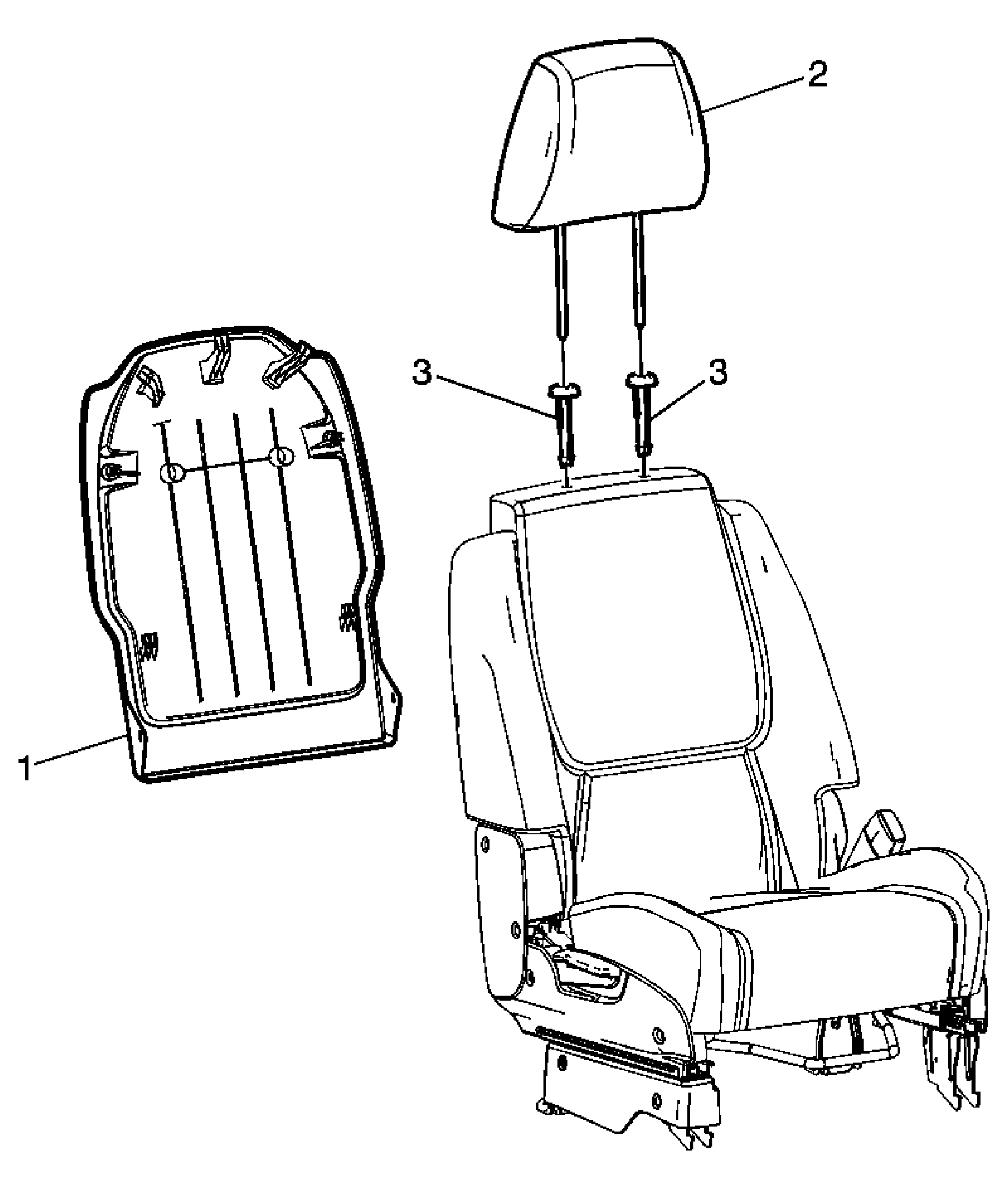

Fig 1: View Of Front Seat Head Restraint Guide (Fold Flat)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Seat Back Cushion Finish Panel Refer to Driver or Passenger Seat Back Cushion Finish Panel Replacement (Fold Flat) .
2	Front Seat Head Restraint Refer to Driver or Passenger Seat Head Restraint Replacement .
3	Front Seat Head Restraint Guides Tip: Squeeze the bottom of the guides together and push upward to remove.
