Front Seat Adjuster Replacement (2-Way Fold Flat)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

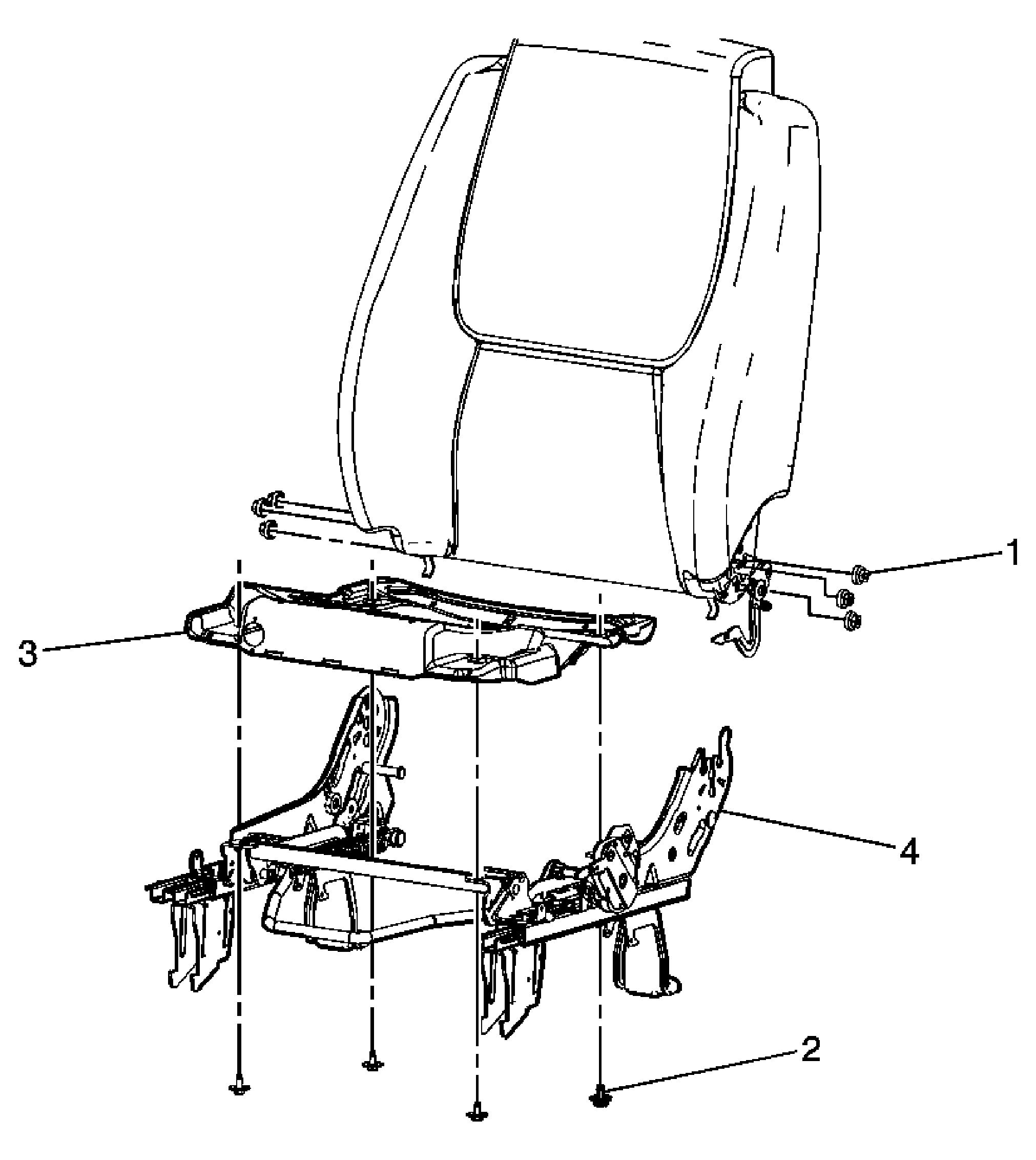

Fig 1: View Of Front Seat Adjuster (2-Way Fold Flat)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Front Seat Replacement - Bucket . Remove the seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .
1	Front Seat Back Recliner Nut CAUTION: Refer to Fastener Caution . Tighten: 45 N.m (33 lb ft)
2	Front Seat Cushion Frame Bolt (Qty: 4) Tighten: 12 N.m (9 lb ft)
3	Front Seat Cushion Frame
4	Front Seat Adjuster Assembly Procedure Use a flat-bladed tool to remove the recliner cable from the seat frame. When replacing the adjuster assembly with a new unit, transfer components as necessary.
