Driver or Passenger Seat Recliner Handle Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

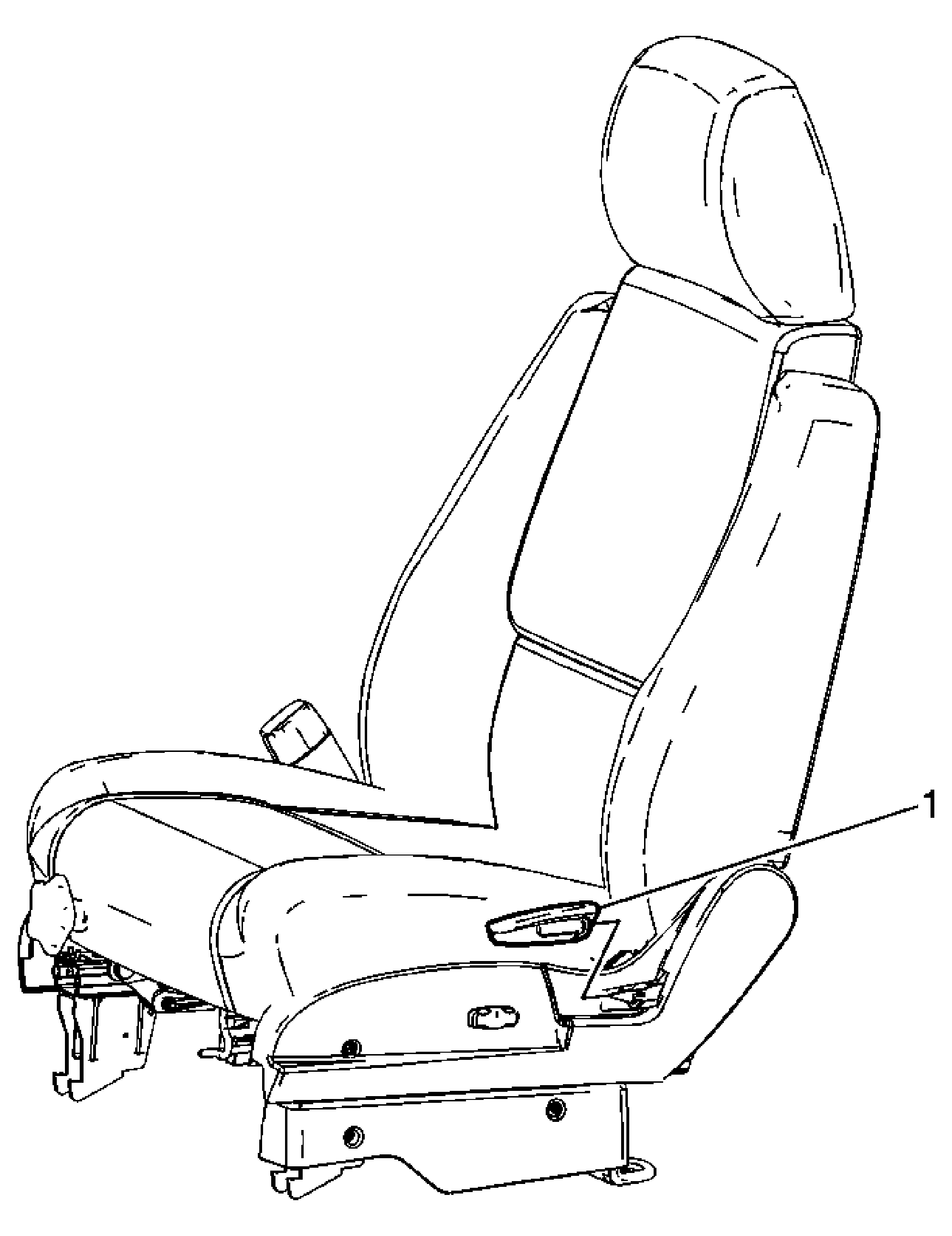

Fig 1: View Of Driver Seat and Passenger Seat Recliner Handle
GM1711383Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Front Seat Recliner Handle
Tip:  Pull firmly forward on the handle to remove.
