Driver or Passenger Seat Lumbar Support Actuator Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

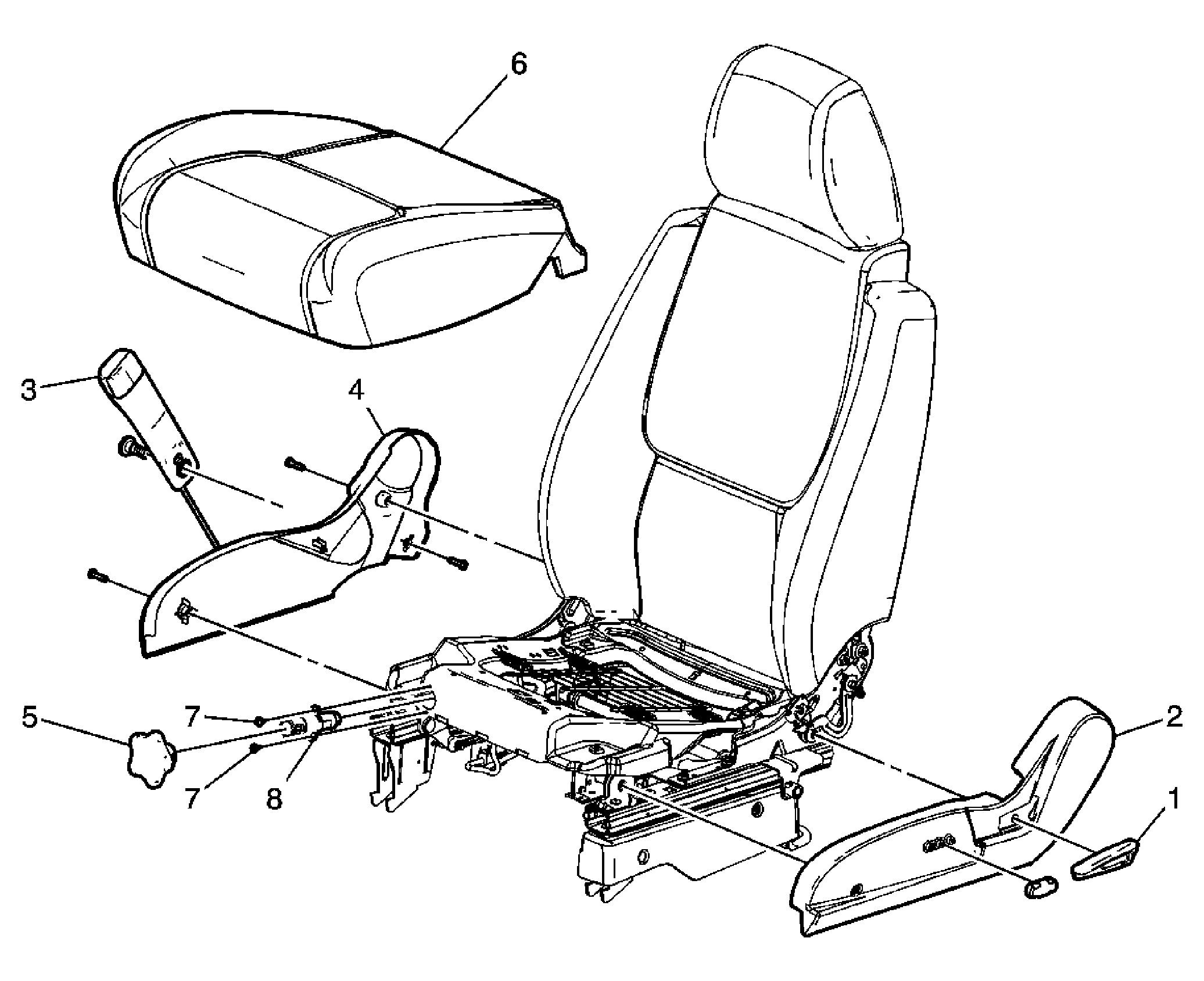

Fig 1: View Of Manual Lumbar Support Actuator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front seat. Refer to Front Seat Replacement - Bucket . Adjust the lumbar support knob until the lumbar basket is in the position of least support. Pull back on the lumbar cable sleeve. Remove the barrel end of the cable from the lumbar actuator.
1	Front Seat Recliner Handle Tip: Pull firmly forward on the handle to remove.
2	Front Seat Outer Adjuster Finish Cover Refer to Front Seat Cushion Outer Trim Panel Replacement (Non-Fold Flat) or Front Seat Cushion Outer Trim Panel Replacement (Fold Flat) .
3	Front Seat Belt Buckle Refer to Driver or Passenger Seat Belt Buckle Replacement .
4	Front Seat Inner Adjuster Finish Panel Refer to Front Seat Cushion Inner Trim Panel Replacement (Non-Fold Flat) .
5	Front Seat Lumbar Support Actuator Knob Tip: Remove the lumbar knob by pulling firmly on the knob.
6	Front Seat Cushion Cover and Pad Refer to Front Seat Cushion Cover and Pad Replacement .
7	Front Seat Lumbar Support Actuator Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
8	Front Seat Lumbar Support Actuator
