Windshield Upper Garnish Molding Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

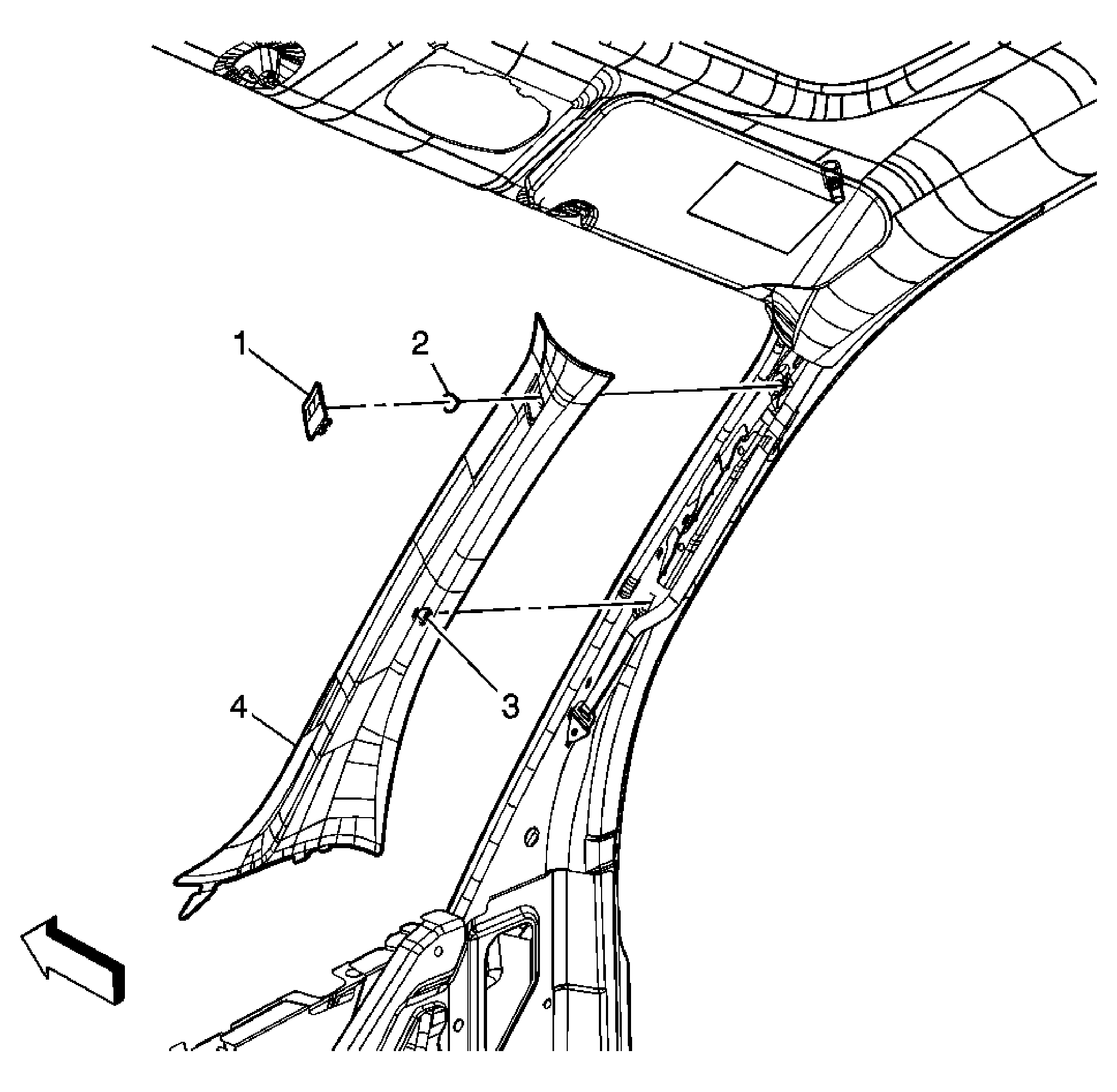

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Disable the roof rail SIR system. Refer to SIR Disabling and Enabling . |
|
| 1 | Windshield Side Garnish Molding Cover |
| 2 | Windshield Side Garnish Screw
CAUTION:
Refer to Fastener Caution
.
Tighten: 9 N.m (80 lb in) |
| 3 | Windshield Garnish Molding Clip Retainer |
| 4 | Windshield Garnish Molding Assembly Tip: Starting at the top, gently pull on the garnish molding to disengage the clips. |
