Sunshade Anchor Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

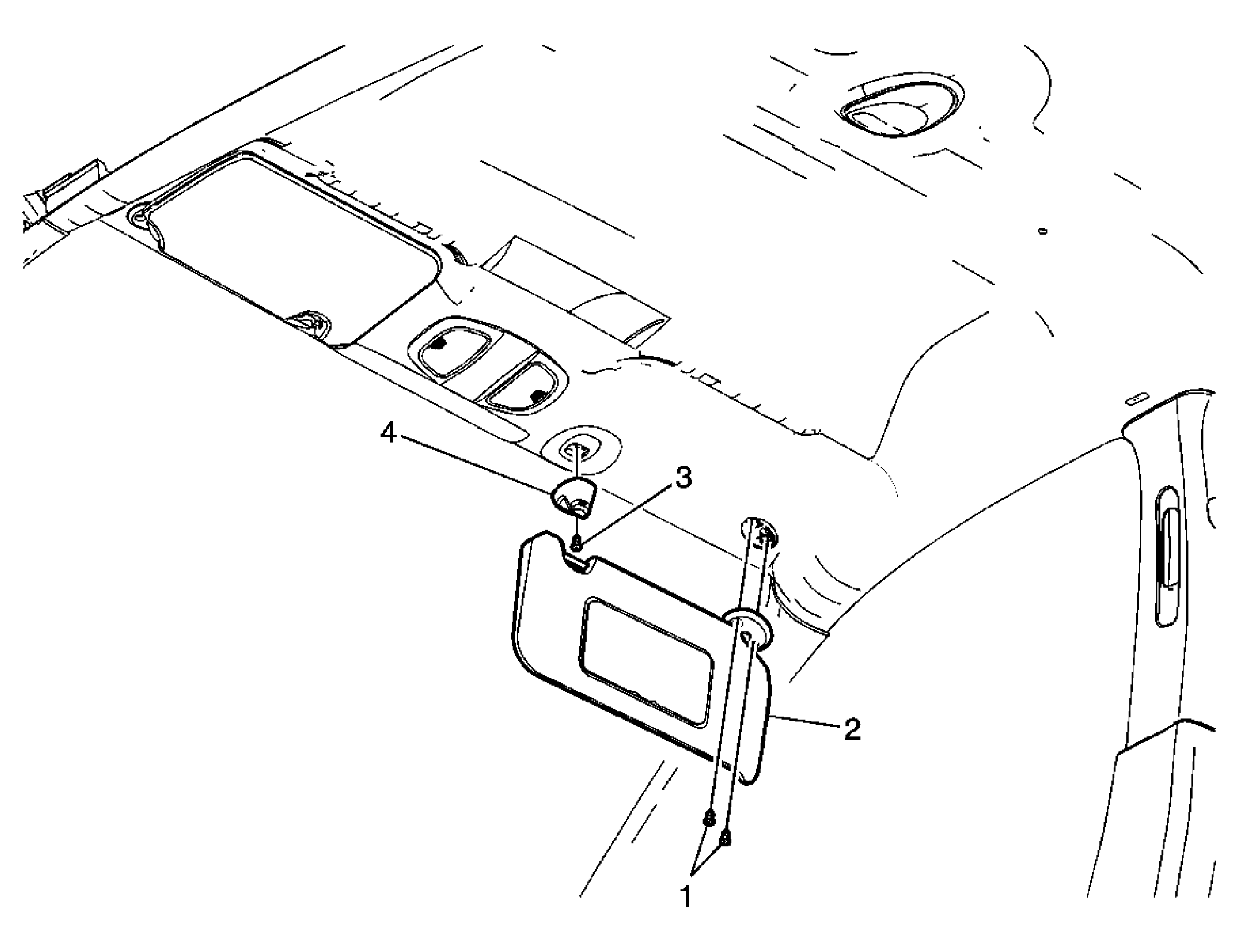

| Callout | Component Name |
|---|---|
| 1 | Sunshade Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Sunshade Assembly Tip: Disconnect the electrical connector, if equipped. |
| 3 | Sunshade Support Screw Tighten: 2.5 N.m (22 lb in) |
| 4 | Sunshade Support |
