Windshield Frame Applique Replacement
WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

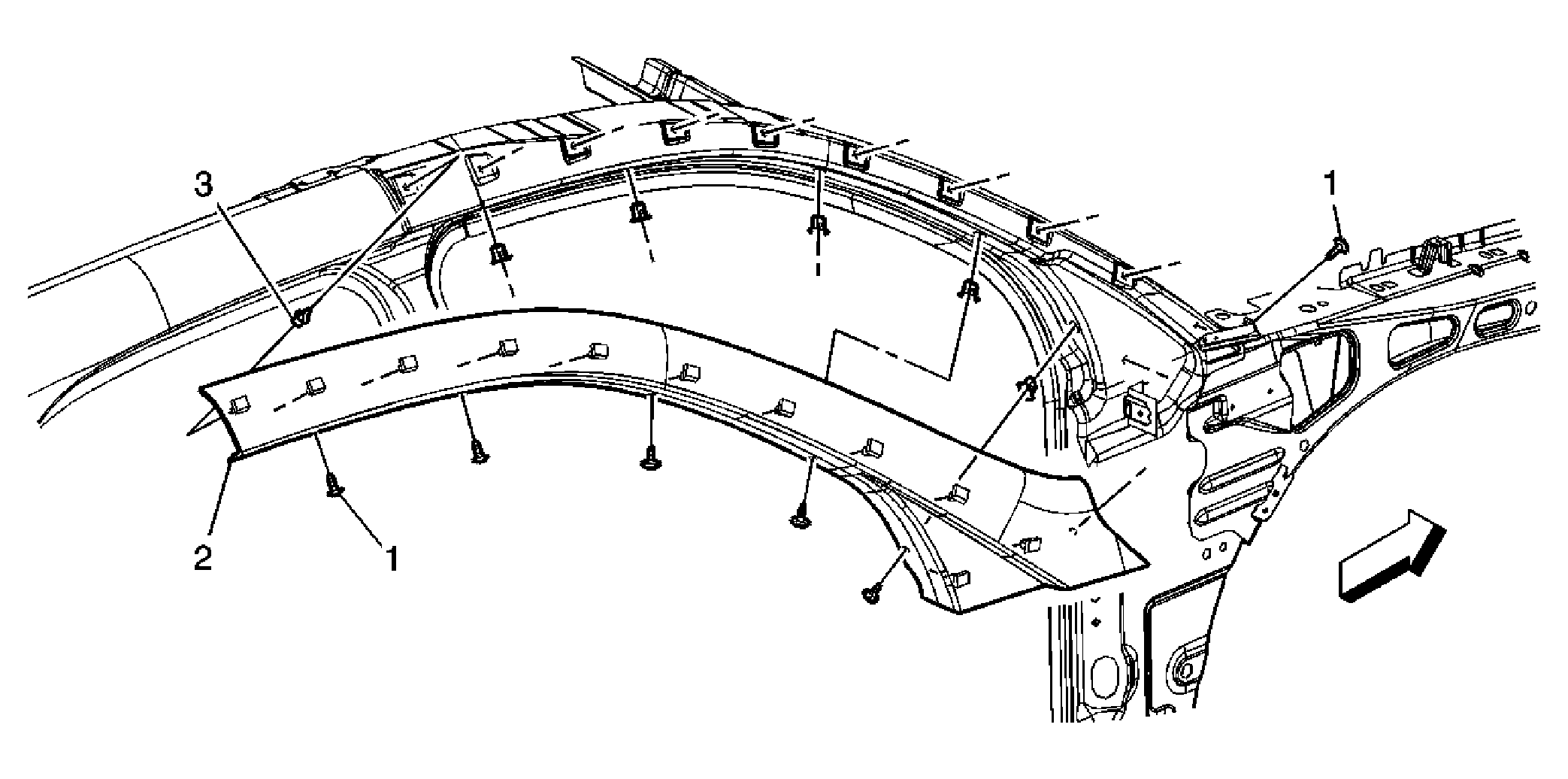

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Open the front door in order to access and remove the applique screws. |
|
| 1 | Windshield Frame Filler Panel Applique Screw (Qty: 6)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Windshield Frame Filler Panel Applique Assembly Tip: The applique is to be pulled gently outboard in order to release the retainers and remove. |
| 3 | Windshield Frame Filler Panel Applique Retainer (Qty: 11) |
