Liftgate Emblem/Nameplate Replacement (Torrent)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

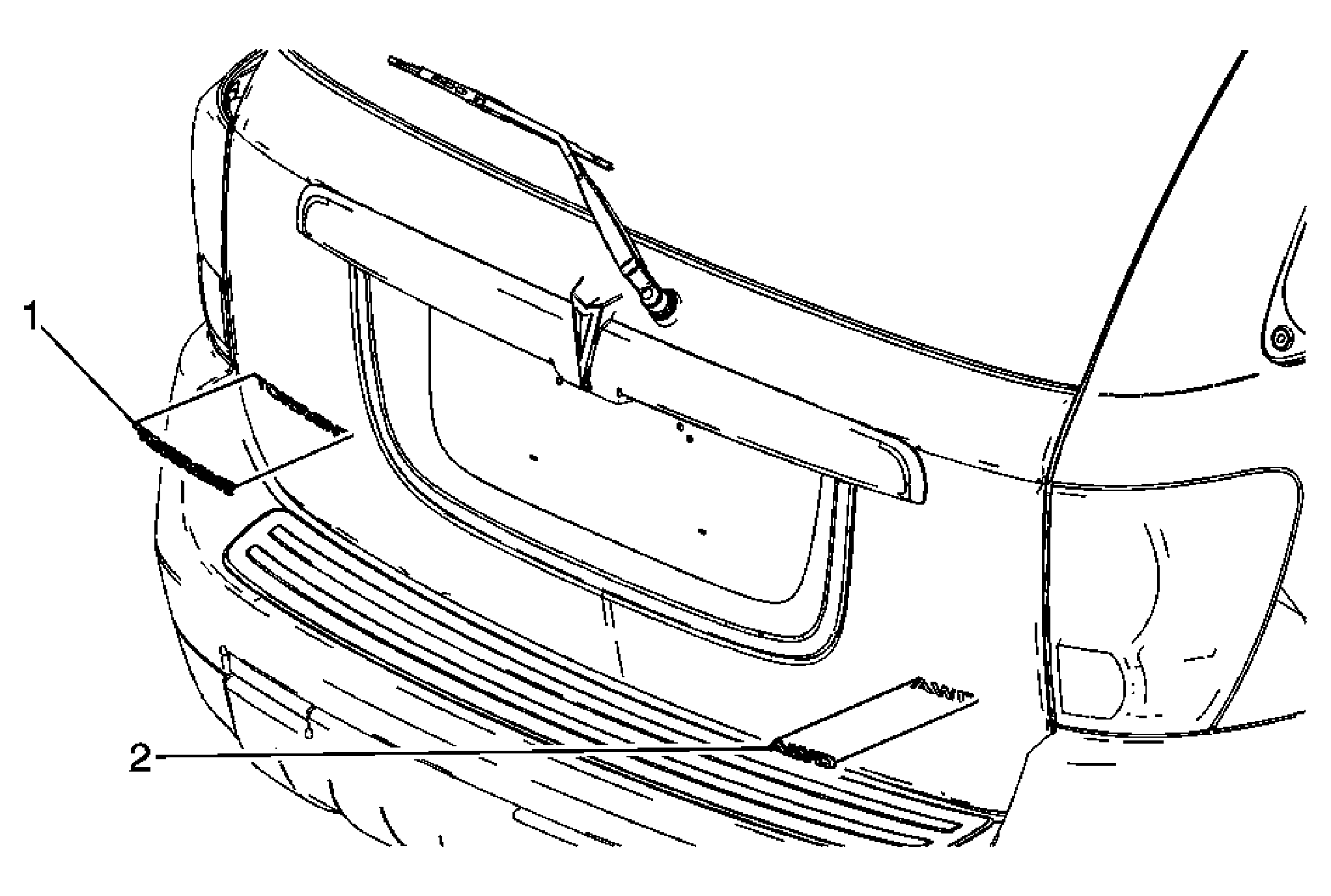

Fig 1: Identifying Liftgate Emblem/Nameplate (Torrent)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Liftgate Emblem (TORRENT) Procedure When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Use a J 25070 or equivalent to remove the old nameplate. Clean all adhesive from rear compartment lid, wipe surface dry with a clean lint-free towel prior to installing new nameplate. Apply palm pressure to ensure the emblem has full adhesion to the rear liftgate.
2	Rear Liftgate Emblem (AWD) Procedure When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Use a J 25070 or equivalent to remove the old nameplate. Clean all adhesive from rear compartment lid, wipe surface dry with a clean lint-free towel prior to installing new nameplate. Apply palm pressure to ensure the emblem has full adhesion to the rear liftgate.

Callout

Component Name

Rear Liftgate Emblem (TORRENT)

Procedure

When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
Use a J 25070 or equivalent to remove the old nameplate. Clean all adhesive from rear compartment lid, wipe surface dry with a clean lint-free towel prior to installing new nameplate.
Apply palm pressure to ensure the emblem has full adhesion to the rear liftgate.

Rear Liftgate Emblem (AWD)

Procedure

When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
Use a J 25070 or equivalent to remove the old nameplate. Clean all adhesive from rear compartment lid, wipe surface dry with a clean lint-free towel prior to installing new nameplate.
Apply palm pressure to ensure the emblem has full adhesion to the rear liftgate.
