Front Side Door Emblem/Nameplate Replacement (GM)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

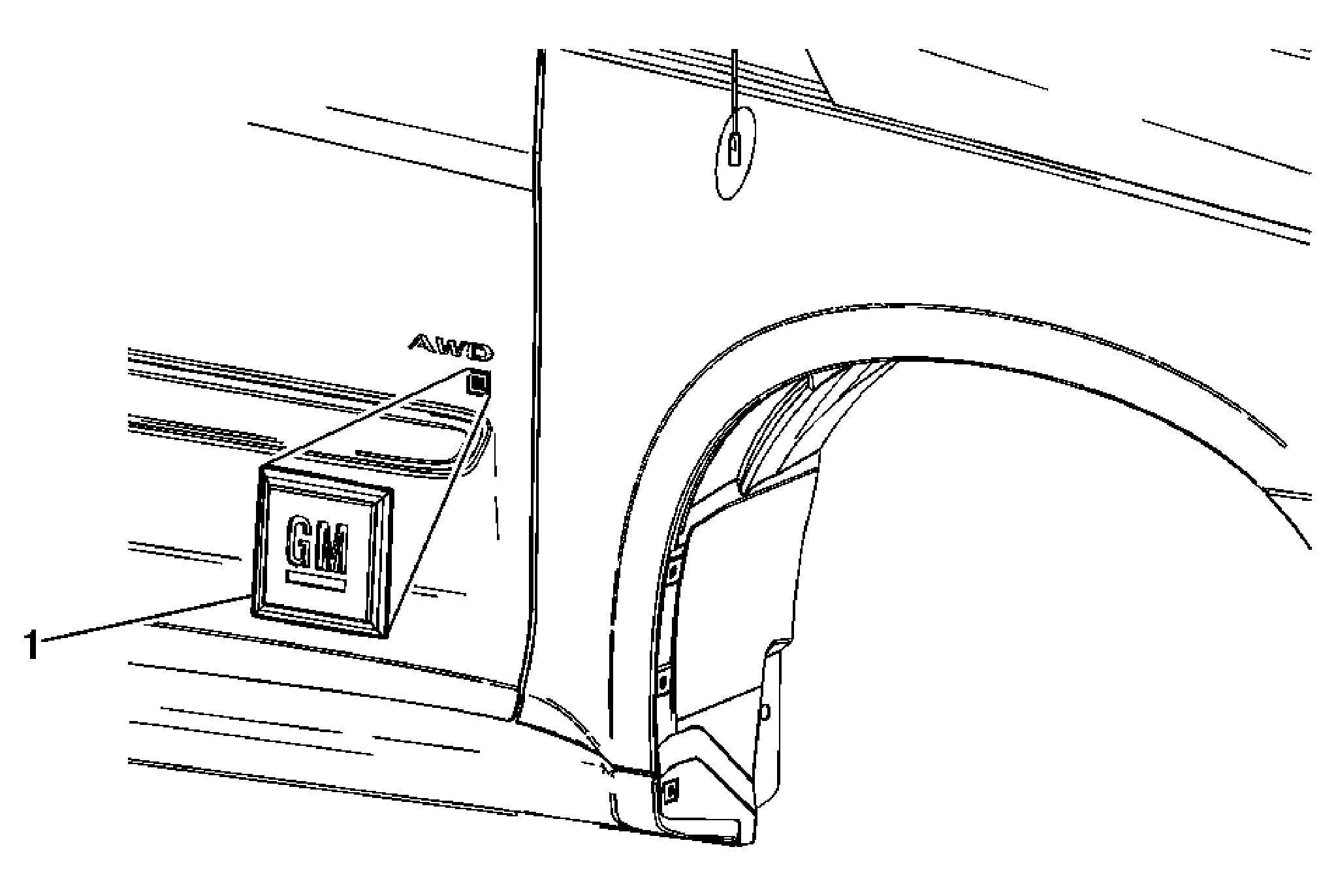

Fig 1: Door Emblem/Nameplate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Door Nameplate (GM) Procedure When removing protective liners from adhesive backed nameplates, be careful not to touch the tape with hands and do not allow the tape to come in contact with dirt or any foreign matter prior to adhesion. Use a J 25070 or equivalent to remove the old nameplate. Clean all the adhesive residue from the fender, wipe the surface dry with a clean lint-free towel prior to installing new nameplate. Ensure full adhesion is made once the nameplate has been installed.

Callout

Component Name

Front Door Nameplate (GM)

Procedure

When removing protective liners from adhesive backed nameplates, be careful not to touch the tape with hands and do not allow the tape to come in contact with dirt or any foreign matter prior to adhesion.
Use a J 25070 or equivalent to remove the old nameplate. Clean all the adhesive residue from the fender, wipe the surface dry with a clean lint-free towel prior to installing new nameplate.
Ensure full adhesion is made once the nameplate has been installed.
