Front Bumper Upper Fascia Grille Replacement (Torrent)

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

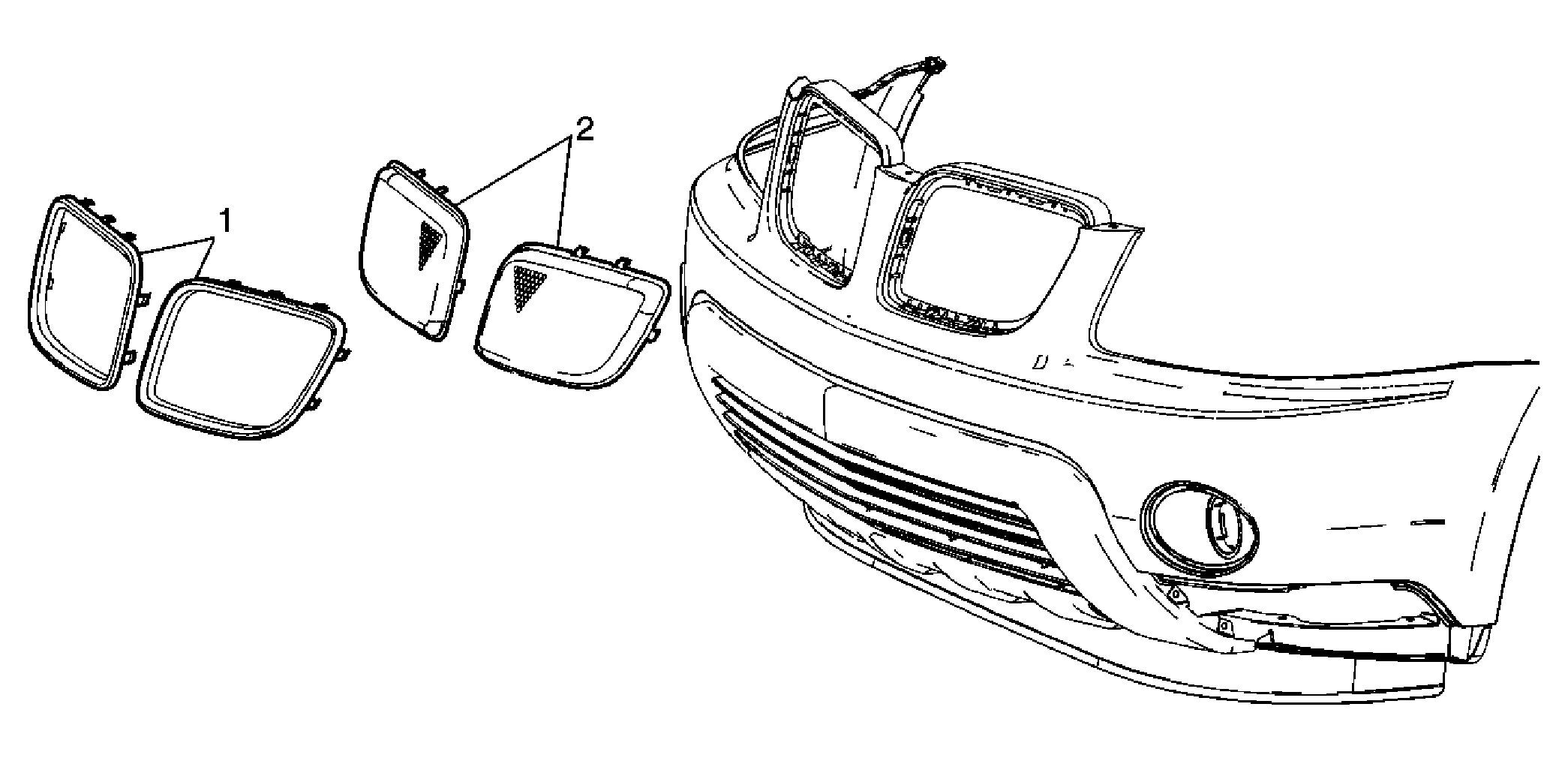

Fig 1: View Of Upper Front Bumper Fascia Grille (Torrent)
GM1663948Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the front fascia. Refer to Front Bumper Fascia Replacement (SS) or Front Bumper Fascia Replacement (Torrent) or Front Bumper Fascia Replacement (Equinox) .
1 Front Fascia Grille Bezel (Qty: 2)
Tip:  Release the tabs that retain the bezel to the front fascia from the back side of the fascia.
2 Front Fascia Grille
Tip:  Pull the grille out at the bottom first to release from the fascia.
