Wheels/Vehicle Underbody Component Views

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

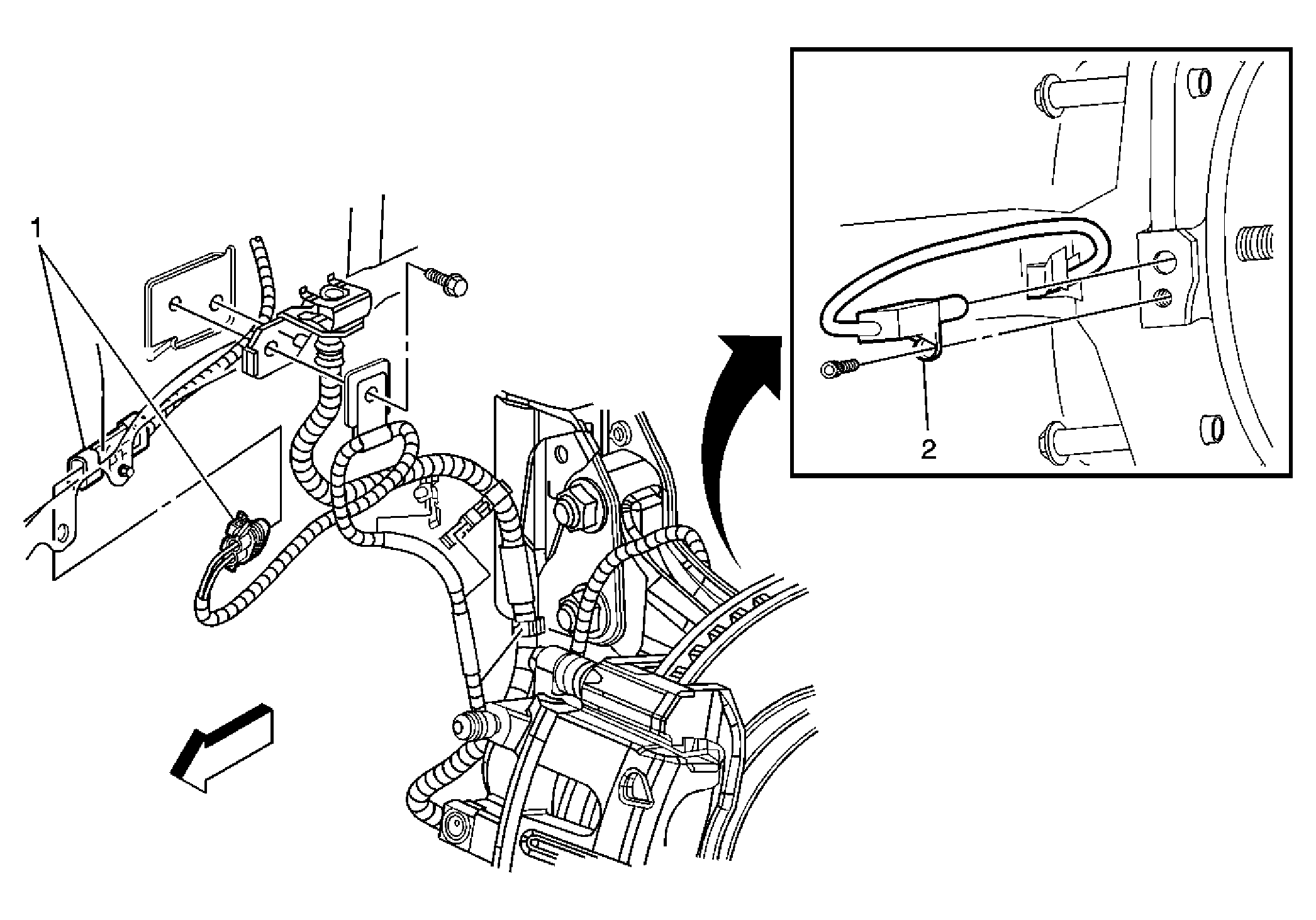

Fig 1: View of LF Suspension Harness Routing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X103 Left Shown, X104 Right Similar
2	Wheel Speed Sensor (WSS) - Left Front, Right Front Similar

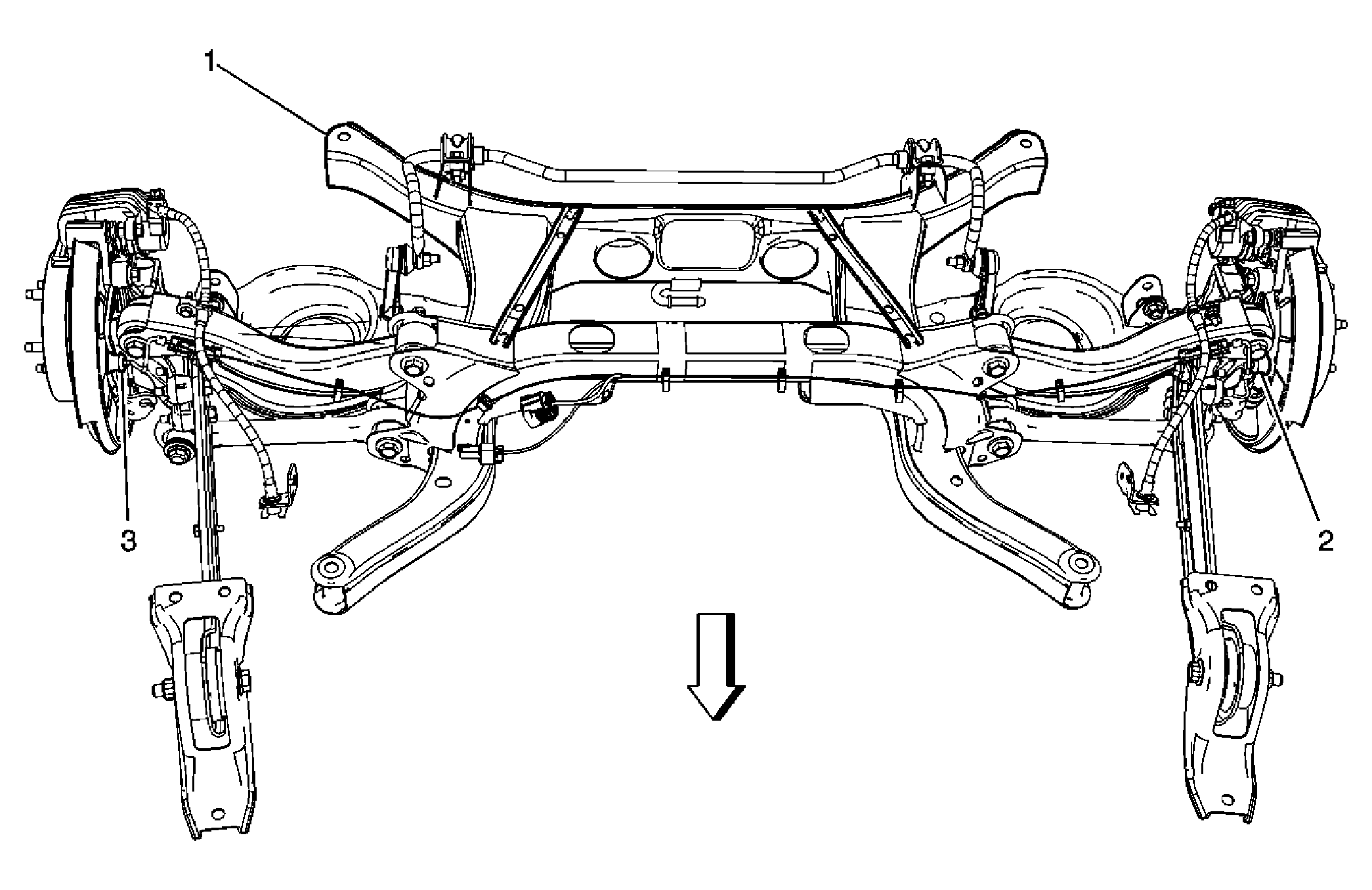

Fig 2: View Of Rear ABS Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Cradle
2	Wheel Speed Sensor (WSS) - Left Rear
3	Wheel Speed Sensor (WSS) - Right Rear

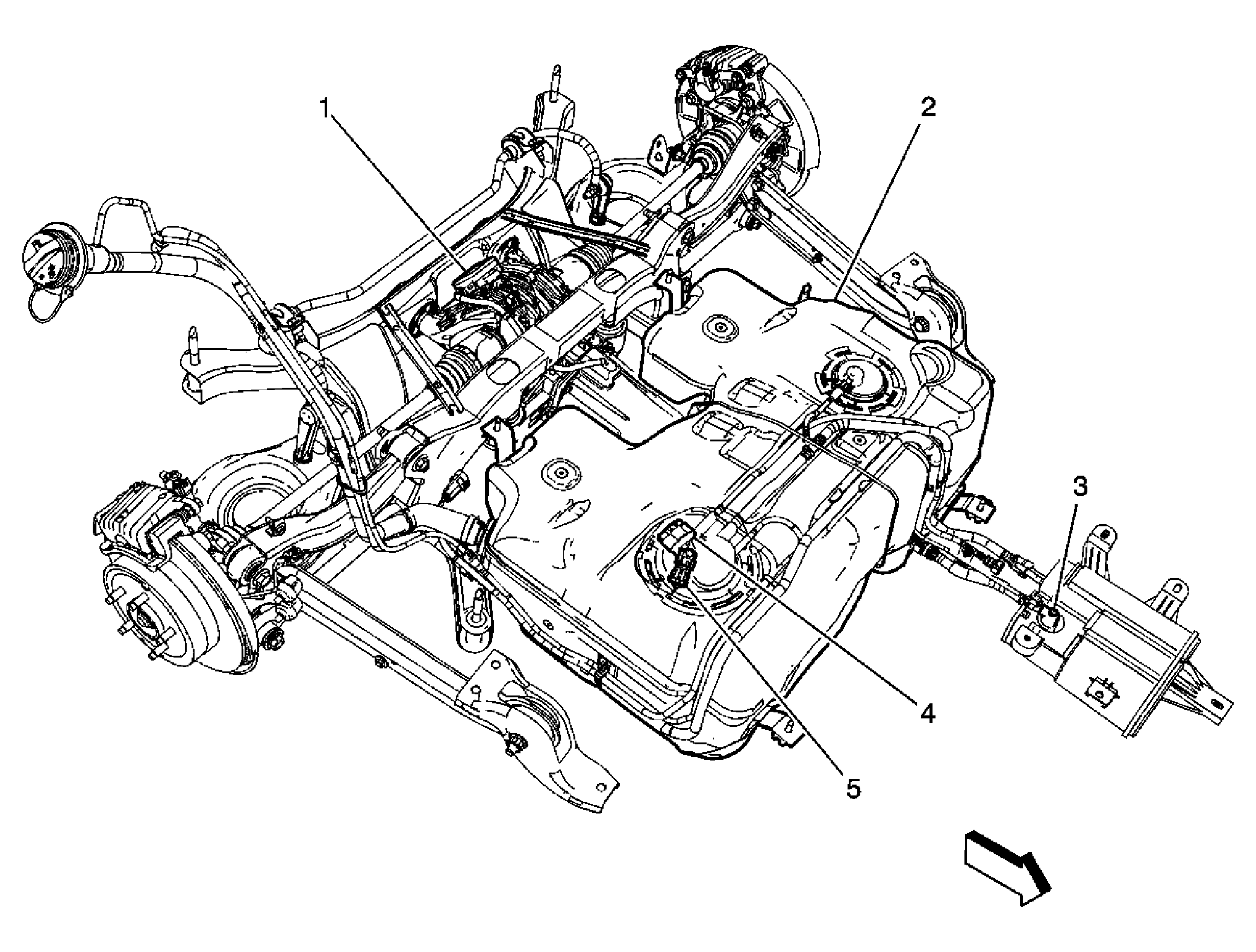

Fig 3: Near Rear Differential View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Differential Clutch Control Module (MH2/M09)
2	Fuel Tank
3	Evaporative Emission (EVAP) Canister Vent Solenoid Valve
4	Fuel Pump and Sender Assembly
5	Fuel Tank Pressure (FTP) Sensor
