Luggage Compartment/Rear of Vehicle Component Views

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

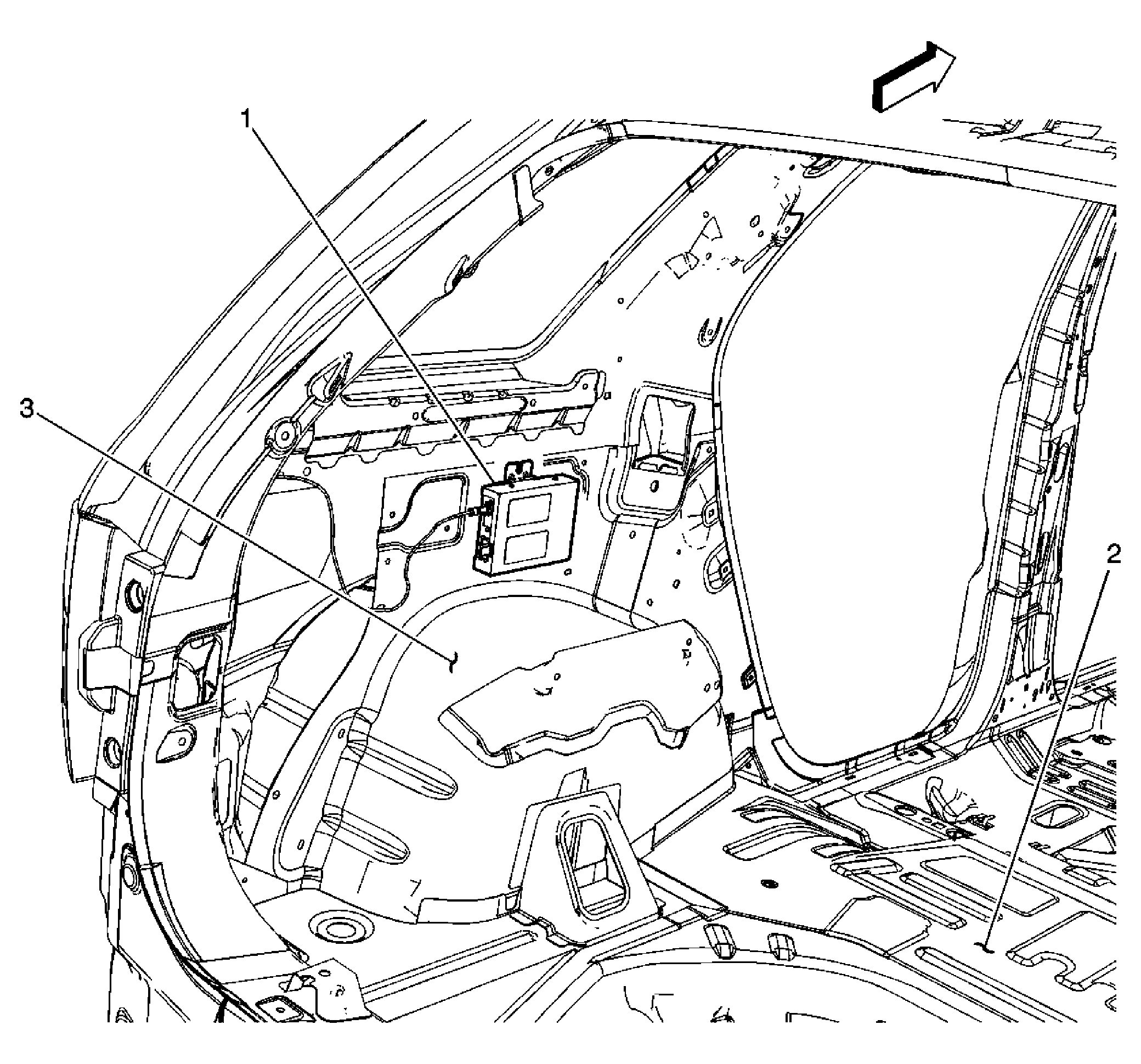

Fig 1: Locating Digital Radio Receiver (U2K)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)
2	Rear Floor
3	Left Rear Wheel Panel

Fig 2: Locating Remote Control Door Lock Receiver (RCDLR) & Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR)
2	Remote Control Door Lock Receiver (RCDLR) Antenna

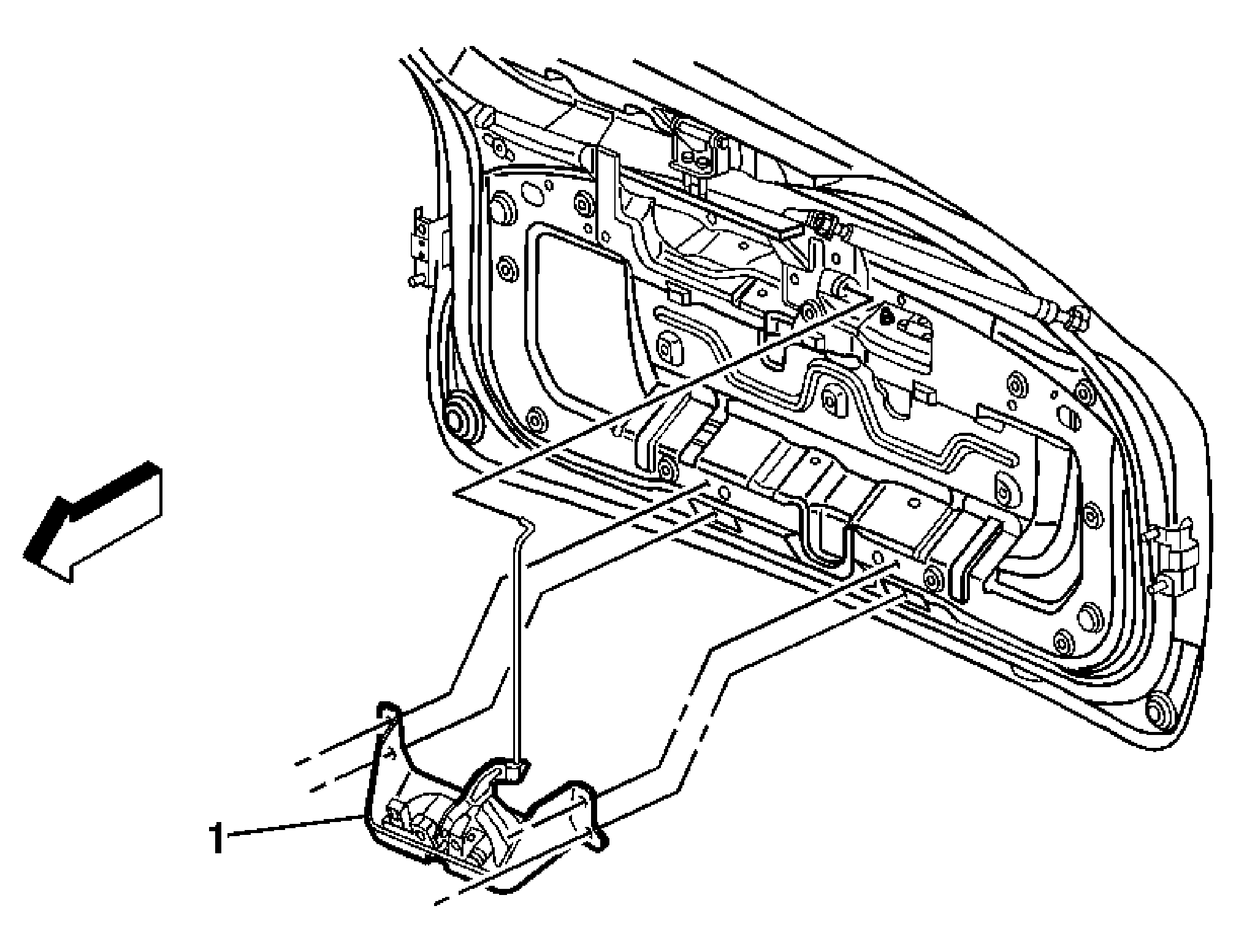

Fig 3: Identifying Liftgate Latch Location

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate Latch

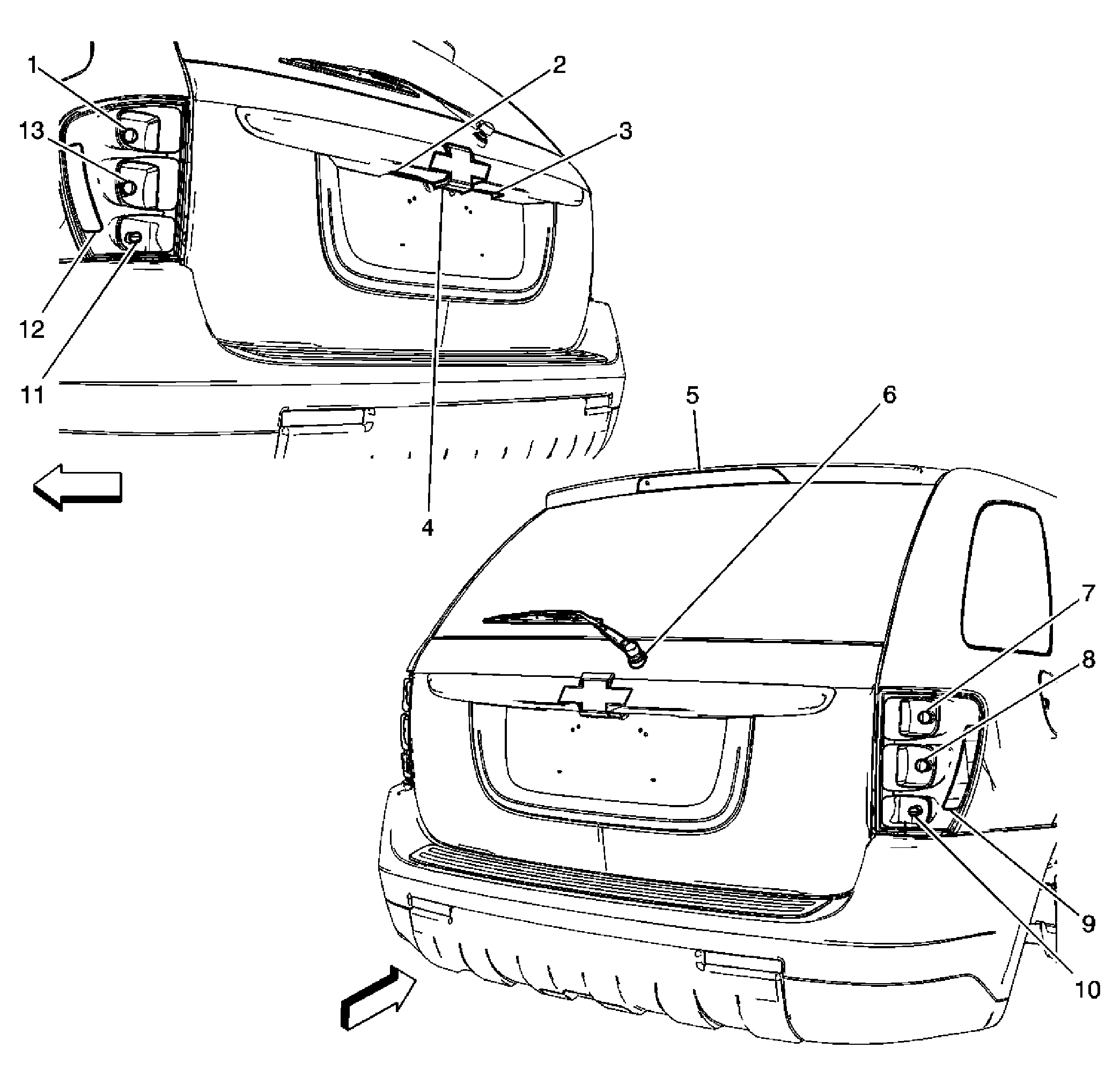

Fig 4: Rear Exterior Lighting/Liftgate Components (Chevrolet)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail/Stop Lamp - Left
2	License Lamp - Left
3	License Lamp - Right
4	Liftgate Release Switch
5	Center High Mounted Stop Lamp (CHMSL)
6	Rear Window Wiper Motor
7	Tail/Stop Lamp - Right
8	Park/Turn Signal Lamp - Right Rear
9	Marker Lamp - Right Rear
10	Backup Lamp - Right
11	Backup Lamp - Left
12	Marker Lamp - Left Rear
13	Park/Turn Signal Lamp - Left Rear

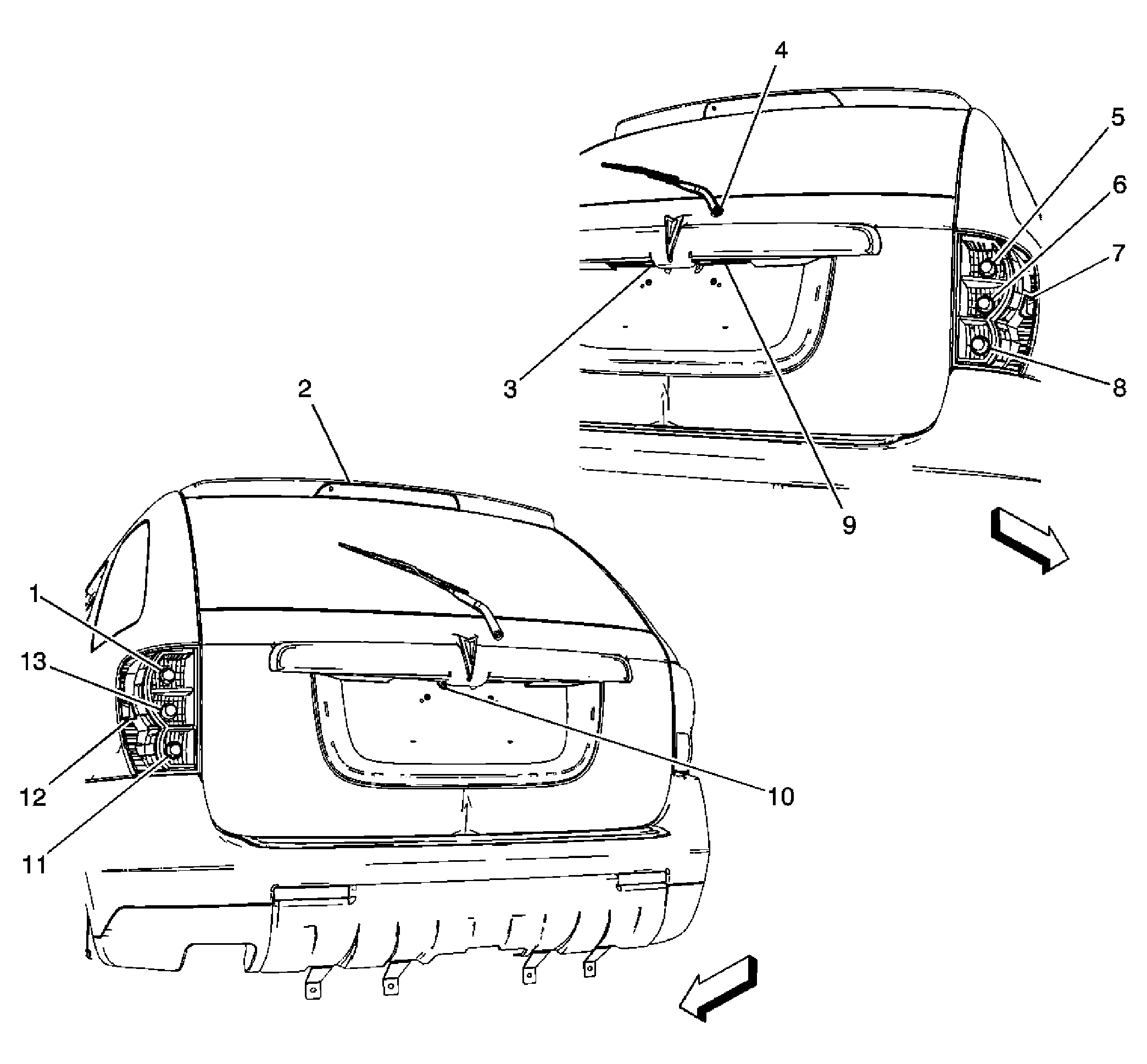

Fig 5: Rear Exterior Lighting/Liftgate Components (Pontiac)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail/Stop Lamp - Left
2	Center High Mounted Stop Lamp (CHMSL)
3	License Lamp - Left
4	Rear Window Wiper Motor
5	Tail/Stop Lamp - Right
6	Park/Turn Signal Lamp - Right Rear
7	Marker Lamp - Right Rear
8	Backup Lamp - Right
9	License Lamp - Right
10	Liftgate Release Switch
11	Backup Lamp - Left
12	Marker Lamp - Left Rear
13	Park/Turn Signal Lamp - Left Rear

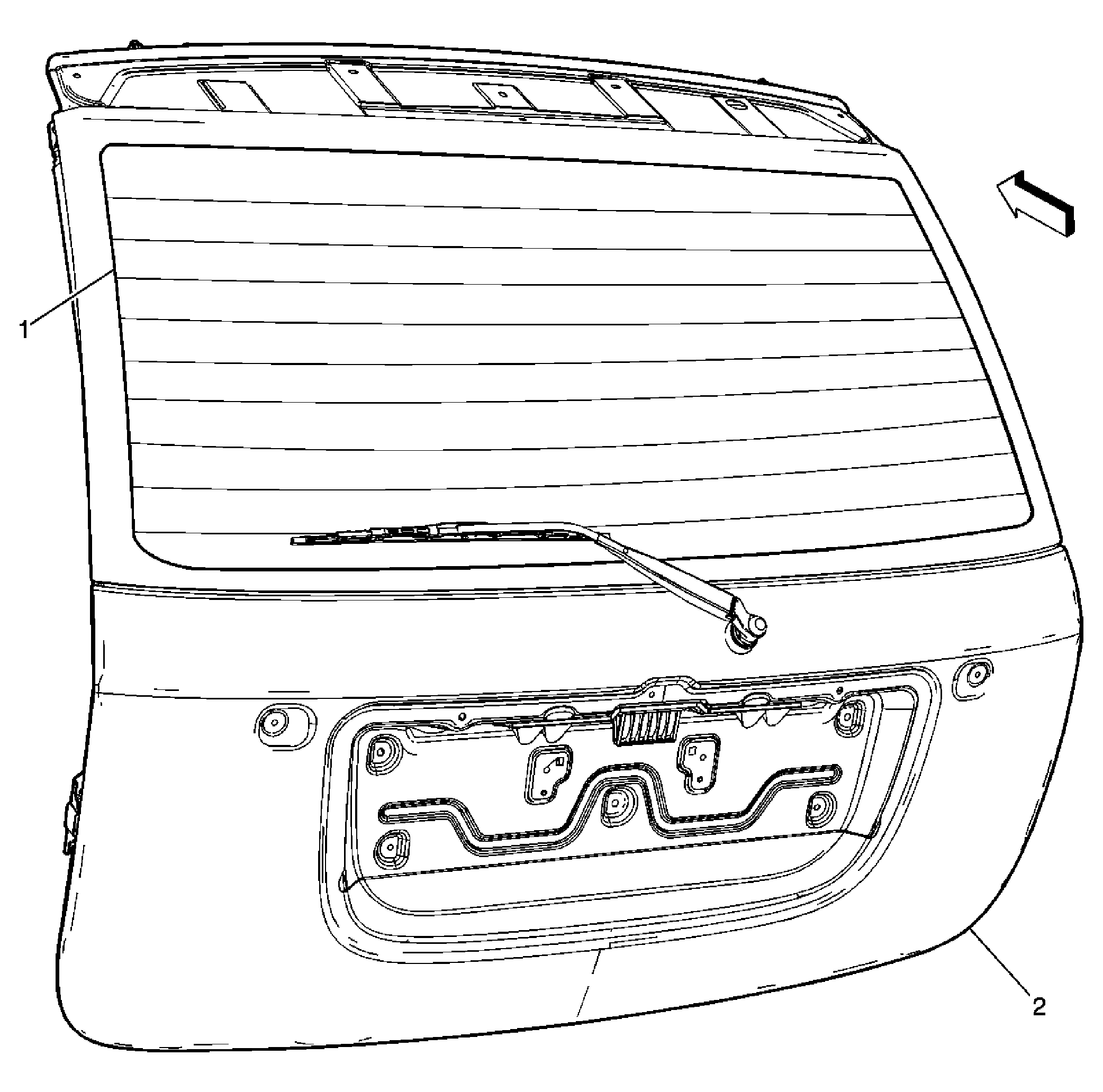

Fig 6: View Of Rear Window Defogger

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Liftgate
