Ground Views

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Forward Lamp Harness (Chevy)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Front Strut Tower
2	Fuse Block - Underhood X3 Connector
3	X101
4	G101
5	Radiator
6	X108 (LY7)

Fig 2: View Of Engine Harness - Front (LNJ)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Valve Cover
2	Engine Control Module (ECM) X2 Connector
3	Engine Control Module (ECM) X1 Connector
4	Fuse Block - Underhood
5	G105

Fig 3: Engine Harness - Rear (LNJ)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	X106
3	X105
4	G111
5	J100

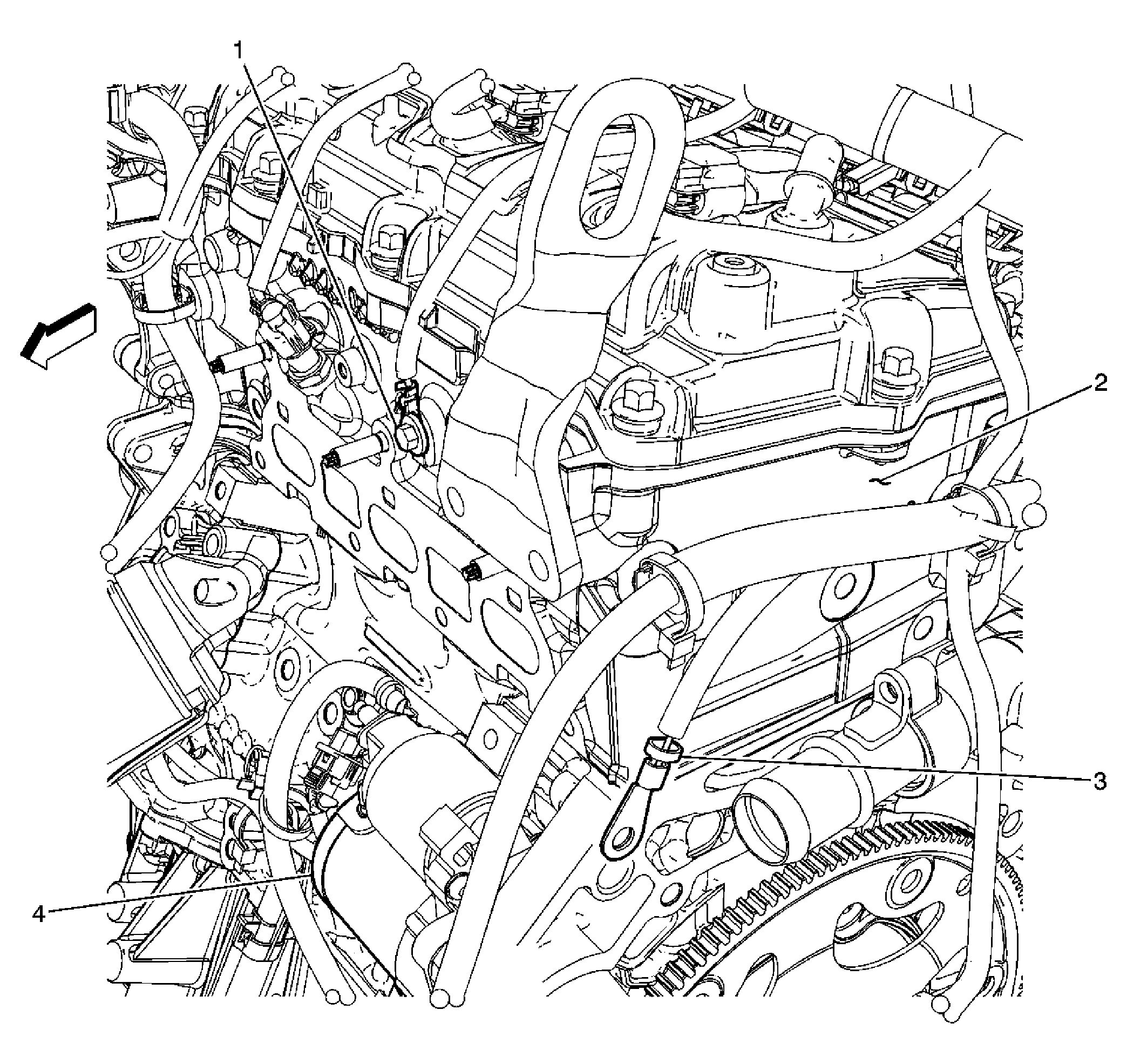

Fig 4: Locating Grounds G107 and G105 (LY7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G107
2	Front Cylinder Head
3	G105
4	Starter Motor

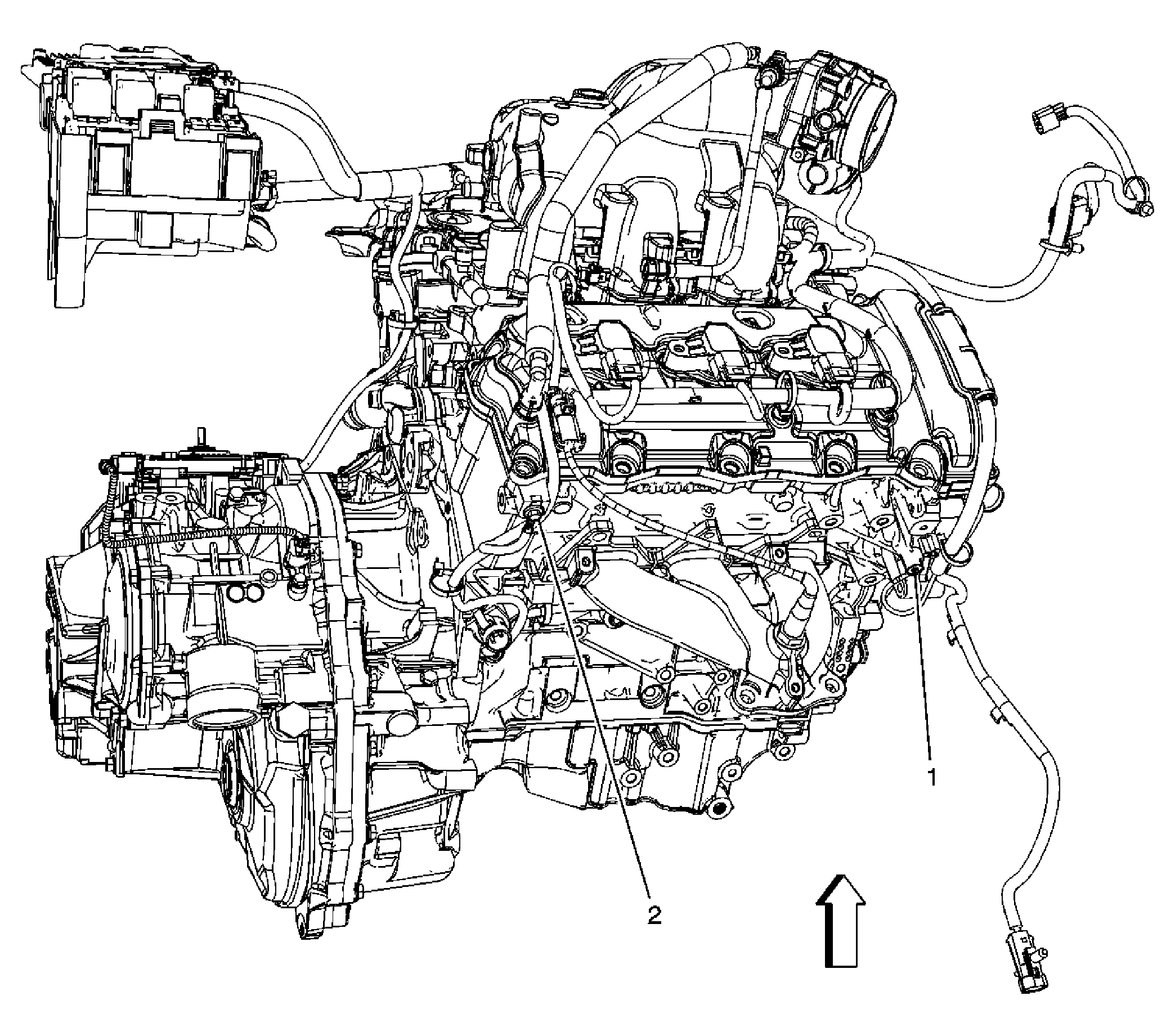

Fig 5: Engine Harness - Rear (LY7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G108
2	G109

Fig 6: View Of Power Steering Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Ring Terminal
2	G207

Fig 7: View Of I/P Harness - Passenger Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster Trim
2	J212
3	X214
4	G201
5	X206
6	X218
7	X216
8	G203
9	X226
10	X204
11	X210

Fig 8: Body Harness - Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X206
2	X600
3	X219
4	J307
5	X309
6	G311
7	X800
8	X700
9	X308 (AG1)
10	G301
11	J304
12	J308 (Chevy)
13	J302
14	J306
15	J204
16	X204
17	J202
18	X210
19	X500
20	J200
21	G205

Fig 9: View Of Body Harness - LR

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X401
2	X405
3	Left Rear Body Panel
4	Left Rear Wheel Well
5	G401
6	X409 (V92)
7	X420 (ASF)

Fig 10: Body Harness - Right Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X422 (UE1/U3U)
2	X421 (ASF)
3	X414
4	X405
5	X412 (UUC)
6	J409
7	G403
8	Right Rear Wheel Well
