Passenger Compartment/Roof Component Views

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

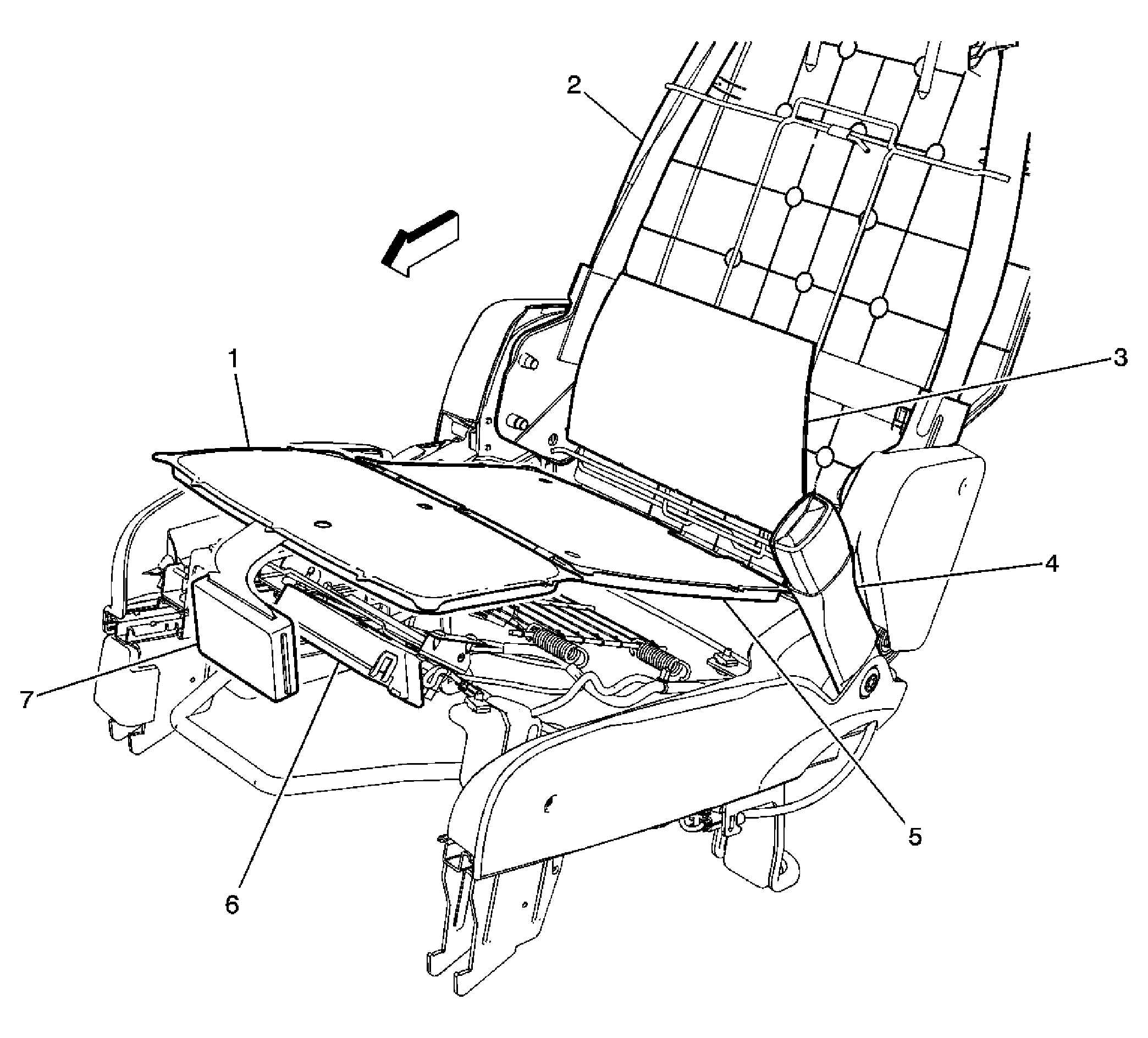

Fig 1: View Of Passenger Seat Components (Manual)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
2	Seat Frame
3	Heated Seat Element - Passenger Back (KA1)
4	Seat Belt Buckle - Passenger
5	Heated Seat Element - Passenger Cushion (KA1)
6	Heated Seat Control Module (KA1)
7	Inflatable Restraint Front Passenger Presence System (PPS) Module

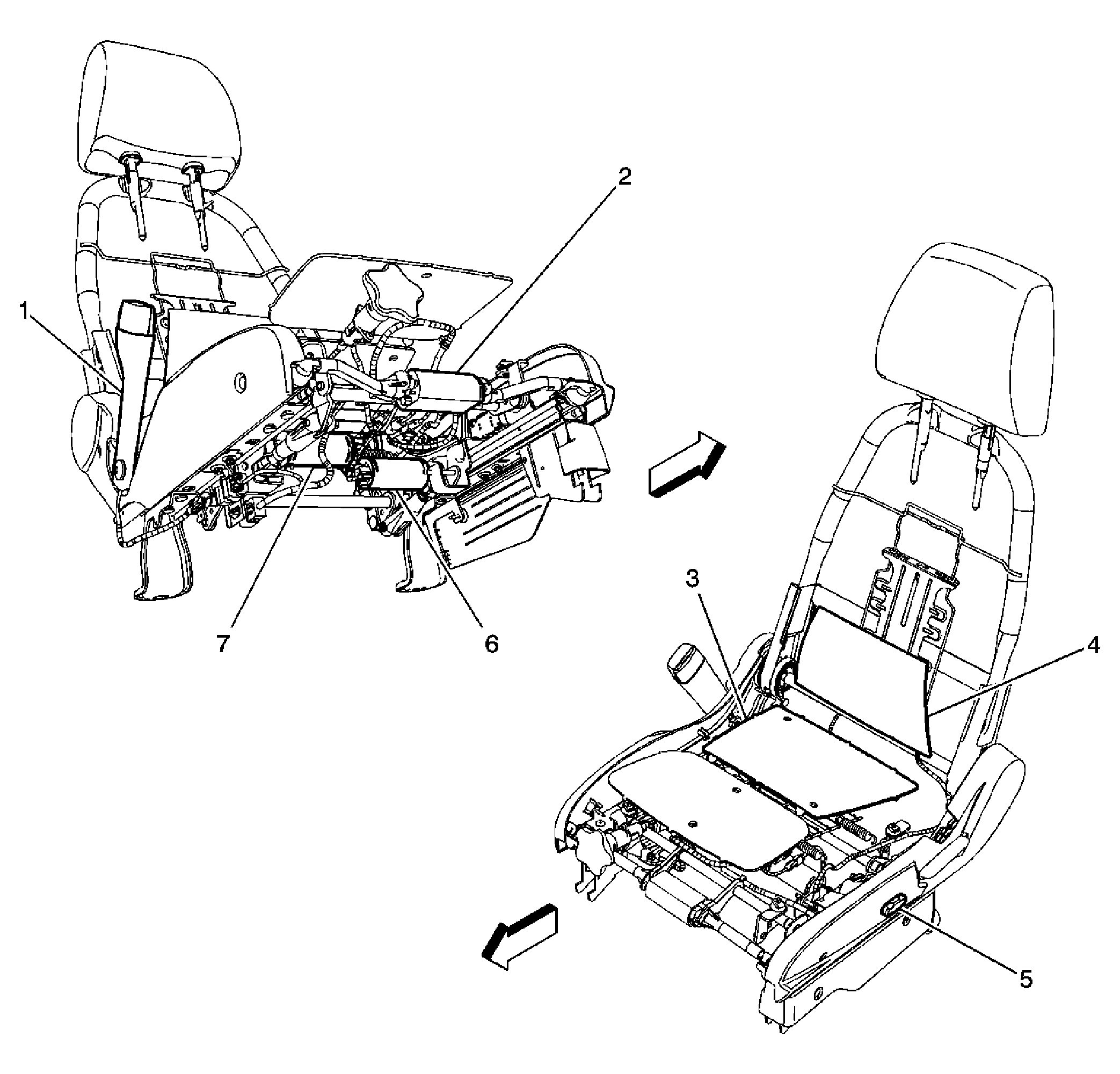

Fig 2: View Of Driver Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Buckle - Driver
2	Seat Horizontal Motor - Driver (AG1)
3	Heated Seat Element - Driver Cushion (KA1)
4	Heated Seat Element - Driver Back (KA1)
5	Seat Adjuster Switch - Driver (AG1)
6	Seat Rear Vertical Motor - Driver (AG1)
7	Seat Front Vertical Motor - Driver (AG1)

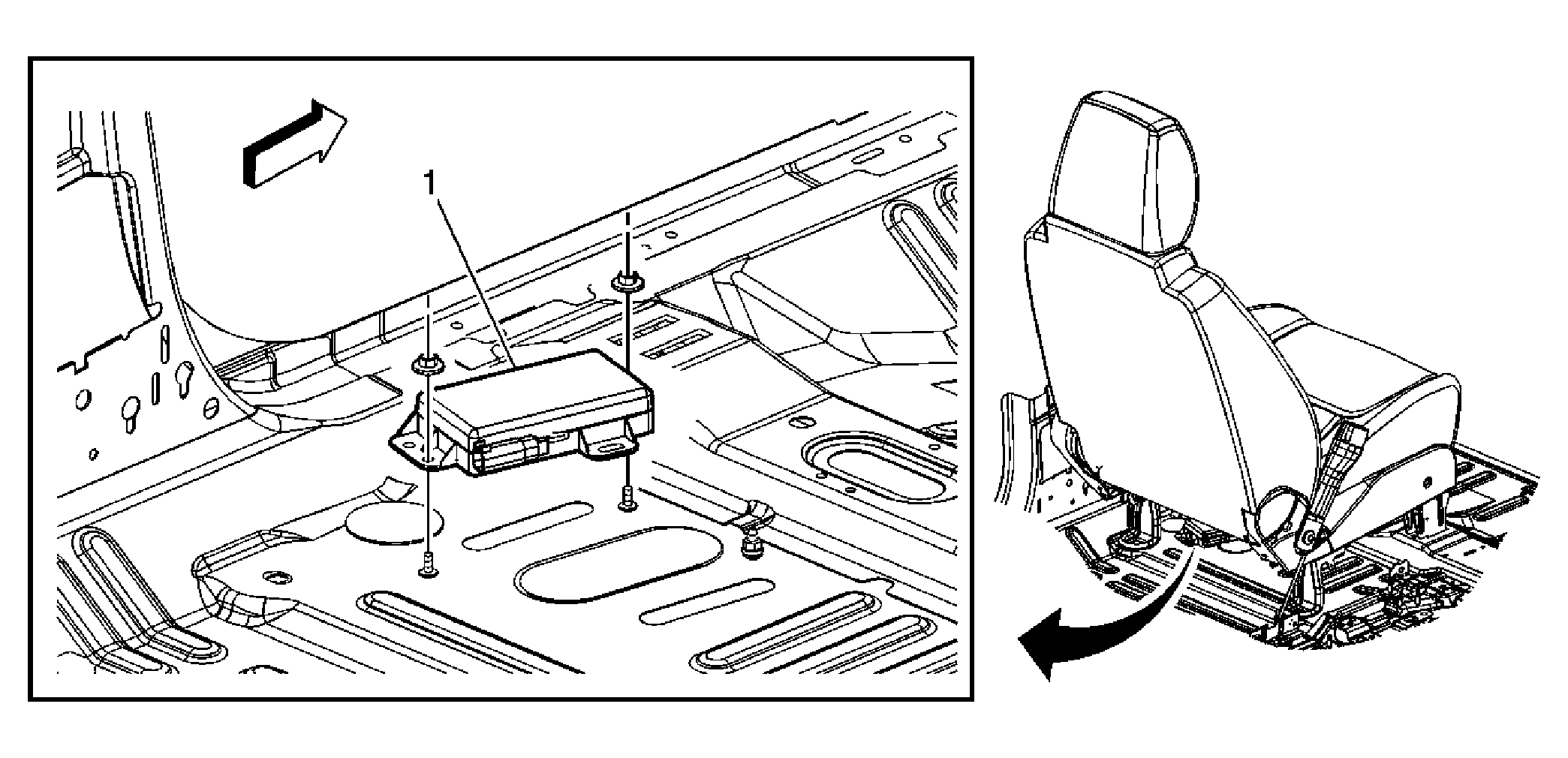

Fig 3: Vehicle Communication Interface Module (VCIM) Battery (UE1)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Interface Module (VCIM) Battery

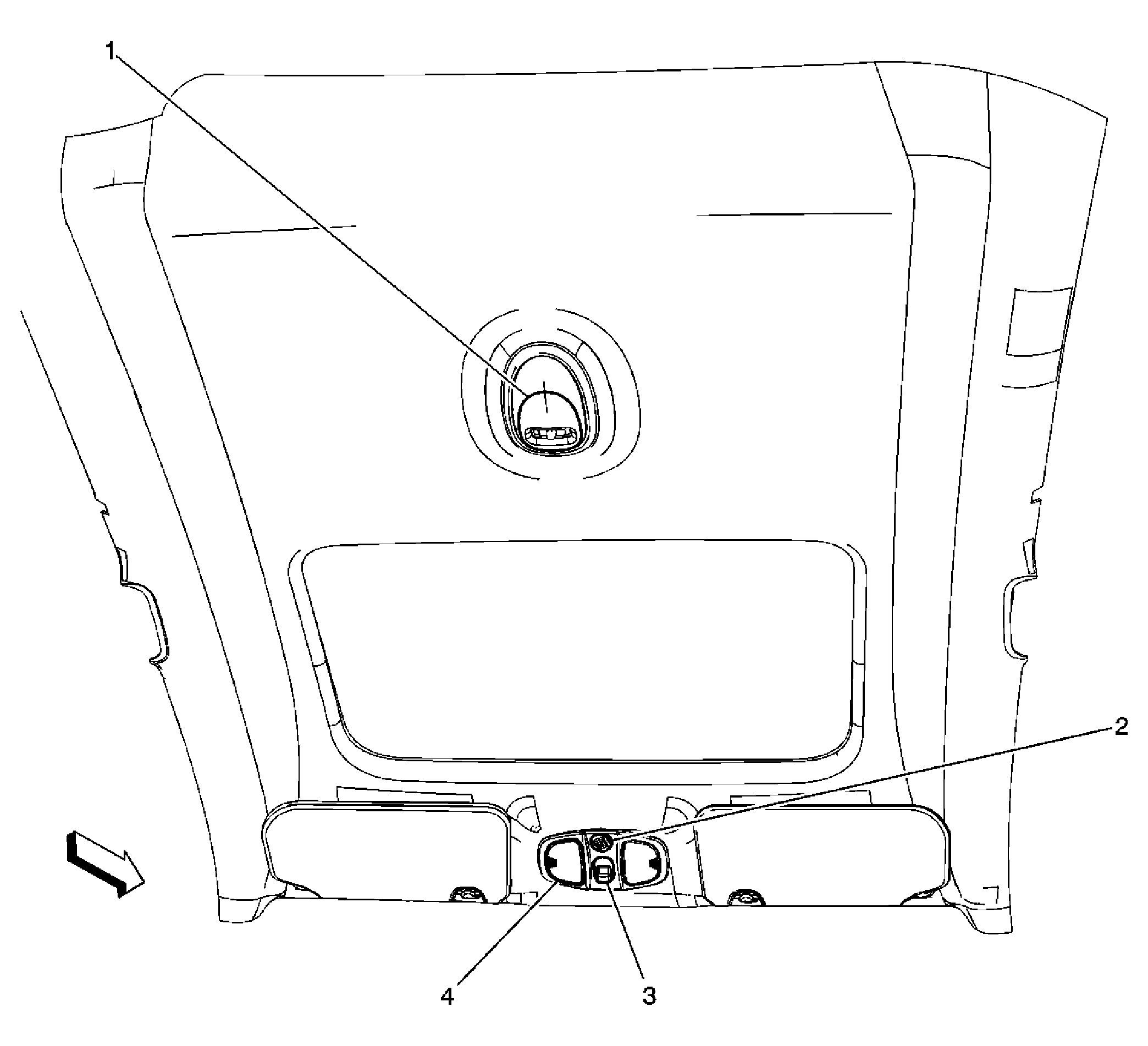

Fig 4: Front Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dome Lamp (without UUC)
2	Cellular Telephone Microphone (UE1)/Noise Compensation Microphone (U3U)
3	Sunroof Switch (CF5)
4	Overhead Console Courtesy/Reading Lamps

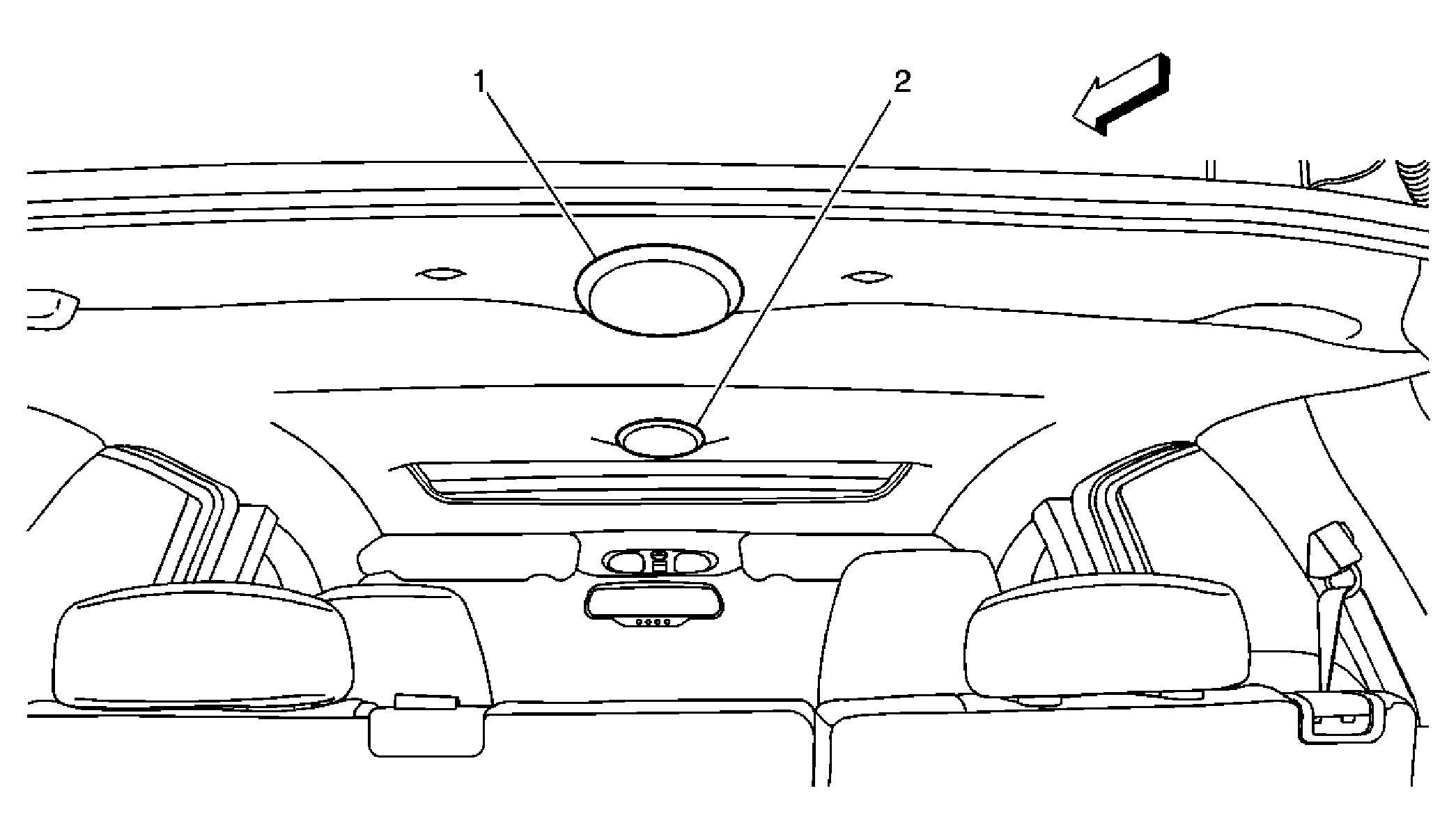

Fig 5: Rear Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cargo Lamp
2	Dome Lamp (without UUC)

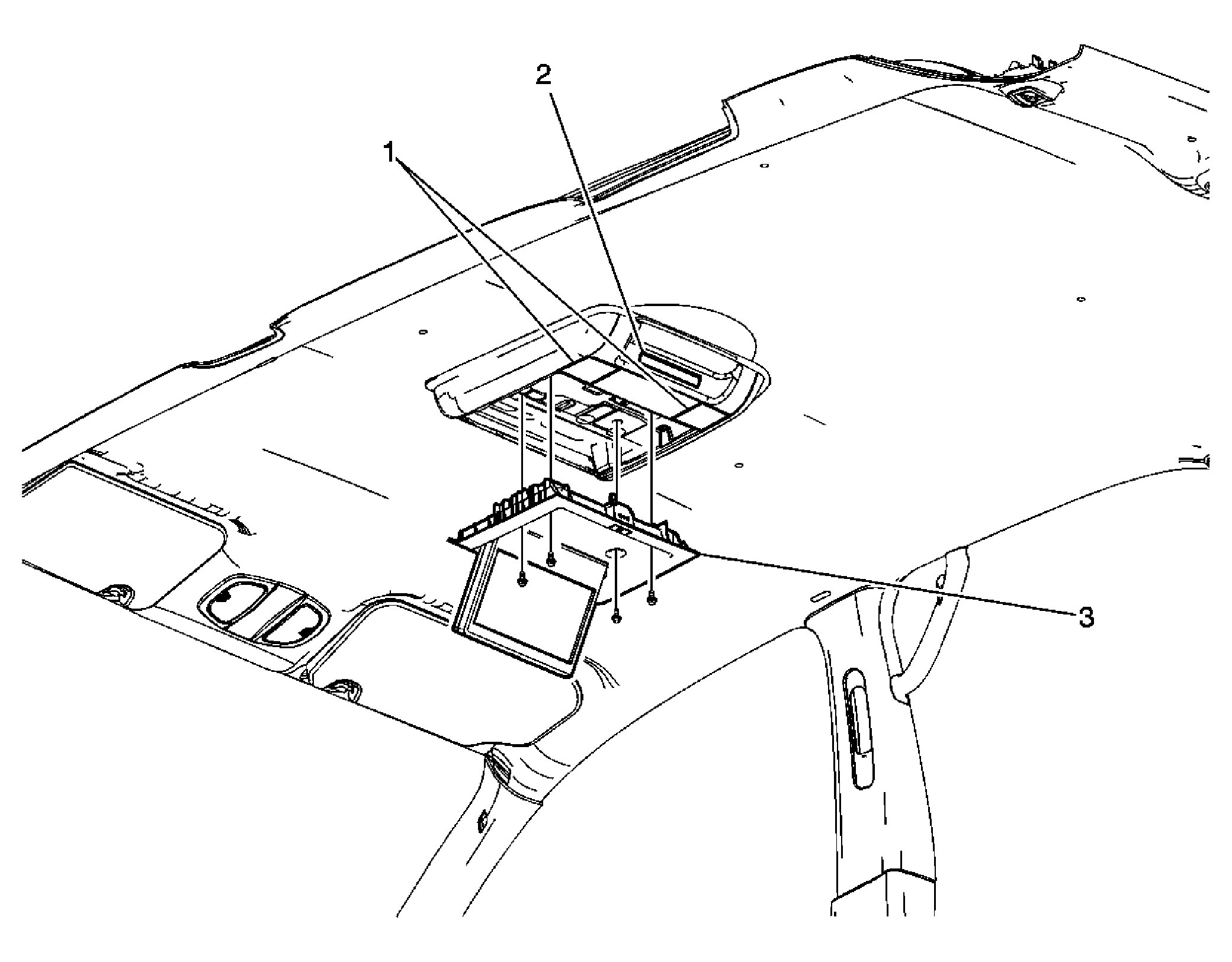

Fig 6: Video Display Components (UUC)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dome Lamp
2	Infrared Transmitter
3	Video Display

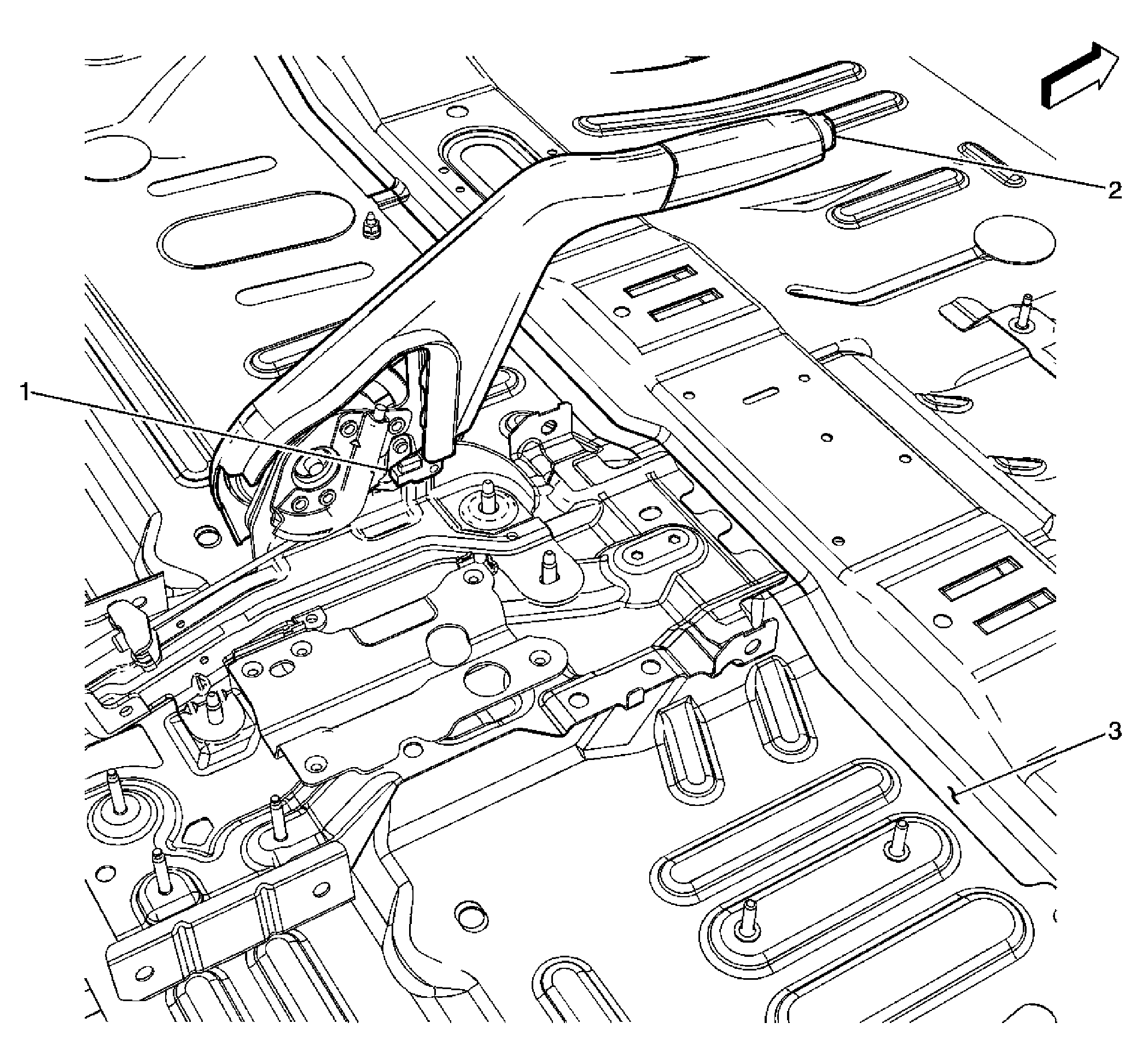

Fig 7: View Of Park Brake Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Switch
2	Park Brake Handle
3	Floor Panel

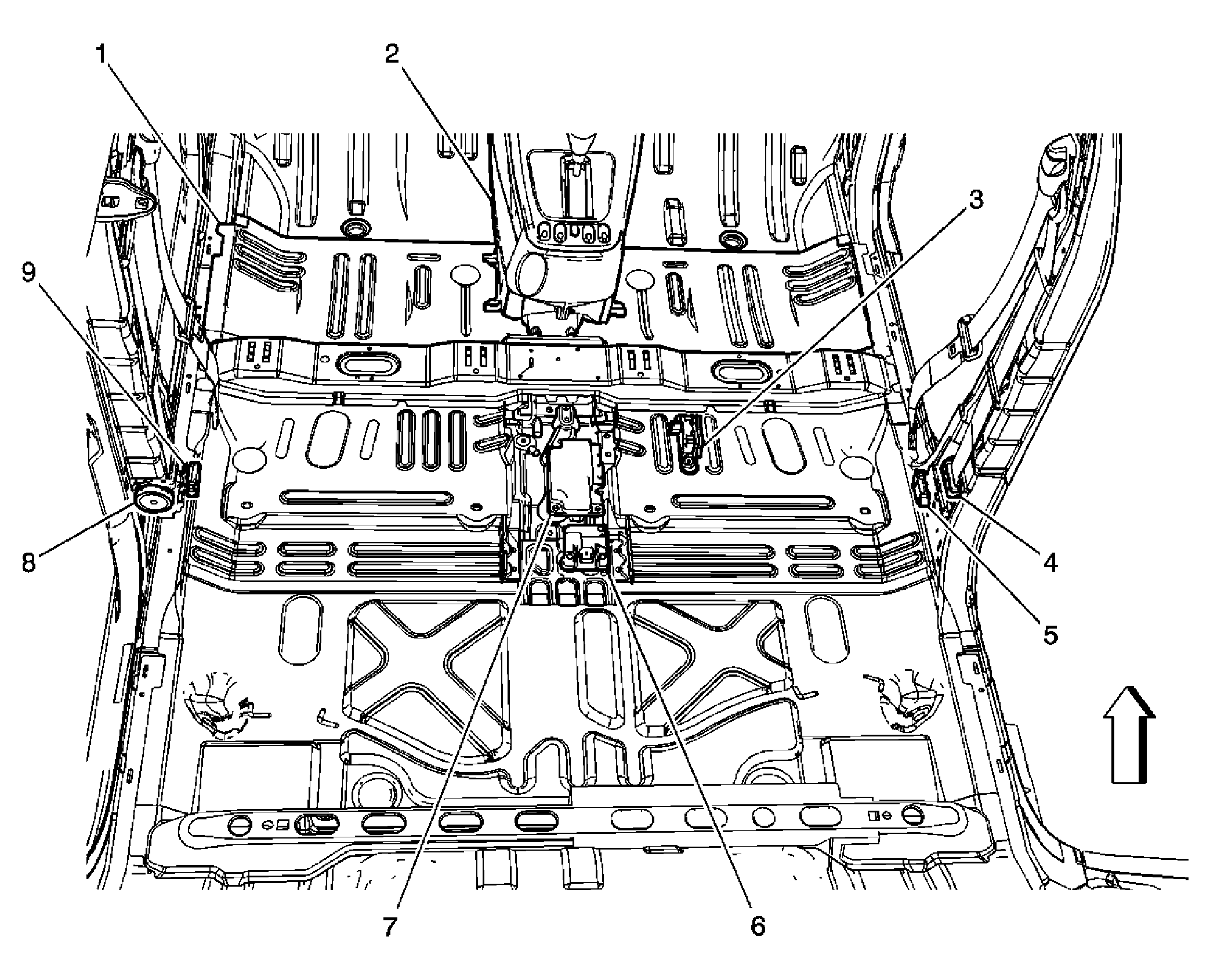

Fig 8: Center Of Floor View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Floor Panel
2	Console
3	Yaw and Lateral Accelerometer Sensor
4	Seat Belt Pretensioner - Right
5	Inflatable Restraint Side Impact Sensor (SIS) - Right (ASF)
6	Inflatable Restraint Vehicle Rollover Sensor (ASF)
7	Inflatable Restraint Sensing and Diagnostic Module (SDM)
8	Seat Belt Pretensioner - Left
9	Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)

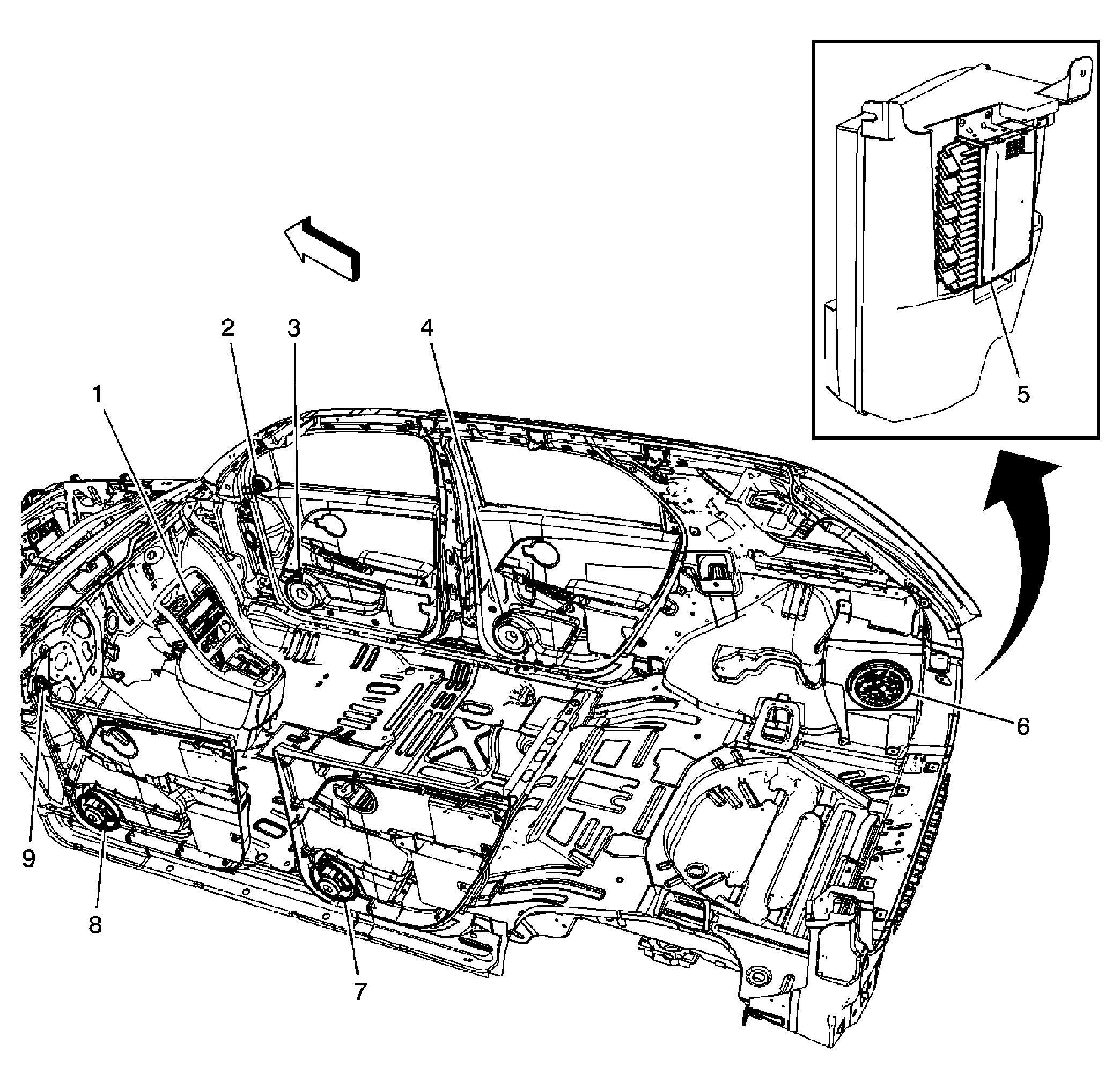

Fig 9: Identifying Audio Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	Speaker - Right Tweeter
3	Speaker - Right Front
4	Speaker - Right Rear
5	Audio Amplifier (U65)
6	Speaker - Subwoofer (U65)
7	Speaker - Left Rear
8	Speaker - Left Front
9	Speaker - Left Tweeter

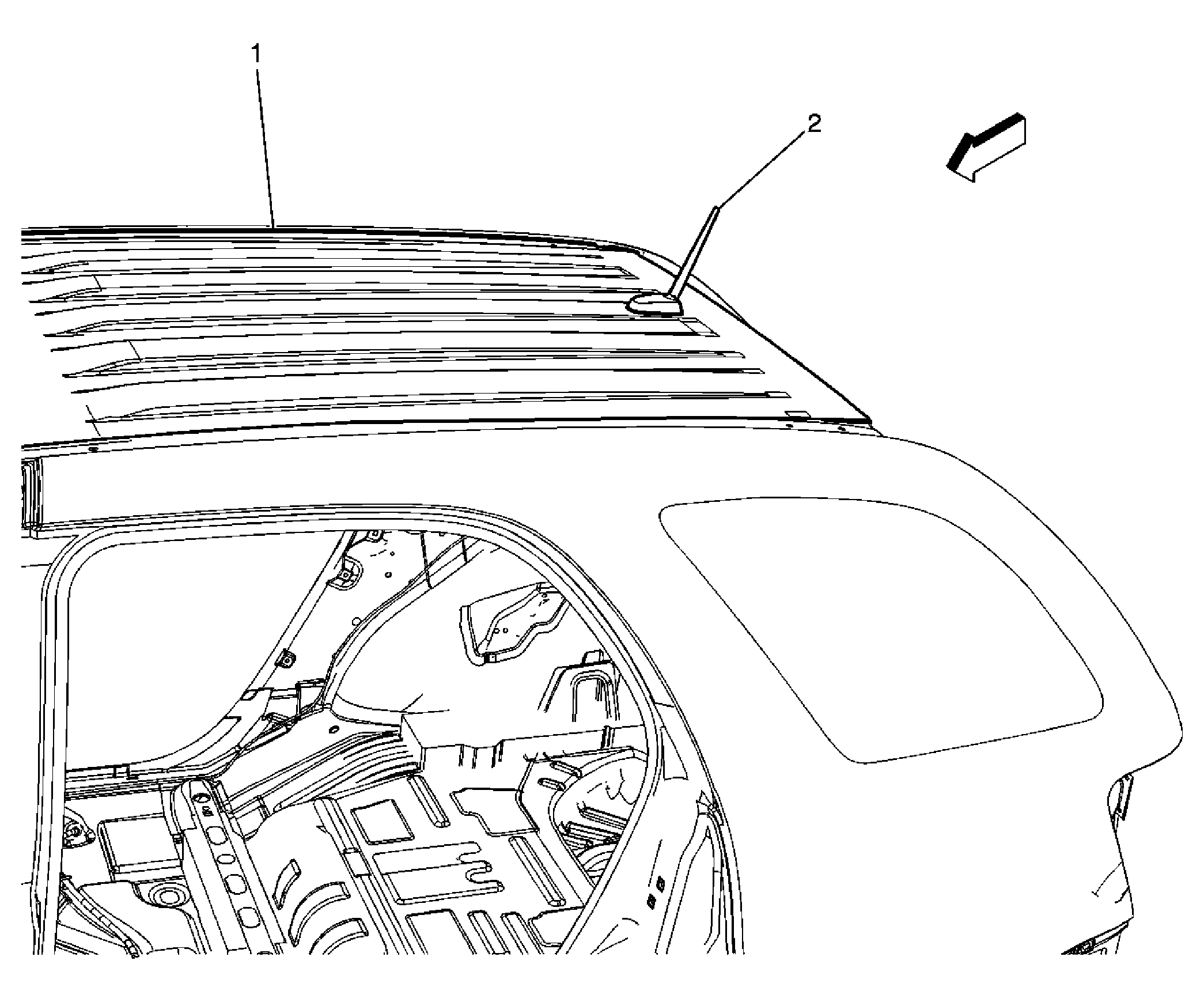

Fig 10: Rear of the Roof View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof
2	Cellular and Navigation Antenna (UE1)/Digital Radio Antenna (U2K)

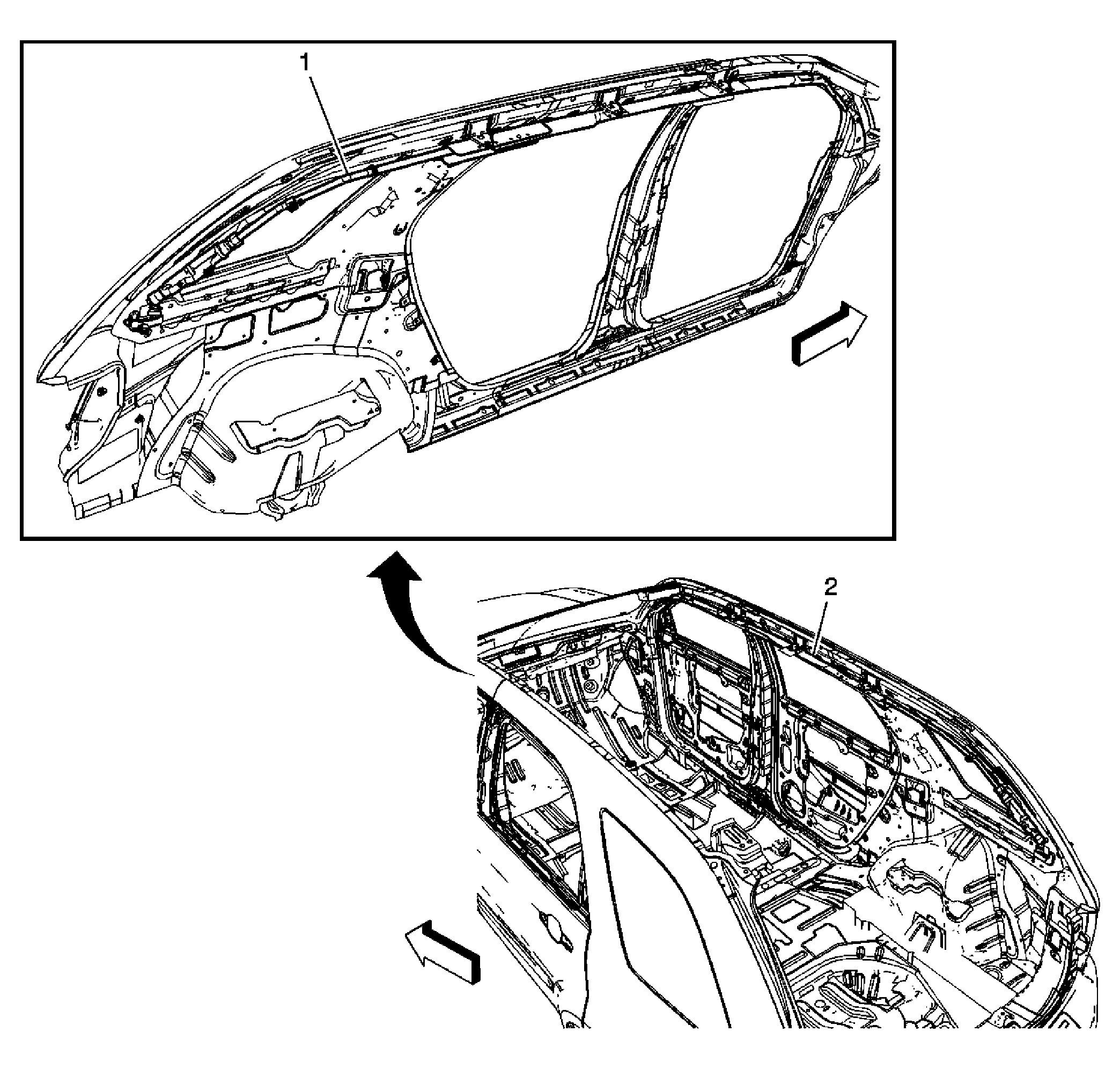

Fig 11: Identifying Roof Rail Air Bags

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Left (ASF)
2	Inflatable Restraint Roof Rail Module - Right (ASF)

Fig 12: Sunroof Components (CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Control Module
2	Sunroof Motor

Fig 13: Identifying Electronic Compass Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Compass Module
