Door Component Views

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

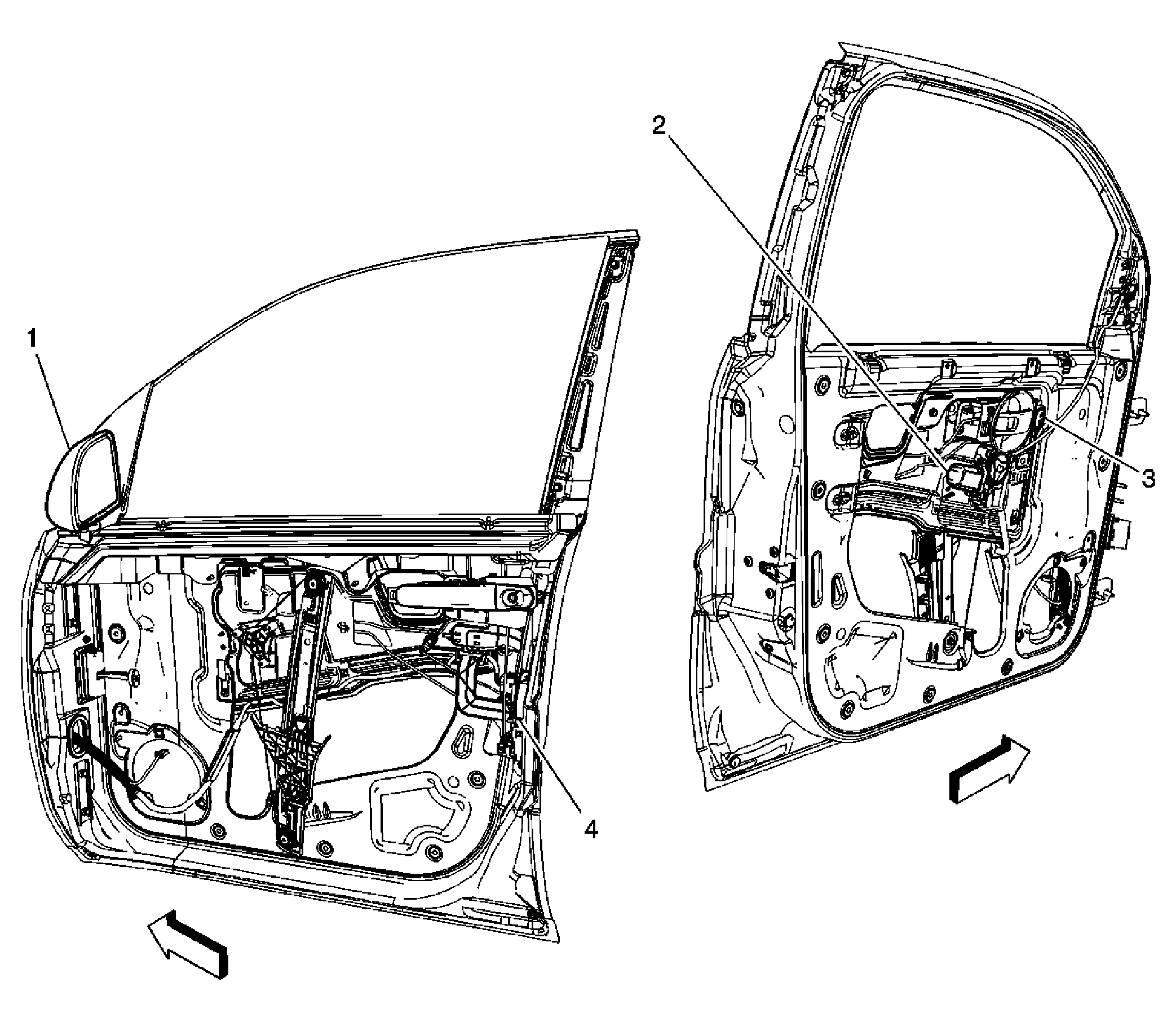

Fig 1: View Of Driver Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Driver
2	Window Motor - Driver
3	Door Lock Switch - Driver
4	Door Latch - Driver

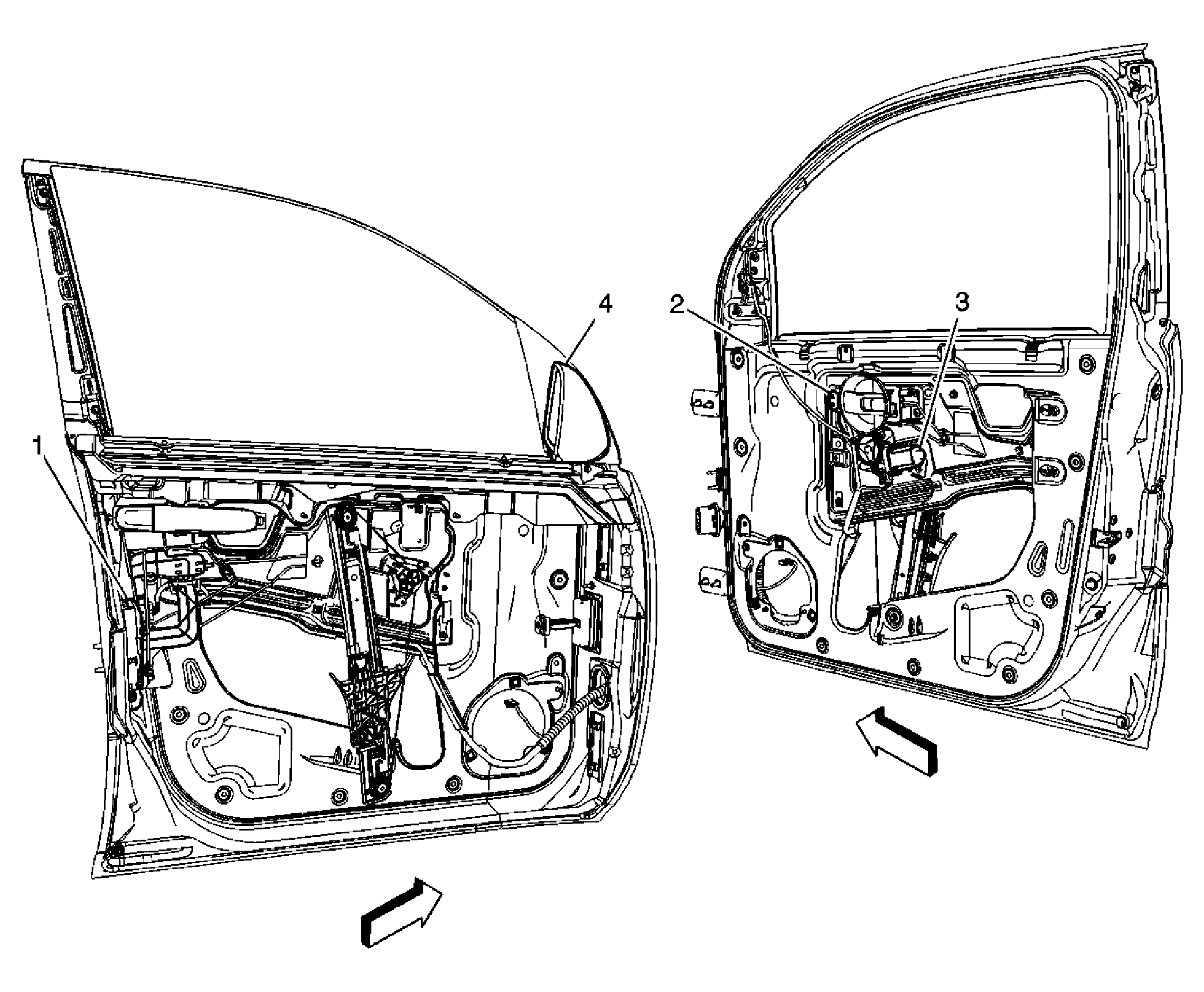

Fig 2: View Of Passenger Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch - Passenger
2	Door Lock Switch - Passenger
3	Window Motor - Passenger
4	Outside Rearview Mirror - Passenger

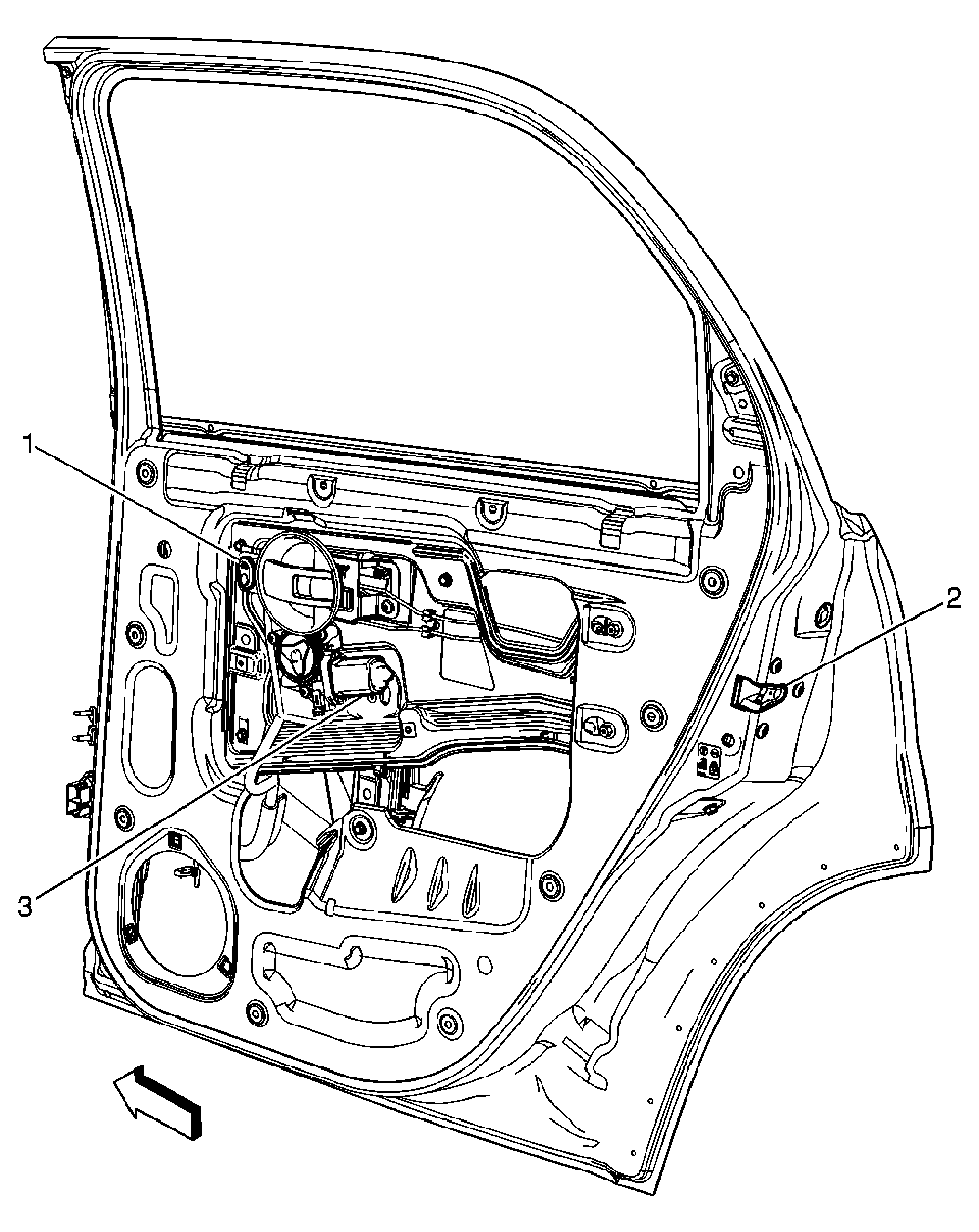

Fig 3: View Of Left Rear Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch - Left Rear
2	Window Switch - Left Rear
3	Window Motor - Left Rear

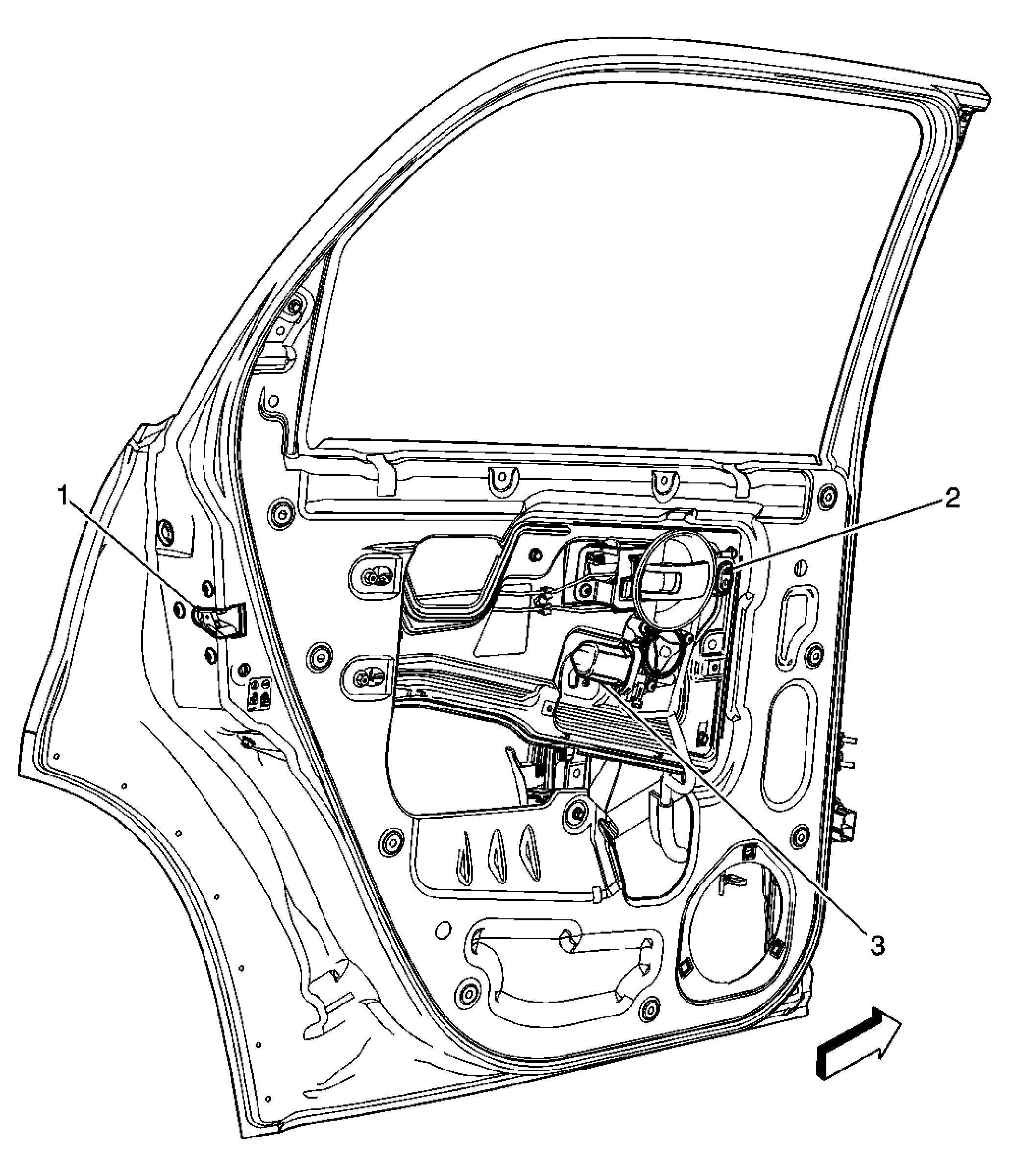

Fig 4: View Of Right Rear Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - Right Rear
2	Door Latch - Right Rear
3	Window Motor - Right Rear
