Water Outlet Installation

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

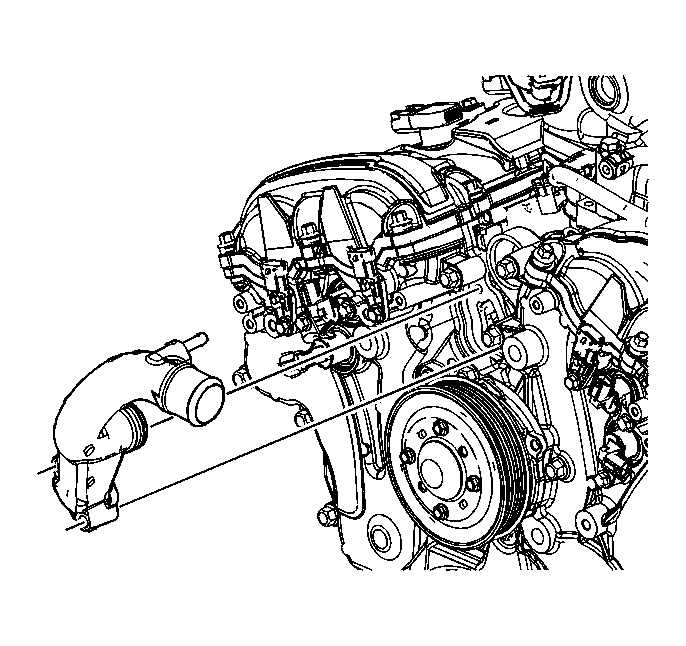

Fig 1: Identifying Water Outlet Gasket & O-Ring

Courtesy of GENERAL MOTORS CORP.

Install a NEW gasket and O-ring onto the water outlet.

Fig 2: Identifying Water Outlet

Courtesy of GENERAL MOTORS CORP.

Install the water outlet.

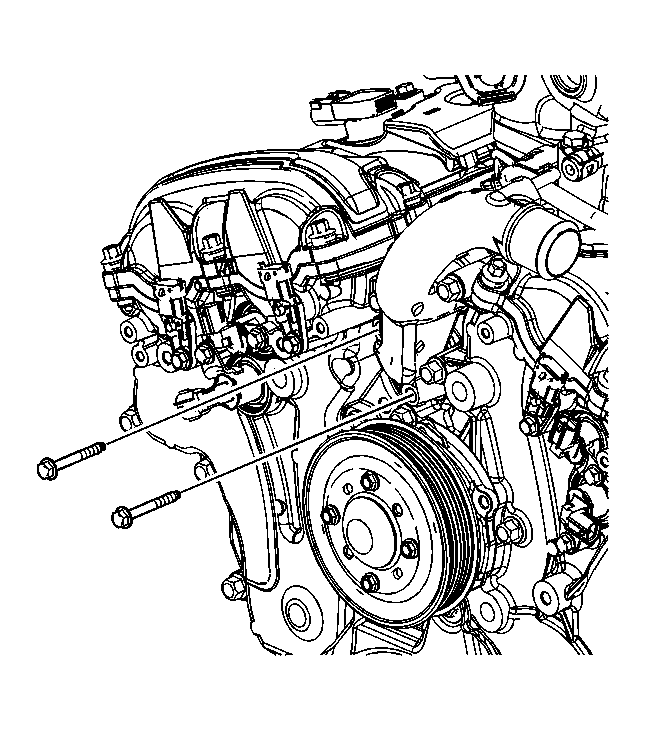

Fig 3: Identifying Water Outlet Bolts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the water outlet bolts and tighten to 10 N.m (89 lb in).

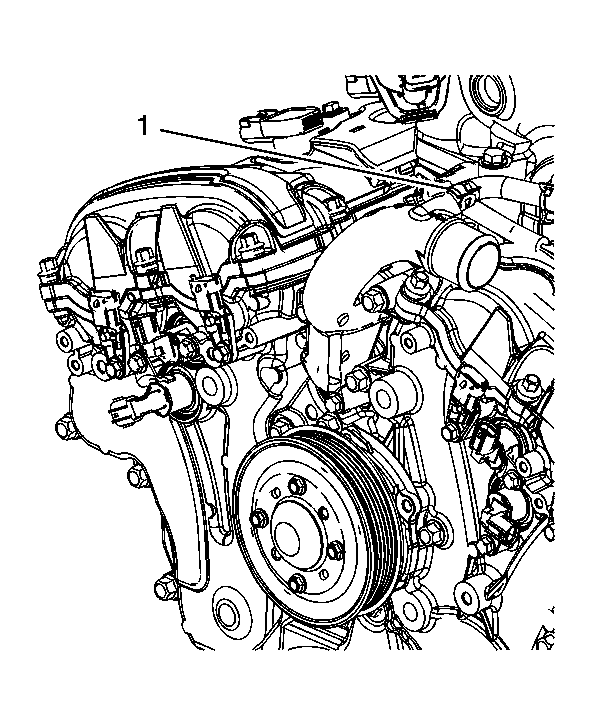

Fig 4: Identifying Engine Coolant Air Bleed Hose

Courtesy of GENERAL MOTORS CORP.

Connect the engine coolant air bleed hose (1) to the water outlet.
