Starter Installation

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

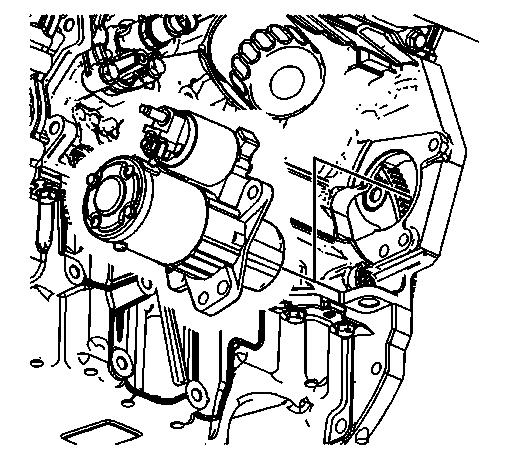

Fig 1: Identifying Starter Motor

Courtesy of GENERAL MOTORS CORP.

Install the starter motor.

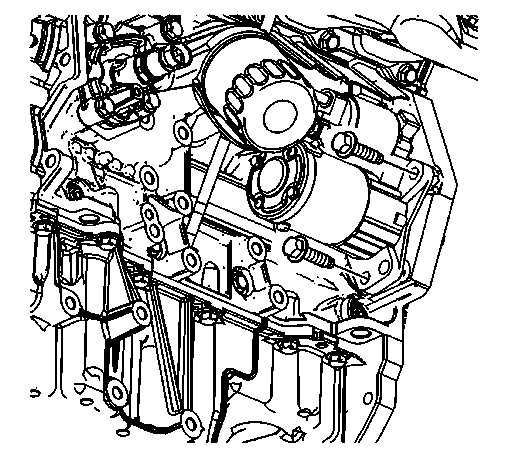

Fig 2: Identifying Starter Motor Bolts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the starter motor bolts and tighten to 50 N.m (37 lb ft).
