Intake Manifold Installation

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Lower Intake Manifold Gasket
    GM1832124Courtesy of GENERAL MOTORS CORP.
  1. Install the NEW lower intake manifold gasket.

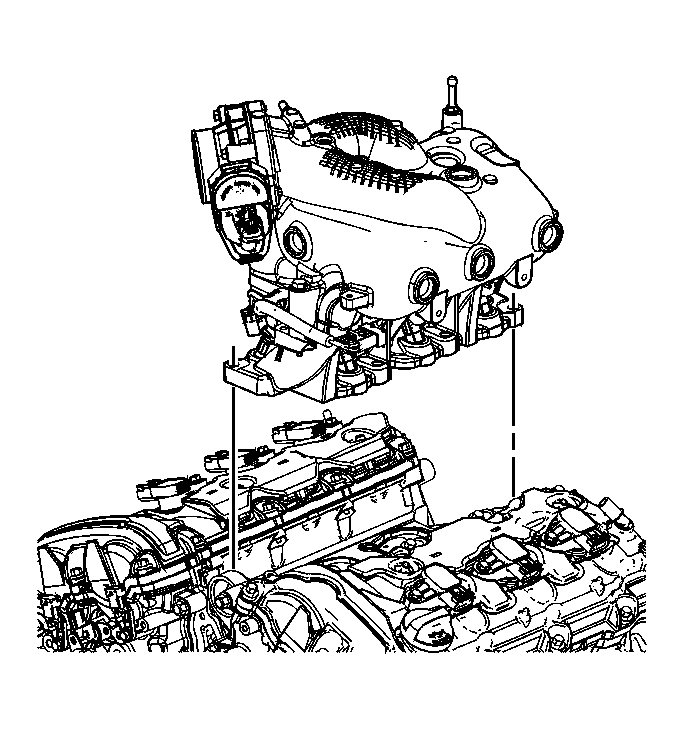

    2. Fig 2: Identifying Intake Manifold Assembly
    GM1832119Courtesy of GENERAL MOTORS CORP.
  2. Install the intake manifold assembly.

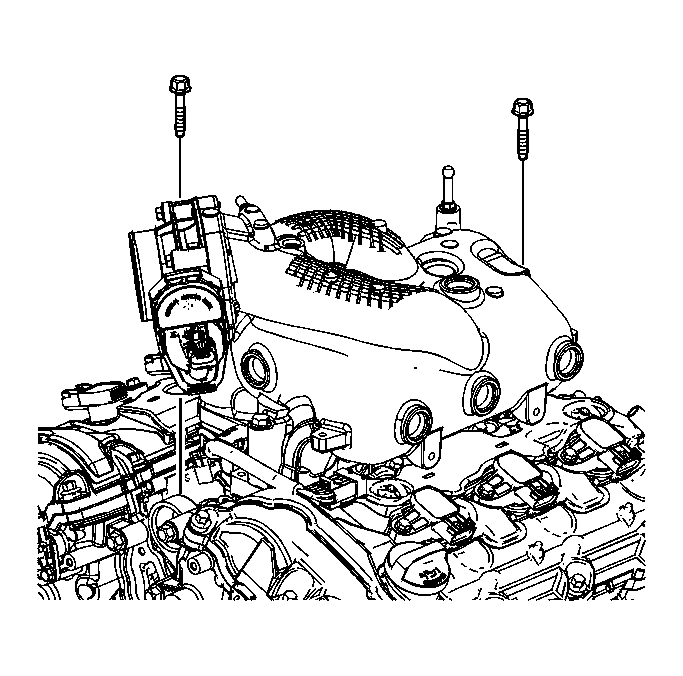

    3. Fig 3: Identifying Short Intake Manifold Bolts
    GM1832116Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Loosely install the short intake manifold bolts.

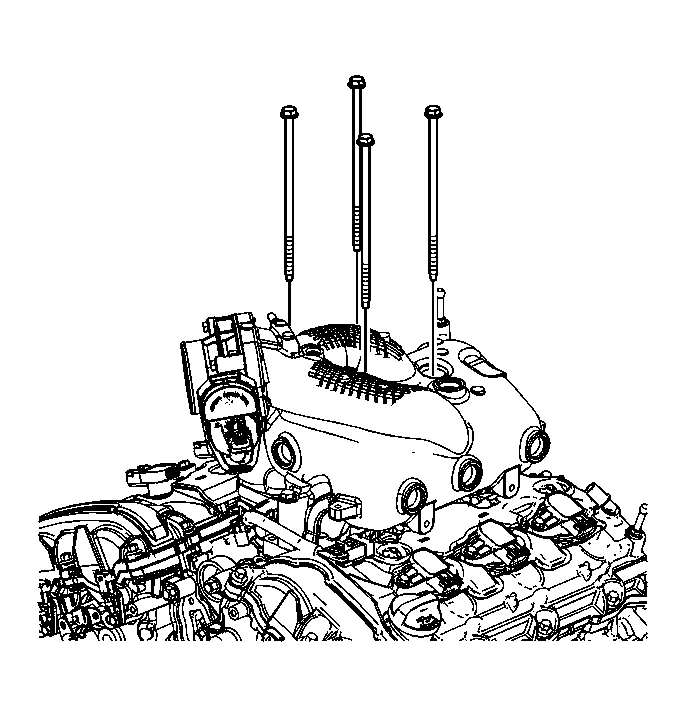

    4. Fig 4: Identifying Long Intake Manifold Bolts
    GM1832114Courtesy of GENERAL MOTORS CORP.
  4. Loosely install the long intake manifold bolts and tighten to 23 N.m (17 lb ft).

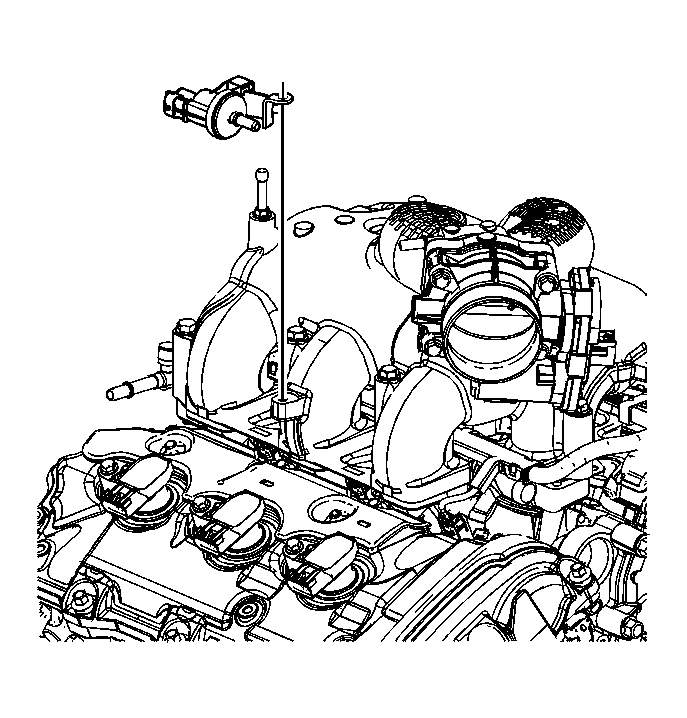

    5. Fig 5: Identifying EVAP Solenoid
    GM1889117Courtesy of GENERAL MOTORS CORP.
  5. Install the evaporative emissions (EVAP) solenoid.

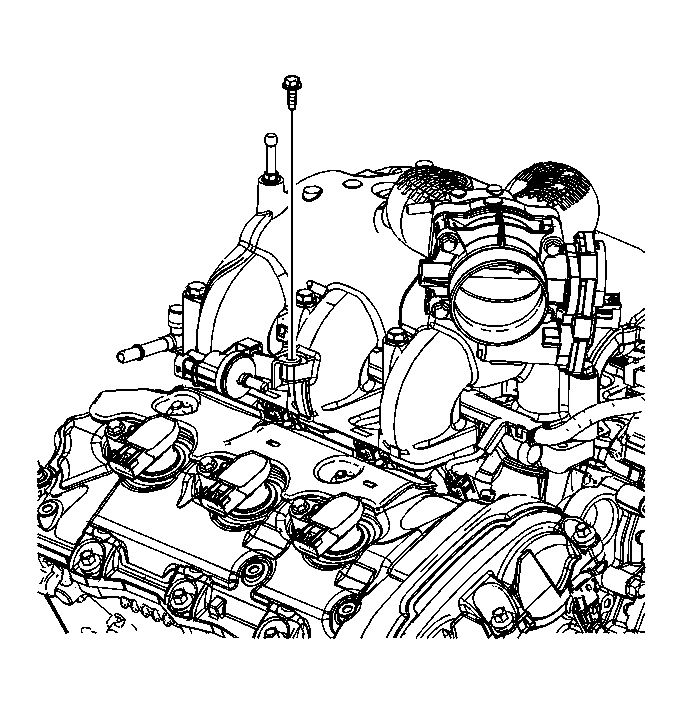

    6. Fig 6: Identifying EVAP Solenoid Bolt
    GM1889115Courtesy of GENERAL MOTORS CORP.
  6. Install the EVAP solenoid bolt and tighten to 10 N.m (89 lb in).

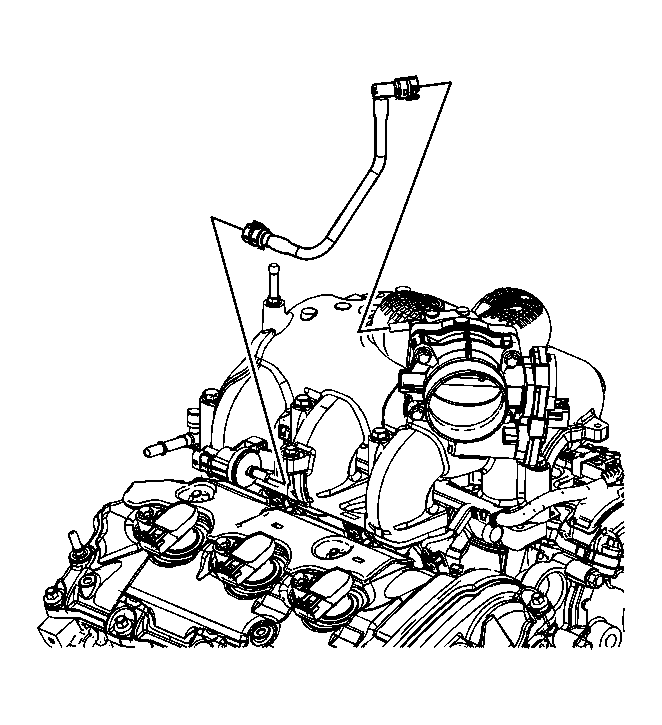

    7. Fig 7: Identifying Intake Manifold-To-Solenoid Evaporative Emissions (EVAP) Hose
    GM1889110Courtesy of GENERAL MOTORS CORP.
  7. Install and connect the intake manifold-to-solenoid EVAP hose to the intake manifold and to the EVAP solenoid.

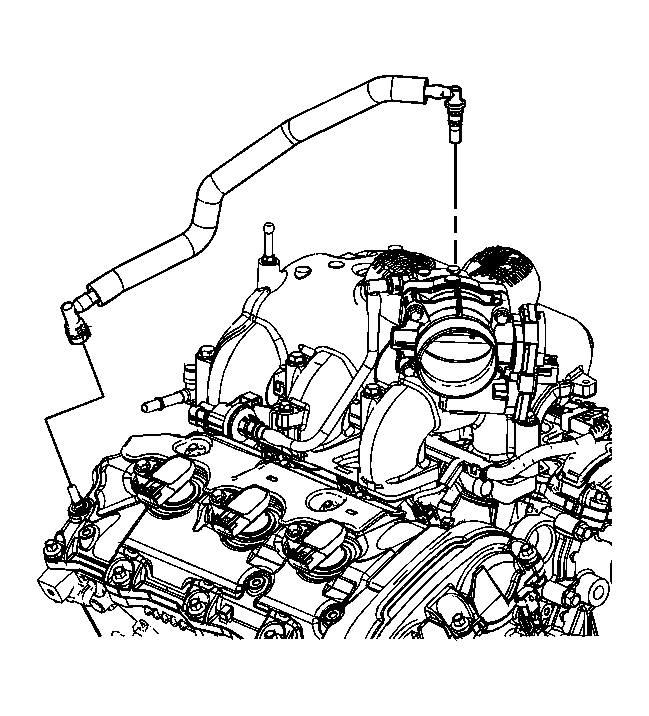

    8. Fig 8: Identifying Dirty Air PCV Hose
    GM1889108Courtesy of GENERAL MOTORS CORP.
  8. Install and connect the dirty air positive crankcase ventilation (PCV) hose to the intake manifold and to the right camshaft cover fitting.

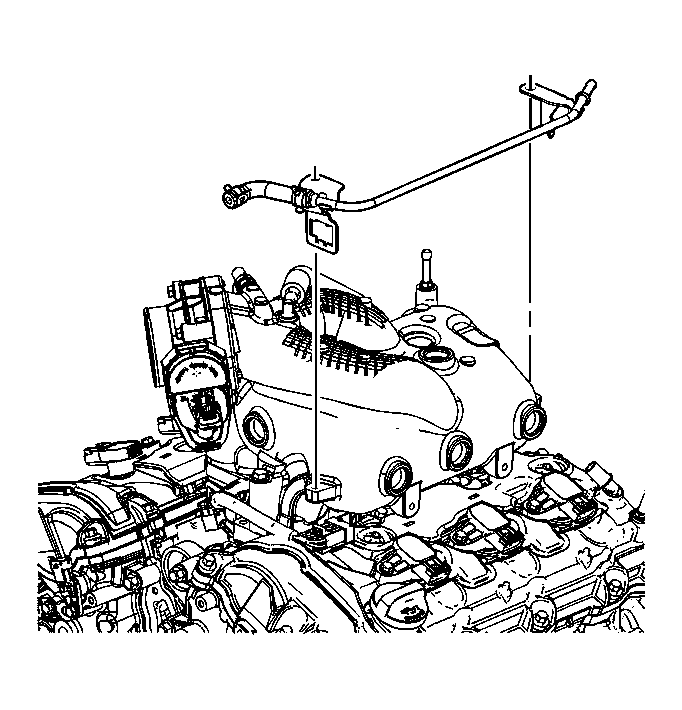

    9. Fig 9: Identifying Engine Coolant Air Bleed Pipe
    GM1832107Courtesy of GENERAL MOTORS CORP.
  9. Install the engine coolant air bleed pipe.

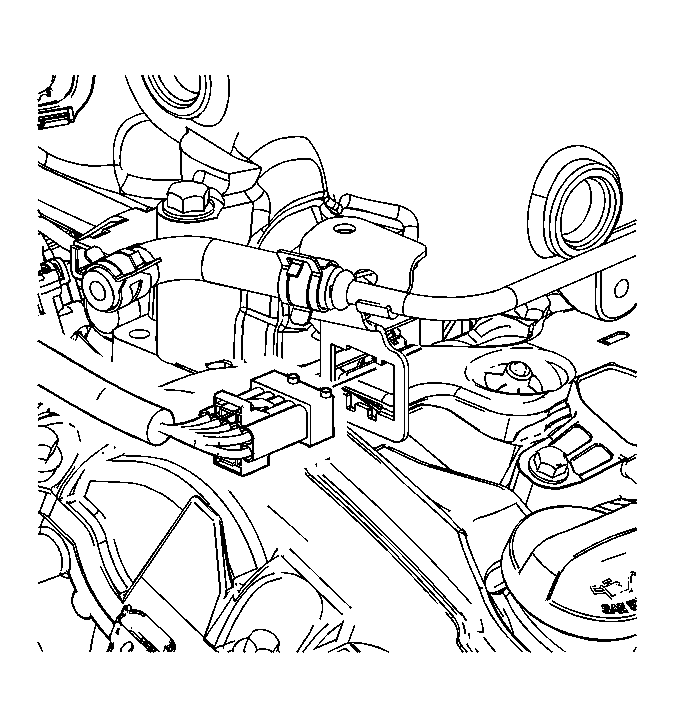

    10. Fig 10: Identifying Fuel Injector Harness Connector
    GM1832106Courtesy of GENERAL MOTORS CORP.
  10. Install the fuel injector harness connector to the engine coolant air bleed pipe bracket.

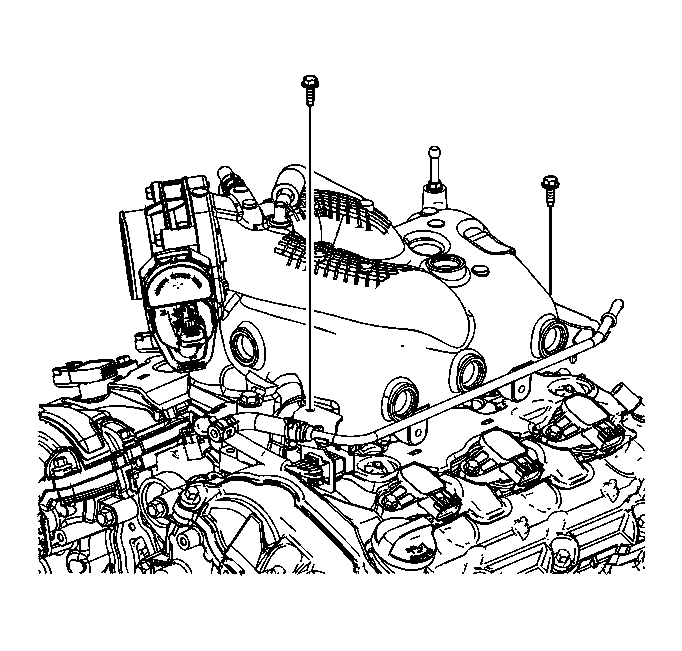

    11. Fig 11: Identifying Engine Coolant Air Bleed Pipe Bracket Bolts
    GM1832104Courtesy of GENERAL MOTORS CORP.
  11. Install the engine coolant air bleed pipe bracket bolts to the upper intake manifold and tighten to 10 N.m (89 lb in).

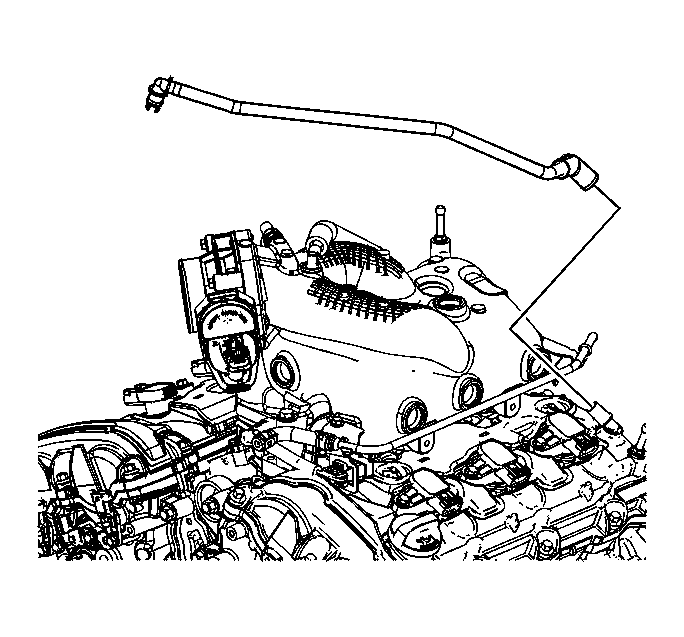

    12. Fig 12: Identifying Fresh Air Positive Crankcase Ventilation (PCV) Hose
    GM1832102Courtesy of GENERAL MOTORS CORP.
  12. Install and connect the fresh air PCV hose to the left camshaft cover fitting.
