Exhaust Manifold Installation - Right Side

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

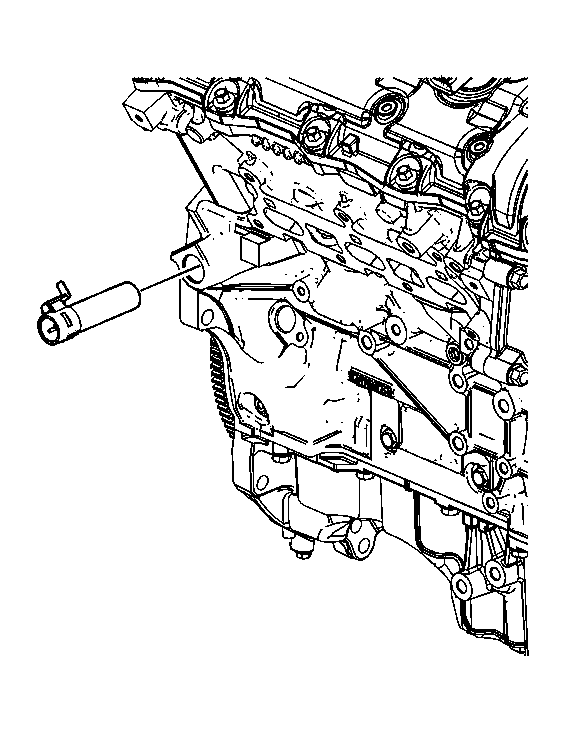

    Fig 1: Identifying Engine Block Heater
    GM1830271Courtesy of GENERAL MOTORS CORP.
  1. Install the engine block heater, if equipped.
    2. Fig 2: View Of Crankshaft Position Sensor O-Ring
    GM1412145Courtesy of GENERAL MOTORS CORP.
  2. Install a NEW crankshaft position (CKP) sensor O-ring.
    3. Fig 3: View Of CKP Sensor
    GM1830269Courtesy of GENERAL MOTORS CORP.
  3. Install the CKP sensor.

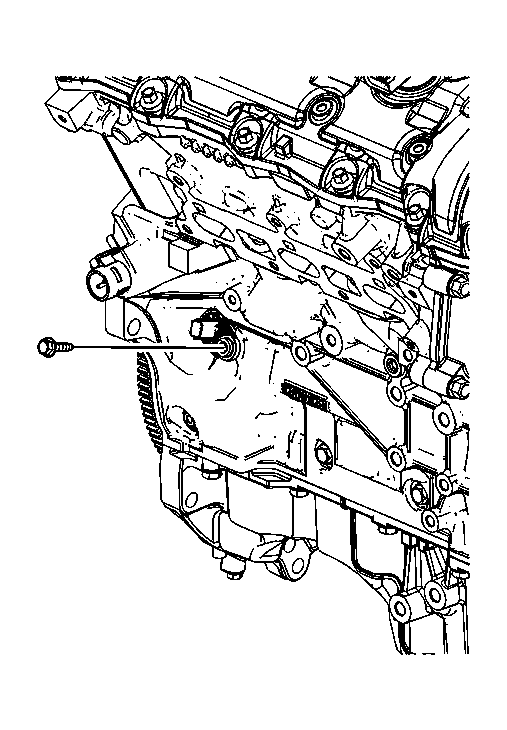

    4. Fig 4: Identifying Crankshaft Position Sensor Bolt
    GM1830267Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  4. Install the CKP sensor bolt and tighten to 10 N.m (89 lb in).

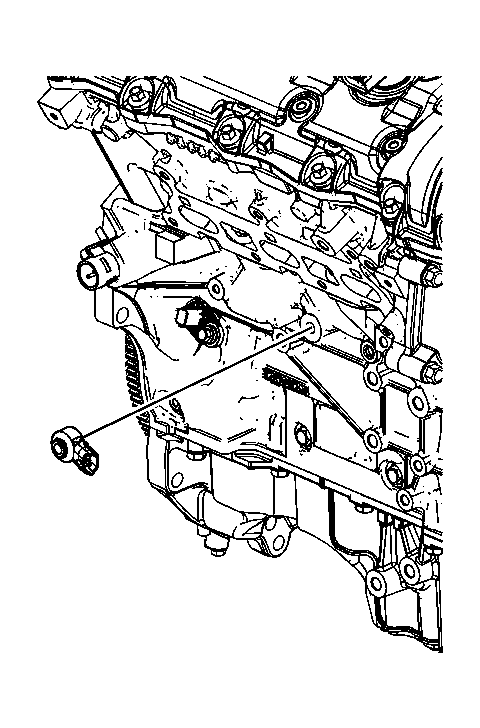

    5. Fig 5: View Of Right Knock Sensor
    GM1830264Courtesy of GENERAL MOTORS CORP.
  5. Install the right knock sensor.

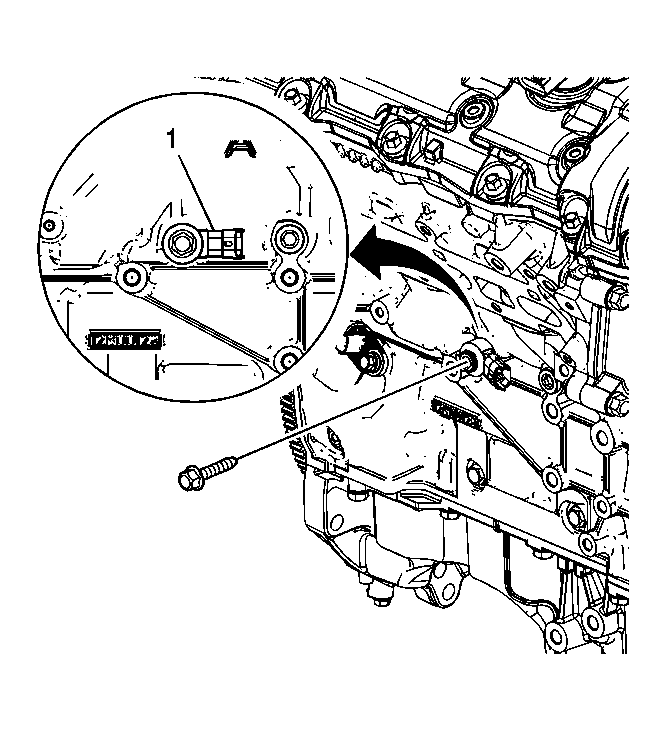

    6. Fig 6: Identifying Knock Sensor Bolt
    GM1830261Courtesy of GENERAL MOTORS CORP.
  6. Install the right knock sensor bolt. Ensure the knock sensor is oriented with the harness connector positioned to the front on the right side (1) and tighten the right knock sensor bolt to 23 N.m (17 lb ft).

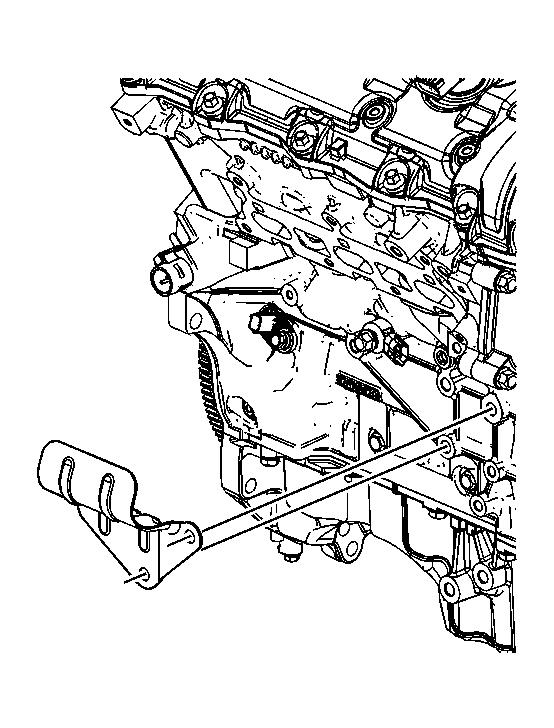

    7. Fig 7: Identifying Right Knock Sensor Heat Shield
    GM1830259Courtesy of GENERAL MOTORS CORP.
  7. Install the right knock sensor heat shield.

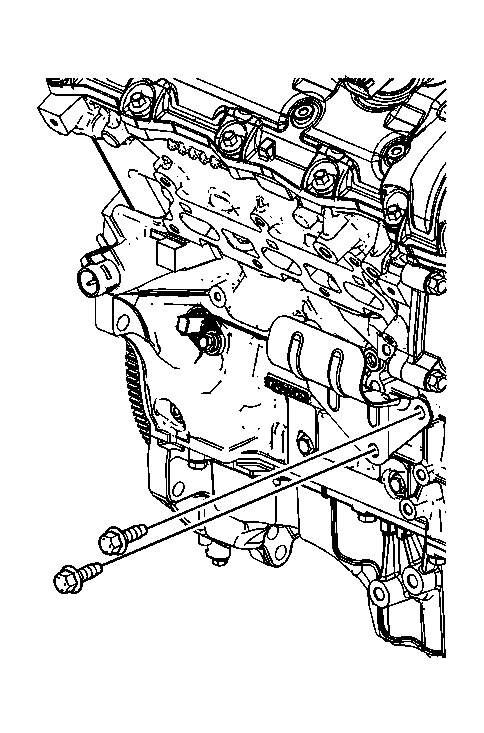

    8. Fig 8: Identifying Right Knock Sensor Heat Shield Bolts
    GM1830257Courtesy of GENERAL MOTORS CORP.
  8. Install the right knock sensor heat shield bolts and tighten to 50 N.m (37 lb ft).

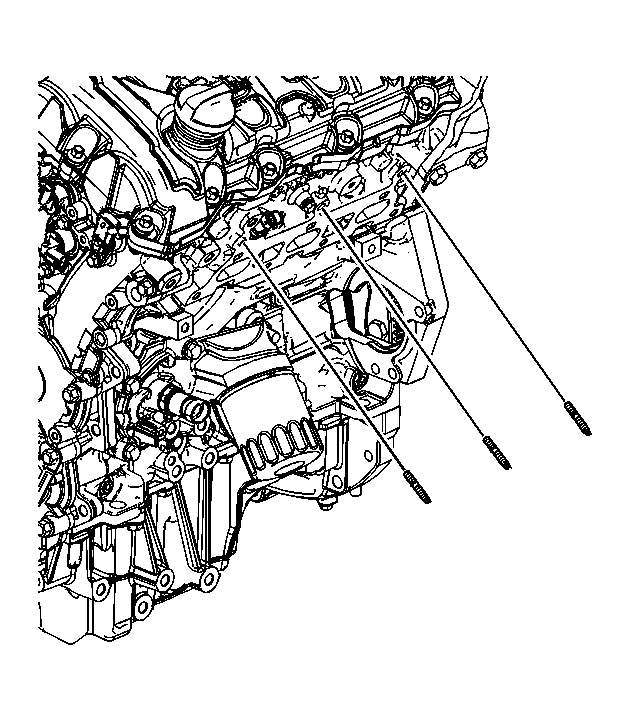

    9. Fig 9: Identifying Left Cylinder Head Studs
    GM1830255Courtesy of GENERAL MOTORS CORP.
  9. Install the studs into the right cylinder head and tighten the studs to 10 N.m (89 lb in).

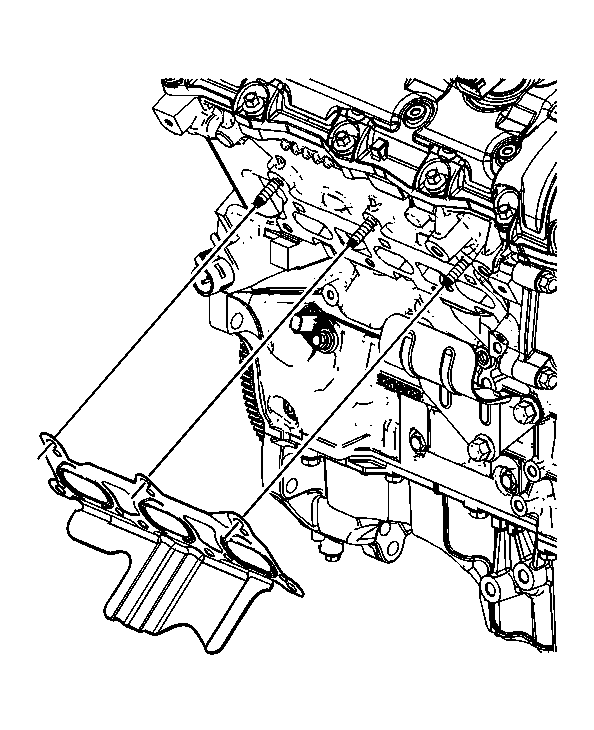

    10. Fig 10: Identifying Right Exhaust Manifold Gasket
    GM1830254Courtesy of GENERAL MOTORS CORP.
  10. Install a NEW right exhaust manifold gasket.

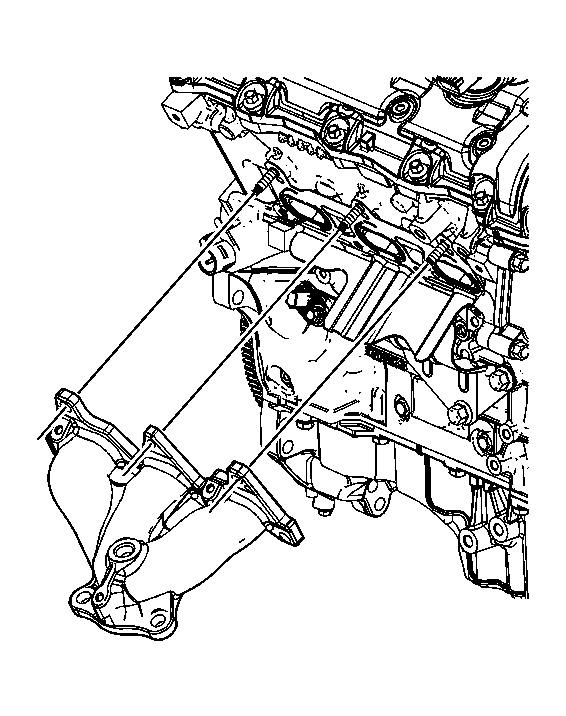

    11. Fig 11: Identifying Right Exhaust Manifold
    GM1830253Courtesy of GENERAL MOTORS CORP.
  11. Install the right exhaust manifold.

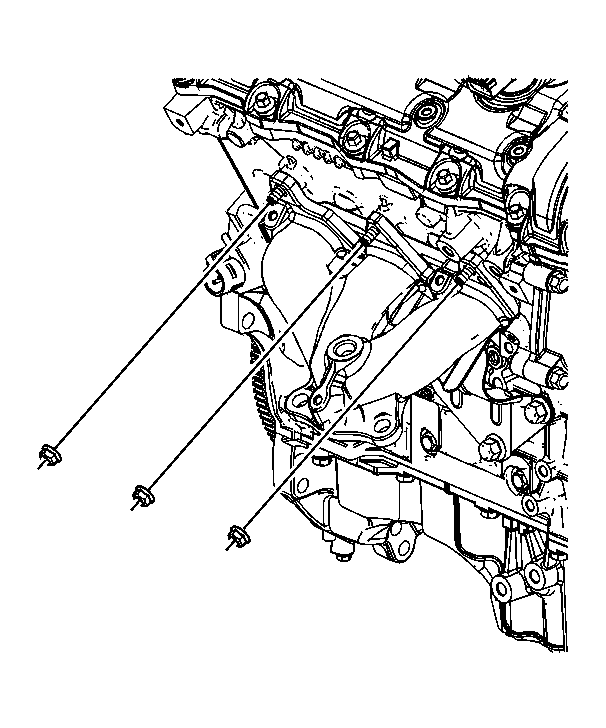

    12. Fig 12: Identifying Right Exhaust Manifold Nuts
    GM1830252Courtesy of GENERAL MOTORS CORP.
  12. Loosely install the right exhaust manifold nuts onto the studs in the right cylinder head.

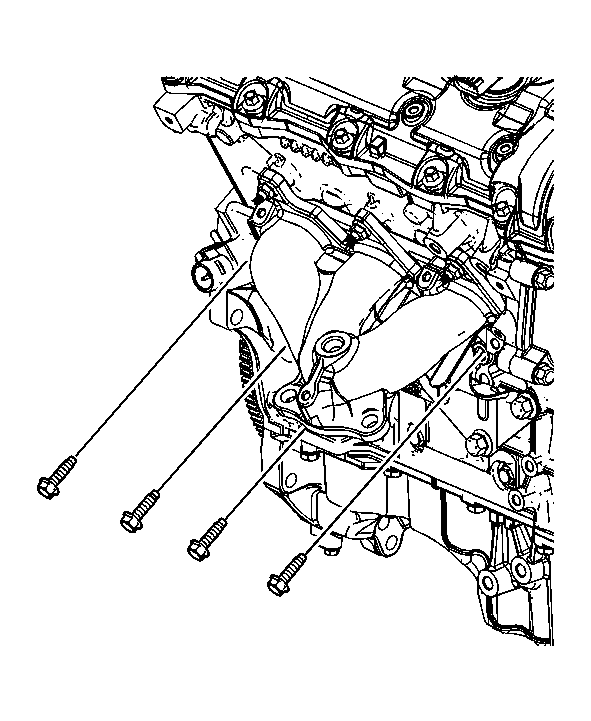

    13. Fig 13: Identifying Right Exhaust Manifold Bolts
    GM1830251Courtesy of GENERAL MOTORS CORP.
  13. Loosely install the right exhaust manifold bolts into the right cylinder head.
  14. Tighten the right exhaust manifold nuts and bolts to 25 N.m (18 lb ft).

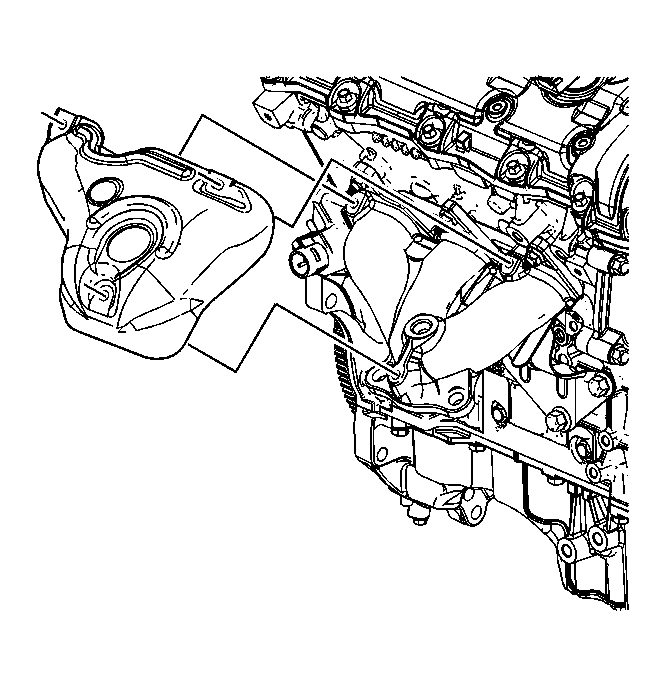

    15. Fig 14: Identifying Right Exhaust Manifold Heat Shield
    GM1830250Courtesy of GENERAL MOTORS CORP.
  15. Place the right exhaust manifold heat shield in position.

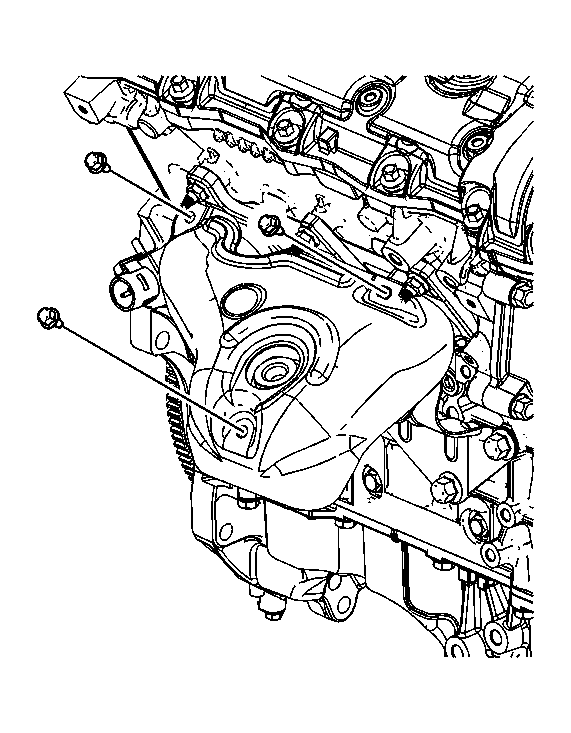

    16. Fig 15: Identifying Right Exhaust Manifold Heat Shield Bolts
    GM1830249Courtesy of GENERAL MOTORS CORP.
  16. Install the exhaust manifold heat shield bolts and tighten to 10 N.m (89 lb in).
