Exhaust Manifold Installation - Left Side

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

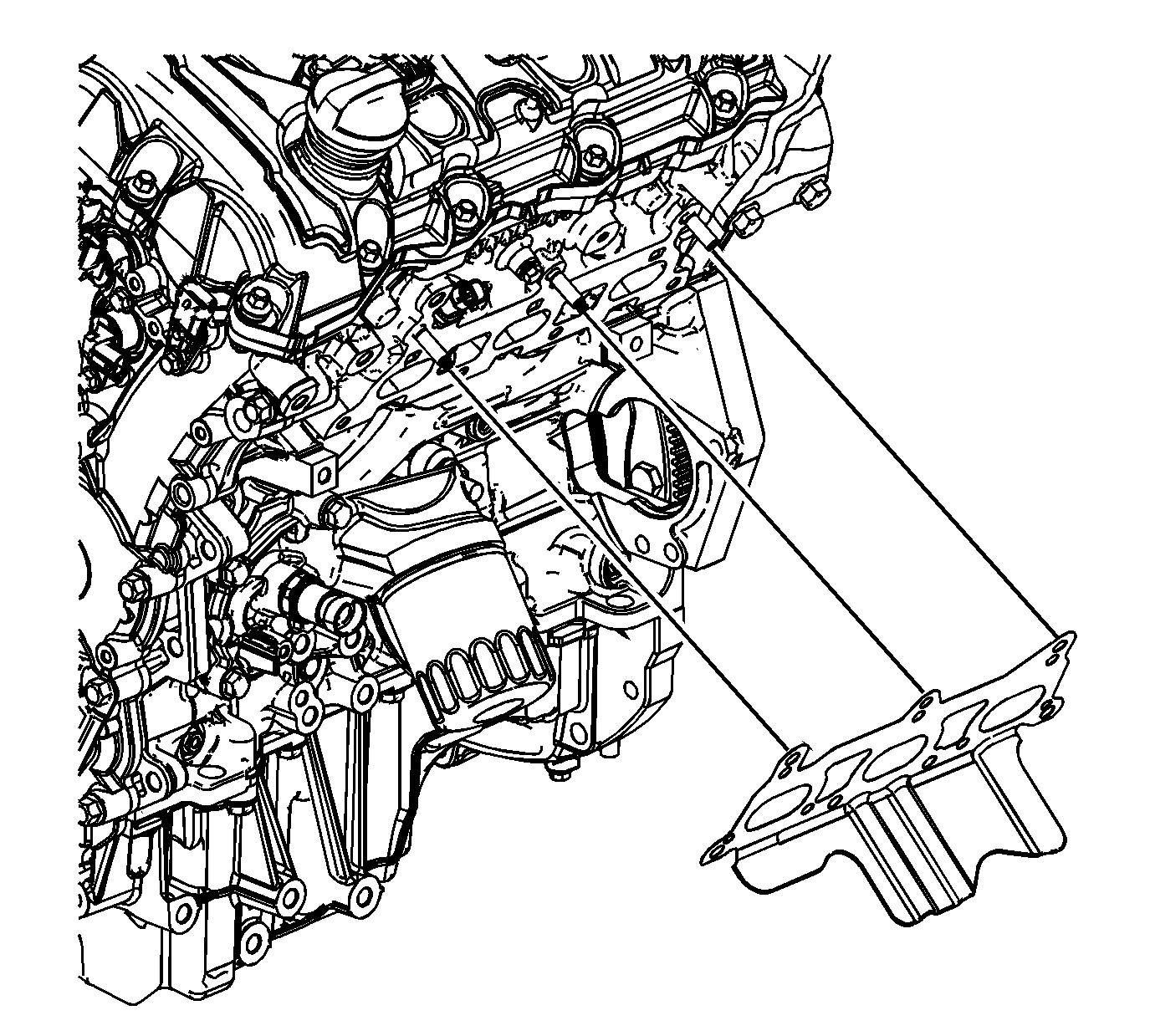

Fig 1: View Of Exhaust Manifold Gasket

Courtesy of GENERAL MOTORS CORP.

Install a NEW left exhaust manifold gasket.

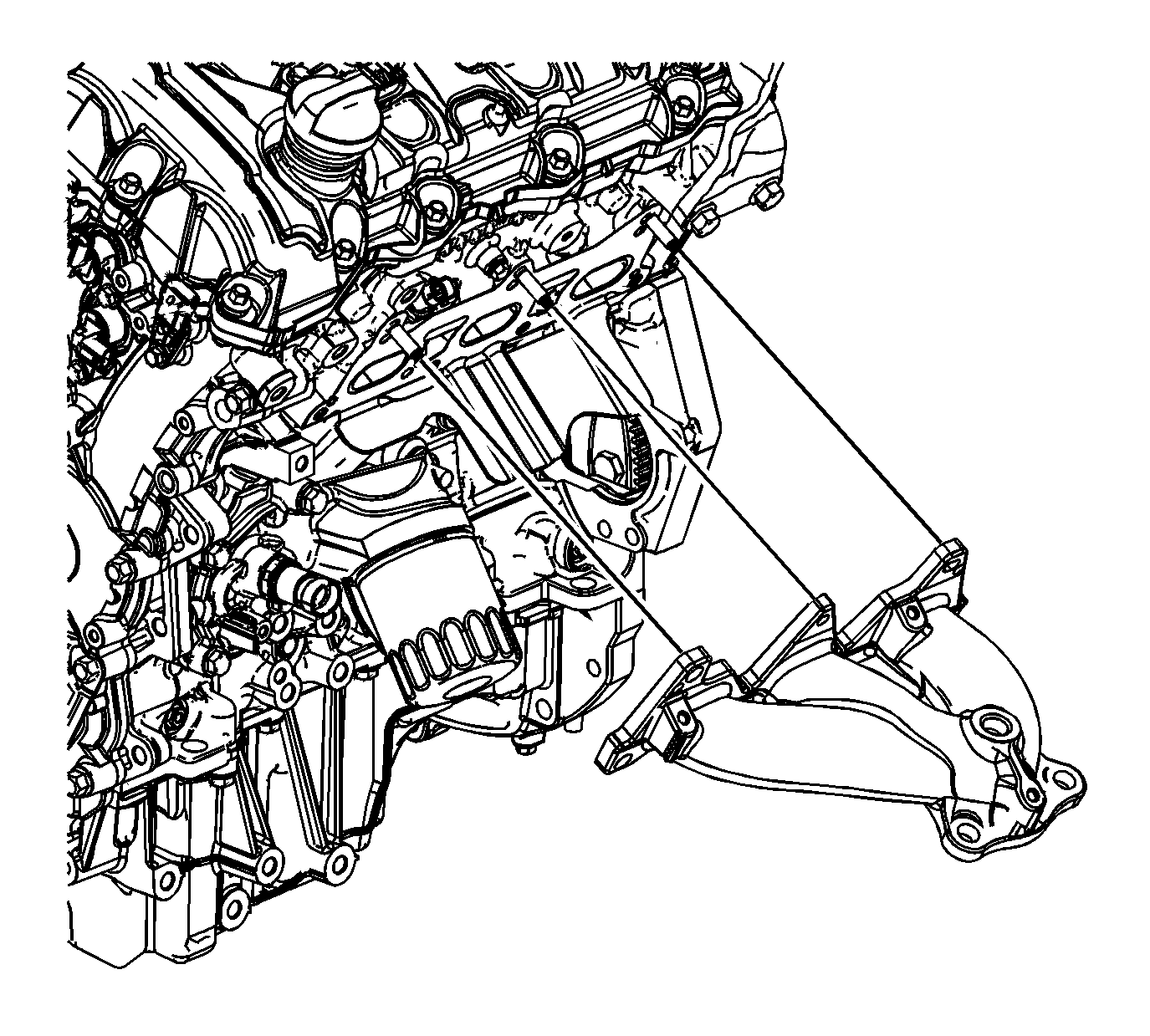

Fig 2: Removing/Installing Exhaust Manifold

Courtesy of GENERAL MOTORS CORP.

Install the left exhaust manifold.

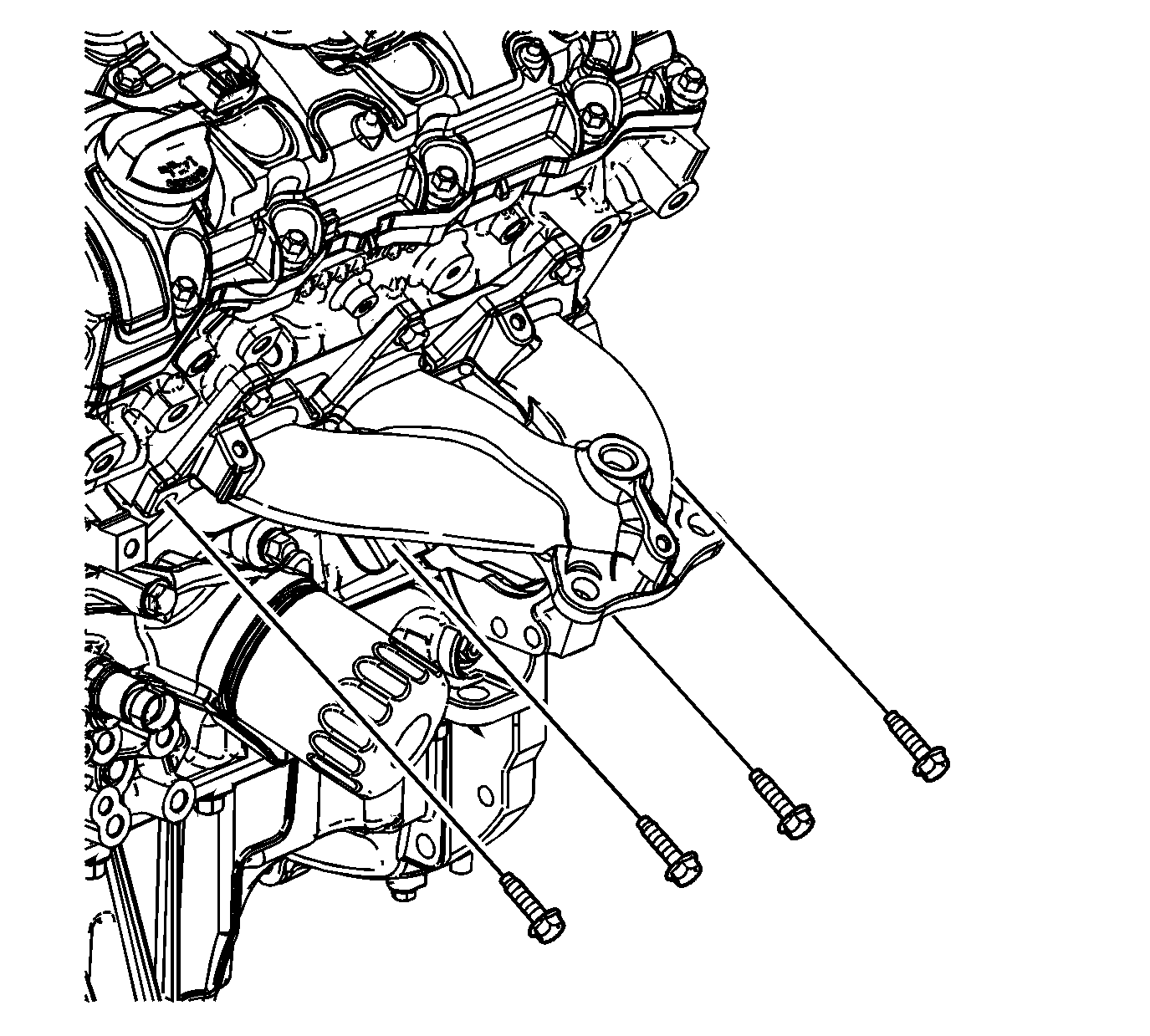

Fig 3: Left Exhaust Manifold Upper Bolts At Left Cylinder Head

Courtesy of GENERAL MOTORS CORP.

Loosely install the left exhaust manifold upper bolts into the left cylinder head.

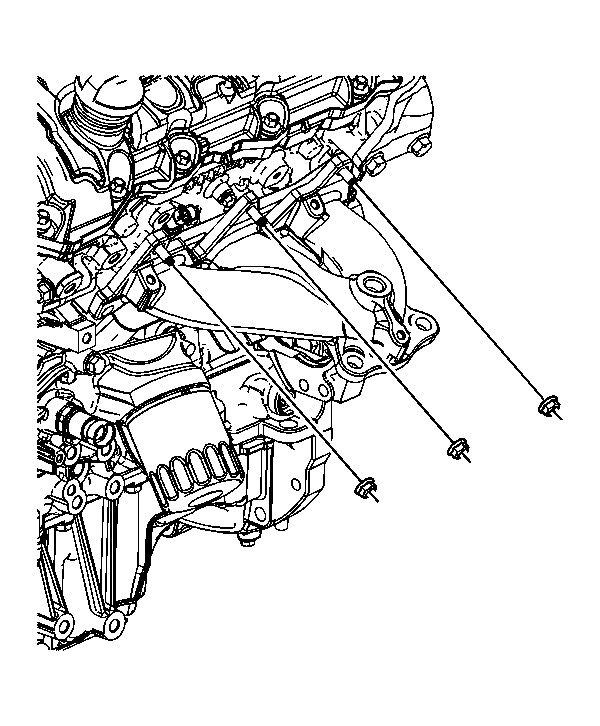

Fig 4: Identifying Exhaust Manifold Lower Bolts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Loosely install the left exhaust manifold lower bolts into the left cylinder head.
Tighten the left exhaust manifold bolts to 25 N.m (18 lb ft).

Fig 5: View Of Engine Coolant Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Install the engine coolant temperature (ECT) sensor and tighten to 30 N.m (22 lb ft).

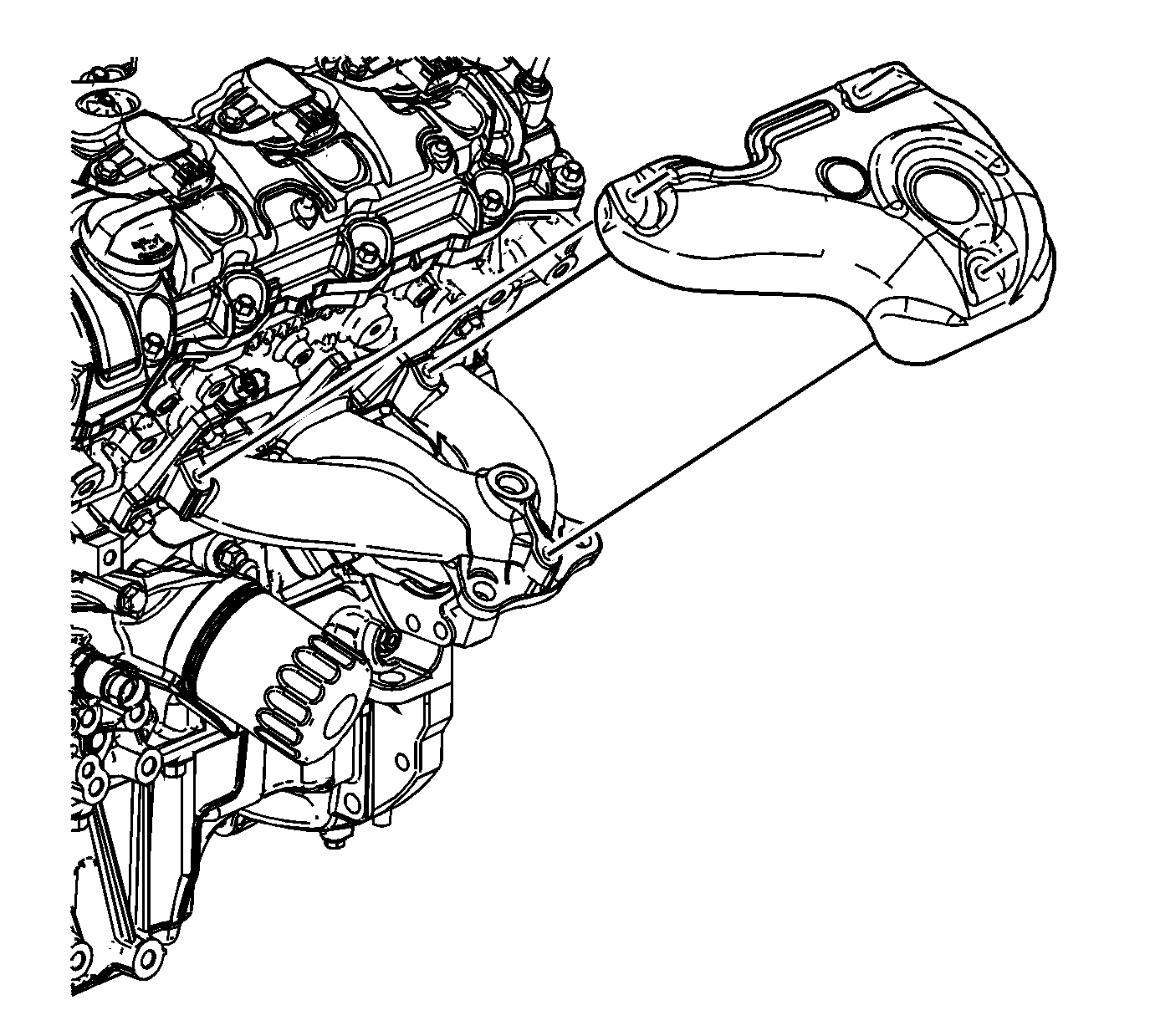

Fig 6: Removing/Installing Exhaust Manifold Heat Shield

Courtesy of GENERAL MOTORS CORP.

Place the left exhaust manifold heat shield in position.

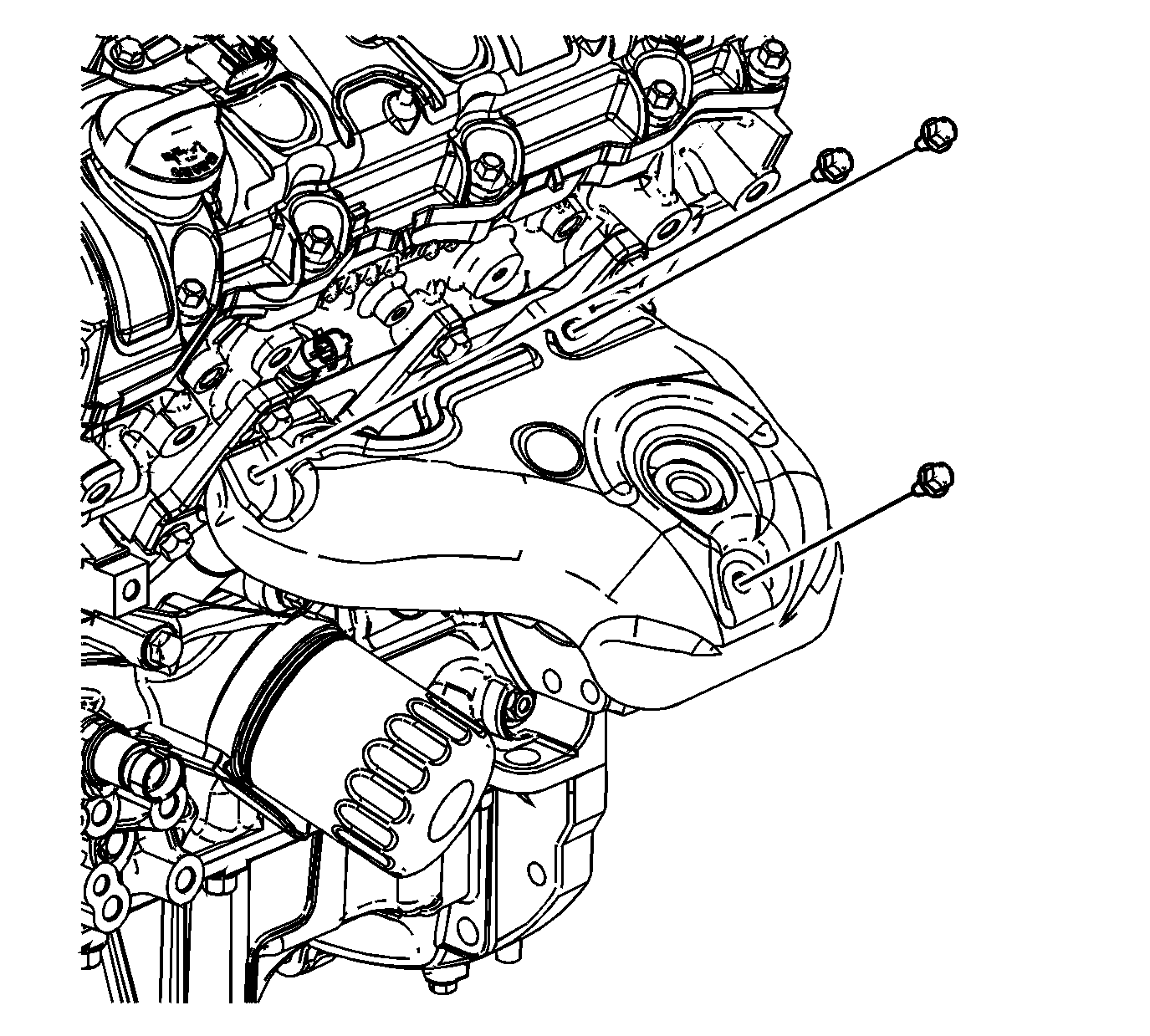

Fig 7: Locating Exhaust Manifold Heat Shield Bolts

Courtesy of GENERAL MOTORS CORP.

Install the exhaust manifold heat shield bolts and tighten to 10 N.m (89 lb in).
