Engine Flywheel Installation: Installation

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

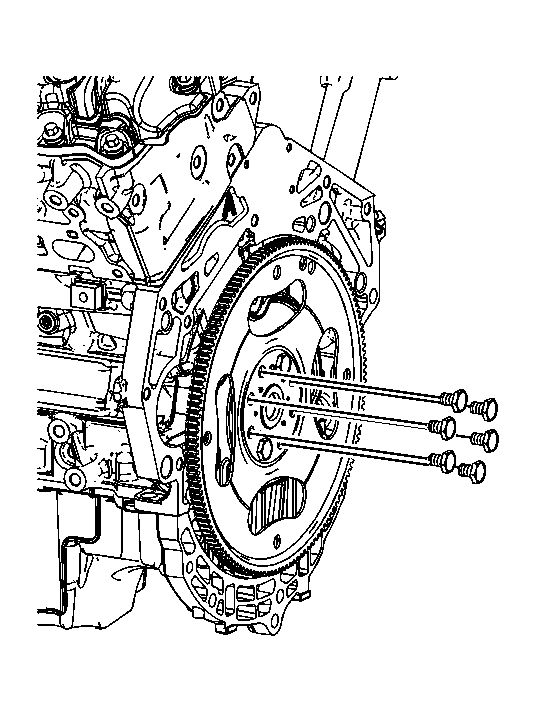

Fig 1: View Of Engine Flywheel

Courtesy of GENERAL MOTORS CORP.

Place the engine flywheel in position on the crankshaft.

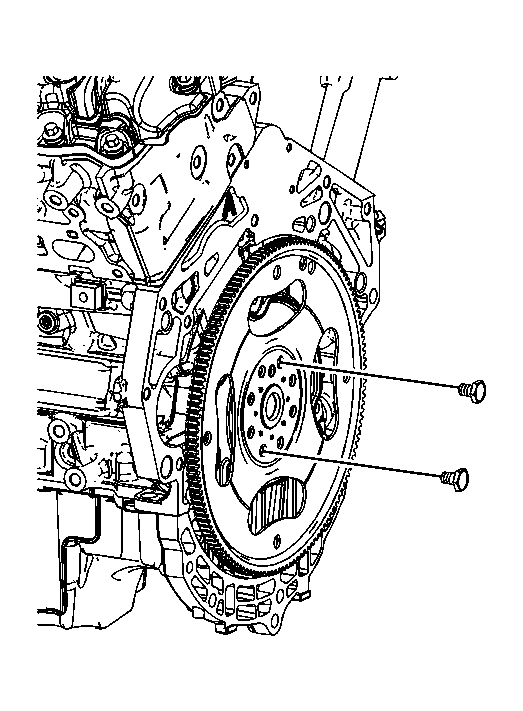

Fig 2: View Of New Top & Bottom Engine Flywheel Bolts

Courtesy of GENERAL MOTORS CORP.

Install 2 NEW bolts in location at the top and bottom of the engine flywheel bolt pattern allowing the engine flywheel to hang in position.

Fig 3: View Of Tool EN 46106

Courtesy of GENERAL MOTORS CORP.

Install the EN-46106: tool.

Fig 4: Identifying Engine Flywheel Bolts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the remaining NEW engine flywheel bolts and tighten to 30 N.m (22 lb ft) and an additional 45 degrees using the J-45059: meter.

Fig 5: View Of Tool EN 46106

Courtesy of GENERAL MOTORS CORP.

Remove the EN-46106: tool.
