Engine Coolant Thermostat Housing Installation

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

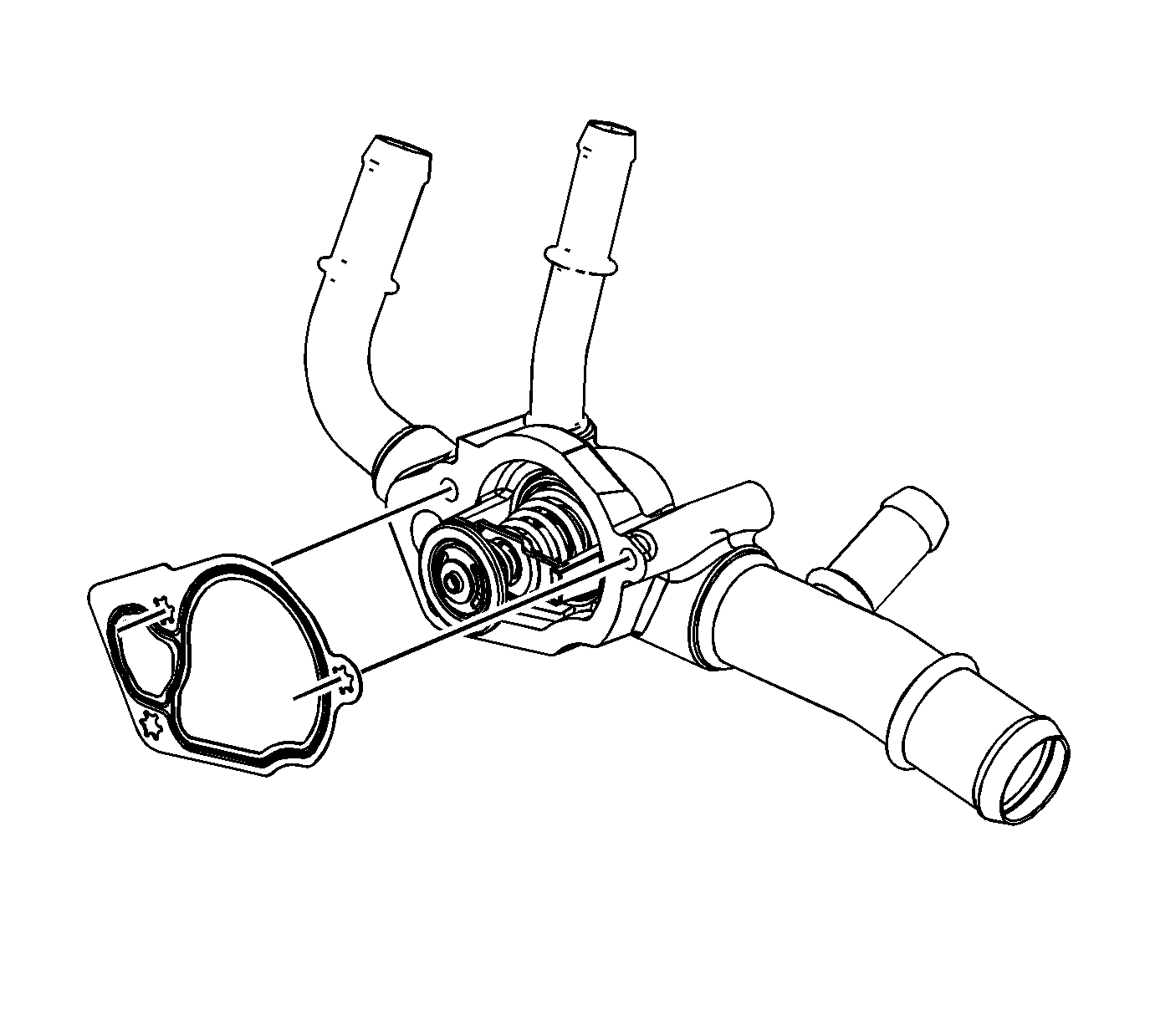

Fig 1: Identifying Thermostat Housing Gasket

Courtesy of GENERAL MOTORS CORP.

Install a NEW gasket onto the thermostat housing.

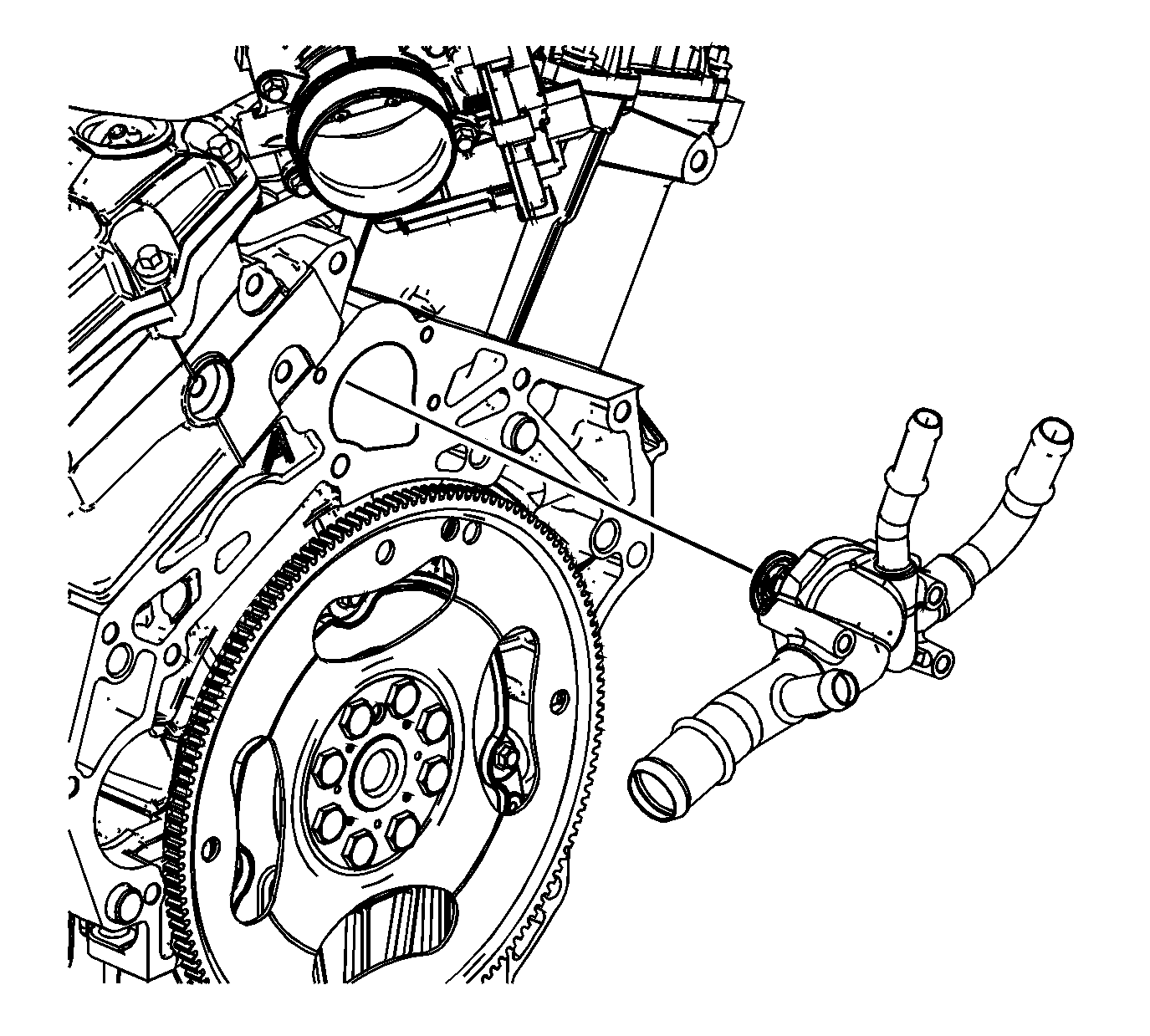

Fig 2: Identifying Thermostat Housing

Courtesy of GENERAL MOTORS CORP.

Install the thermostat housing.

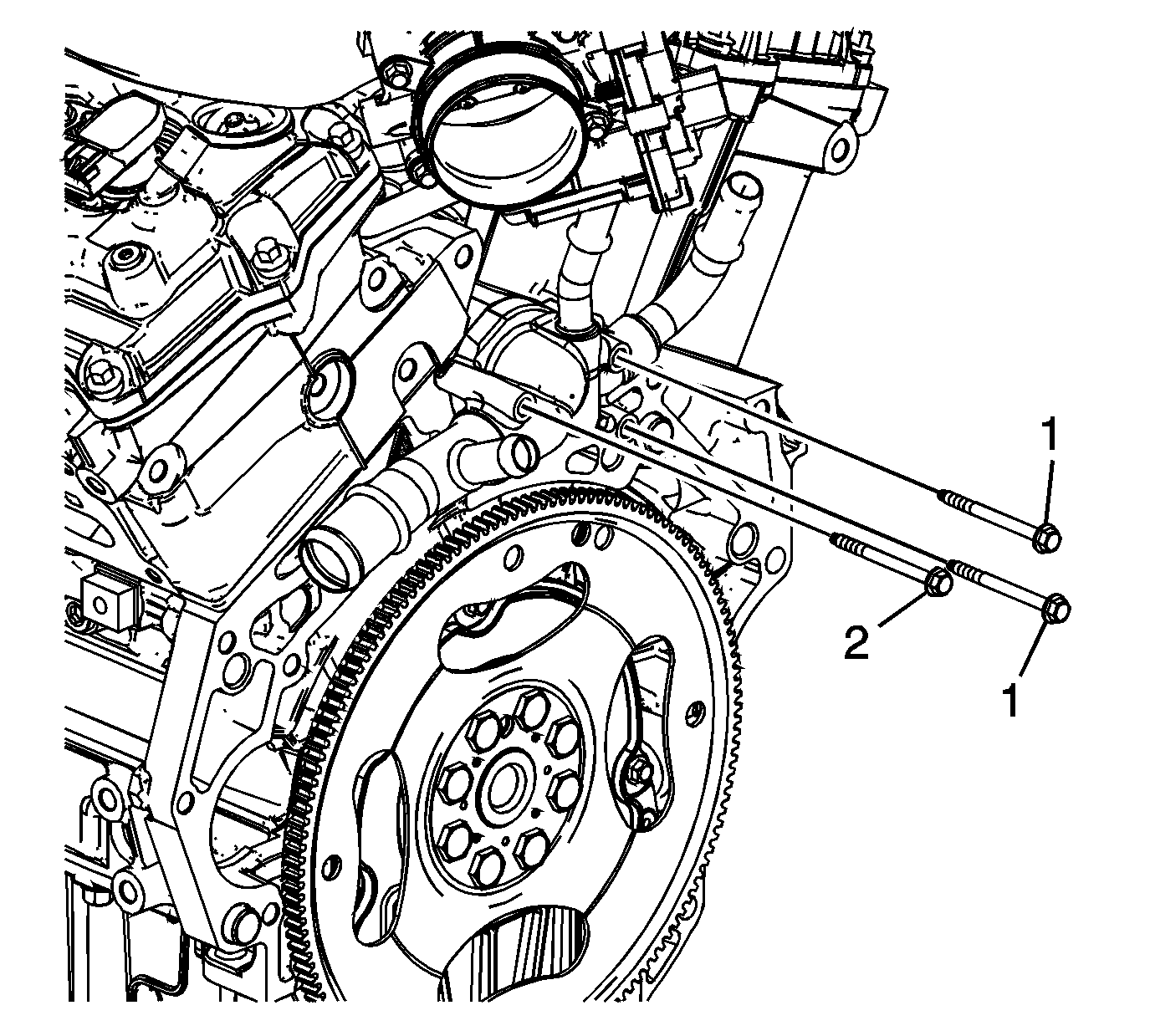

Fig 3: Identifying Thermostat Housing Bolts

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the thermostat housing bolts. Ensure to install the short bolts (1) and the long bolt (2) in the proper position and tighten to 10 N.m (89 lb in).
