Drive Belt Idler Pulley Installation

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

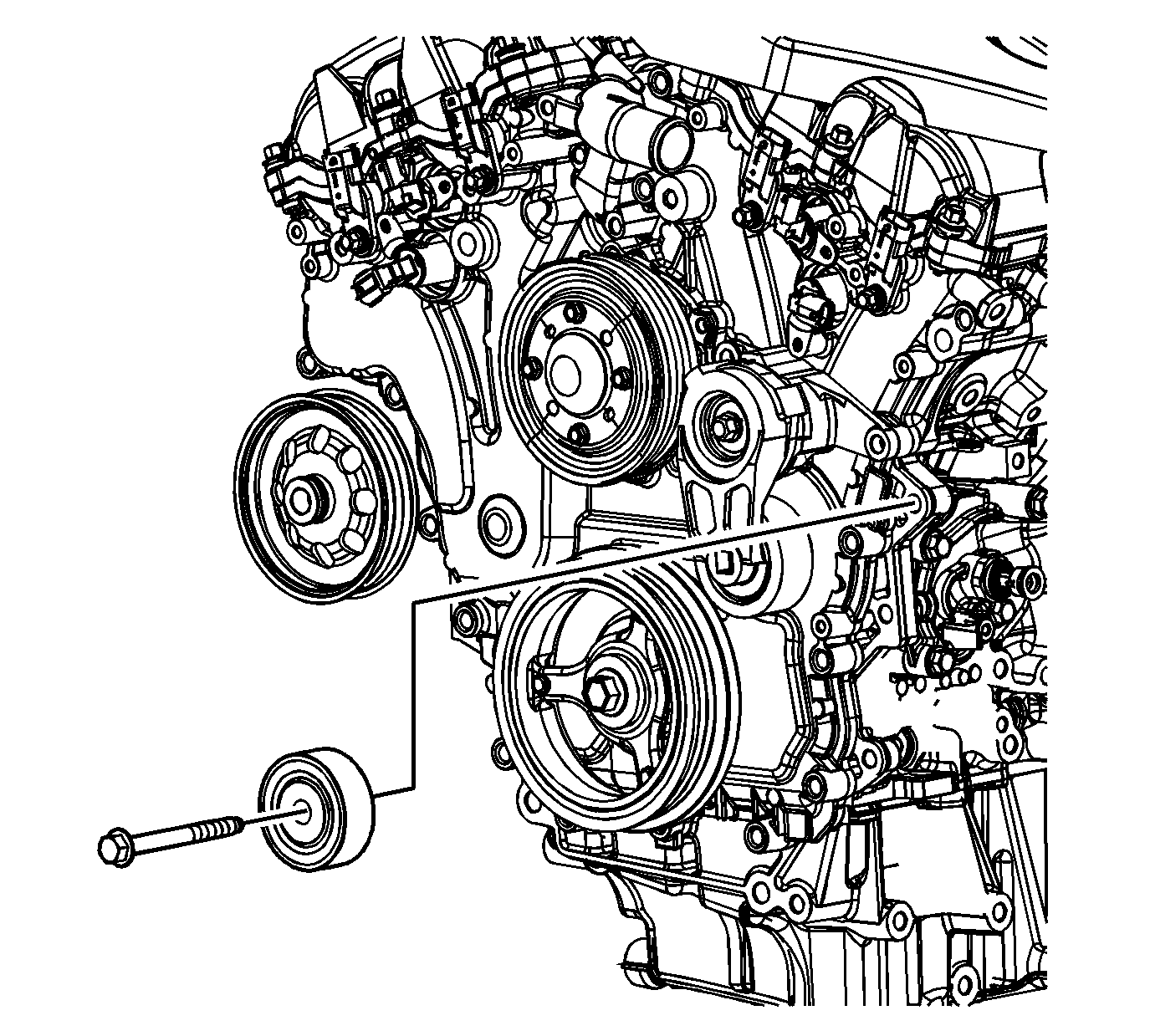

    Fig 1: Identifying Drive Belt Idler Pulley & Bolt
    GM1972788Courtesy of GENERAL MOTORS CORP.
  1. Place the drive belt idler pulley and bolt in position through the generator mounting hole and into the engine front cover.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the drive belt idler pulley bolt and tighten to 50 N.m (37 lb ft).
  3. Tighten the generator bolts to 50 N.m (37 lb ft).
