Camshaft Cover Installation - Left Side: Installation

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Spark Plug Tubes
    GM1832346Courtesy of GENERAL MOTORS CORP.
  1. Install the EN-46101:  guide onto the spark plug tubes of the left cylinder head.
    2. Fig 2: View Of Camshaft Cover & Bolt Insulator
    GM1864443Courtesy of GENERAL MOTORS CORP.
  2. Install the NEW camshaft cover bolt grommets prior to installing the camshaft cover bolts.
  3. Wipe the camshaft cover sealing surface on the left cylinder head with a clean, lint-free cloth.
    4. Fig 3: Locating Engine Front Cover Split Lines
    GM1832348Courtesy of GENERAL MOTORS CORP.
  4. Place a bead 8 mm (0.3150 in) in diameter by 4 mm (0.1575 in) in height of RTV sealant, GM P/N 12378521 (Canadian P/N 88901148) or equivalent, on the engine front cover split lines (1).
    5. Fig 4: Identifying Left Camshaft Cover
    GM1864539Courtesy of GENERAL MOTORS CORP.
  5. Place the left camshaft cover into position onto the left cylinder head.

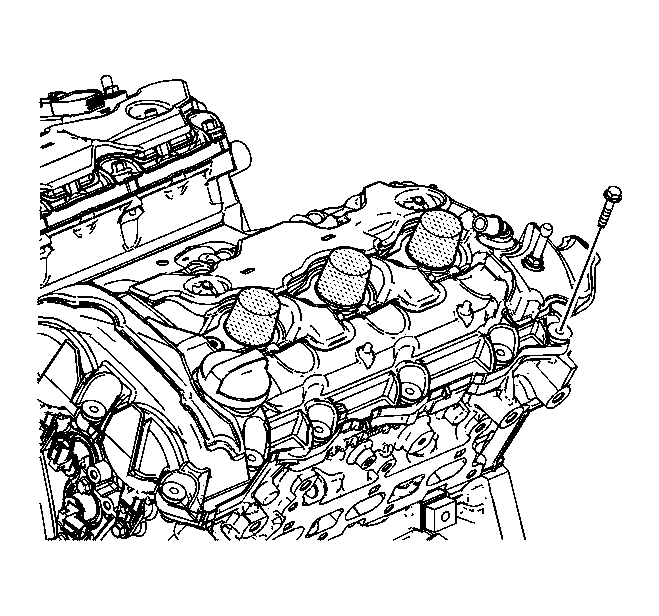

    6. Fig 5: Identifying Left Camshaft Cover Bolts
    GM1864540Courtesy of GENERAL MOTORS CORP.
  6. Loosely install the left camshaft cover bolts.
    7. Fig 6: Identifying Left Camshaft Cover Bolt Tightening Sequence
    GM1864541Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  7. Tighten the left camshaft cover bolts in the sequence shown.
    • Tighten the left camshaft cover bolts to 10 N.m (89 lb in) .
    • Tighten the left camshaft cover bolts a second pass to 10 N.m (89 lb in) .
    8. Fig 7: Identifying Spark Plug Tubes
    GM1864542Courtesy of GENERAL MOTORS CORP.
  8. Remove the EN-46101:  guide from the spark plug tubes of the left cylinder head.
    9. Fig 8: Identifying Spark Plugs
    GM1864416Courtesy of GENERAL MOTORS CORP.
  9. Install the NEW spark plugs into the left cylinder head and tighten to 20 N.m (15 lb ft).
    10. Fig 9: View Of Ignition Coils
    GM1864415Courtesy of GENERAL MOTORS CORP.
  10. Install the ignition coils.
    11. Fig 10: Identifying Ignition Coil Bolts
    GM1864414Courtesy of GENERAL MOTORS CORP.
  11. Install the ignition coil bolts and tighten to 10 N.m (89 lb in).
